01002-5734

01002-5734

Part Number	01002-5734
Manufacturer	Sensata Technologies – BEI Sensors
Other Part Numbers	1724-01002-5734-ND 1724-1219 1724-1219-ND H25E-F45-SB-2048-ABZC-28V/V-SM18-S-ND H25E-F45-SB-2048-ABZC-28V/V-SM18-S 1724-01002-5734 H25E-F45-SB-2048-ABZC-28V/V -SM18-S

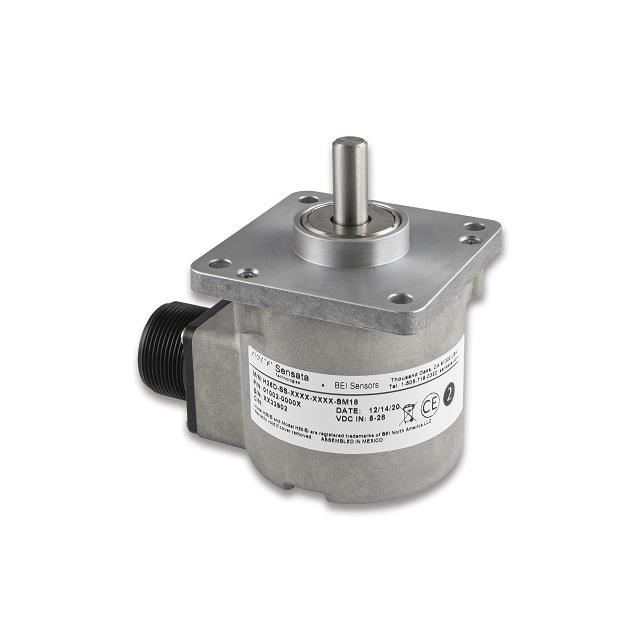

Description	ROTARY ENCODER OPTICAL 2048PPR
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		Sensors, Transducers Encoders - Industrial
Manufacturer		Sensata Technologies – BEI Sensors
Series		H25
Packaging		Box
Part Status		Active
Output Type		Quadrature with Index (Incremental)
Mounting Type		Servo Mount
Orientation		User Selectable
Termination Style		Connector
Voltage - Supply		5V ~ 28V
Encoder Type		Optical
Detent		No
Pulses per Revolution		2048
Actuator Type		Shaft
Built in Switch		No
Rotational Life (Cycles Min)		200M

Documents & Media

RESOURCE TYPE		LINK
Datasheets		01002-5734
Datasheets		H25G Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8543.70.4500
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant

In Stock: 2

Can ship immediately.
