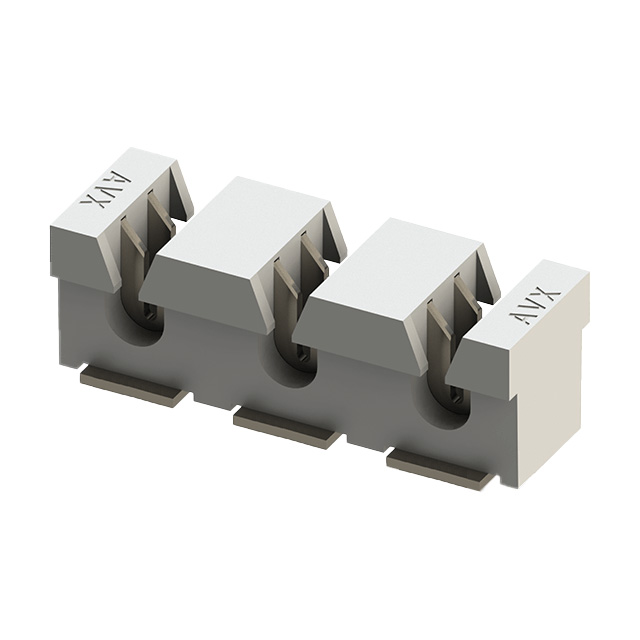

009176003011906 _ Solid State Lighting Connector Contacts_Solid State Lighting Connectors_Connectors, Interconnects

Part Number	009176003011906
Manufacturer	KYOCERA AVX
Other Part Numbers	478-009176003011906TR-ND 478-009176003011906CT-ND 478-009176003011906DKR-ND 478-009176003011906DKR 478-009176003011906TR 478-009176003011906CT
Description	3 POSITION 20 AWG STANDARD IDC C
Detailed Description	20 AWG SSL Contact, IDC Solder Surface Mount
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Solid State Lighting Connectors Solid State Lighting Connector Contacts
Manufacturer		KYOCERA AVX
Series		9176
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Connector Type		Contact, IDC
Contact Finish		Tin
Current Rating (Amps)		10A per Contact
Mounting Type		Surface Mount
Wire Gauge		20 AWG
Pitch		0.157" (4.00mm)
Style		Board to Cable/Wire
Operating Temperature		-40°C ~ 125°C
Termination		Solder
Contact Material		Phosphor Bronze
Housing Material		Polyamide (PA46), Nylon 4/6
Housing Color		White
Mating Cycles		3
Voltage Rating		300 V
Number of Positions		3

RESOURCE TYPE		LINK
Datasheets		009176003011906

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
