0001.2513.PT

0001.2513.PT

Part Number	0001.2513.PT
Manufacturer	SCHURTER
Other Part Numbers	486-1977-ND 00012513PT 486-1977 0001.2513.PT-ND

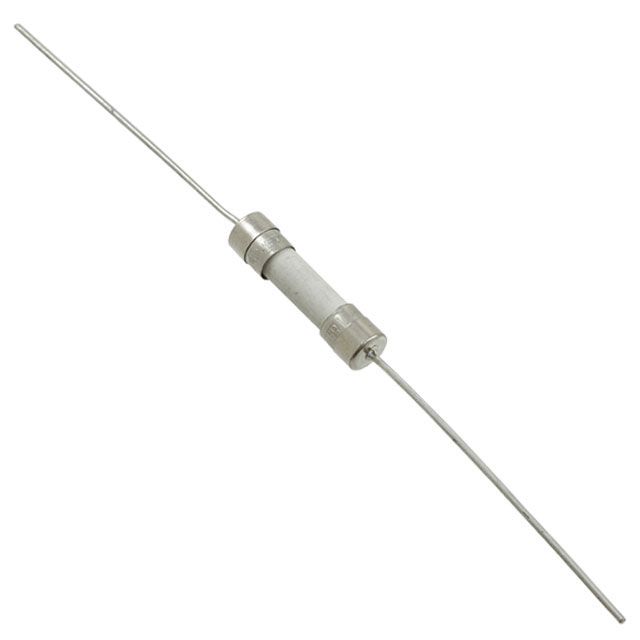

Description	FUSE CERM 8A 250VAC 150VDC 5X20
Detailed Description	8 A 250 V AC 150 V DC Fuse Cartridge, Ceramic Through Hole 5mm x 20mm (Axial)
Manufacturer Standard Lead Time	31 weeks
Datasheet	Datasheet

Product Attributes

Category		Circuit Protection Fuses
Manufacturer		SCHURTER
Series		SPT 5x20
Packaging		Bulk
Part Status		Active
Package / Case		5mm x 20mm (Axial)
Size / Dimension		0.213" Dia x 0.886" L (5.40mm x 22.50mm)
Fuse Type		Cartridge, Ceramic
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 125°C
Response Time		Slow Blow
Approval Agency		cURus
Breaking Capacity @ Rated Voltage		1kA AC, 1.5kA DC
Current Rating (Amps)		8 A
Voltage Rating - AC		250 V
Voltage Rating - DC		150 V
Melting I²t		268

Documents & Media

RESOURCE TYPE		LINK
Datasheets		0001.2513.PT
Datasheets		Label change 08-Apr-2022
Datasheets		Multiple Devices Label Change 24/Sep/2019

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.10.0040
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
