Low Power High end Bluetooth Intelligent Jumping Rope Solution
1、 Overview of the plan:
Jumping rope, as one of the lightweight, fat burning, and convenient sports, has a huge population base. According to the 2020 National Fitness Activity Survey Report, the proportion of residents aged 7 and above who regularly participate in physical exercise in China is 37.2%. Among them, skipping rope ranks 5th, 2nd, and 4th in regular exercise for young children, children and adolescents, and adult women, respectively. In terms of the proportion of sports population in our country, there is still considerable room for progress compared to developed countries in Europe and America. The rising consumption of sports goods can be seen with the naked eye. In this trend, the intelligence and refinement of intelligent jump rope are also natural.
Xinlian has delved into the intelligent sports and health equipment market, and has recently developed a Bluetooth intelligent jump rope solution. It adopts a dual Hall high-precision counting scheme, which is accurate in counting and supports WeChat mini programs, Android, and Apple apps. The product features accurate counting, APP data query, and low power consumption.
2、 Plan features:
（1）Accurate counting, sensitivity, and no misjudgment

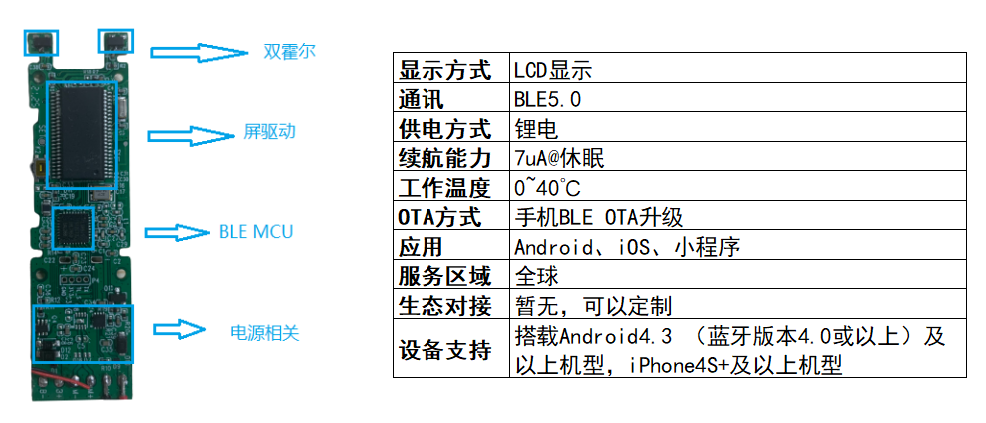

Adopting high sensitivity dual Hall sensors, combined with professional algorithms, intelligent and accurate counting, accurately identifying the jumping state, effectively avoiding false counting, not counting too much, not missing counting, good counting, suitable for exam training, competition training, and fitness exercise.
（2）Fine craftsmanship of AI intelligent chips
High precision, equipped with cutting-edge intelligent control technology, upgraded magnetic control low resistance induction counting, both forward and reverse can be counted, making counting more accurate. The inner core adopts a thickened steel wire rope body, with a smaller wind resistance coefficient, which does not float when thrown. It is paired with a PVC coated jacket, which has high toughness and is more wear-resistant.
（3）Broken code screen display supports BLE5.0
Support the conventional electronic counting model's broken code screen, and of course, LED digital tube display can also be customized according to customer needs, supporting three colors: red, blue, and white. This solution supports BLE5.0 and can reach up to 10 meters of Bluetooth jump rope in open areas.
（4）Vibration Motor Lithium Battery Range

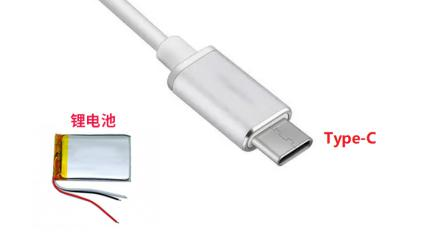

This solution adopts high-end vibration motors and TYPE-C interfaces, with high cost-effectiveness; In terms of batteries, while ensuring that the batteries can be placed properly in the casing, priority should be given to lithium batteries with higher capacity and protective plates, which can ensure that Bluetooth jump cords can be used for a longer period of time on a single charge. This solution supports 7uA sleep endurance.
（5）Customized software with diverse functions

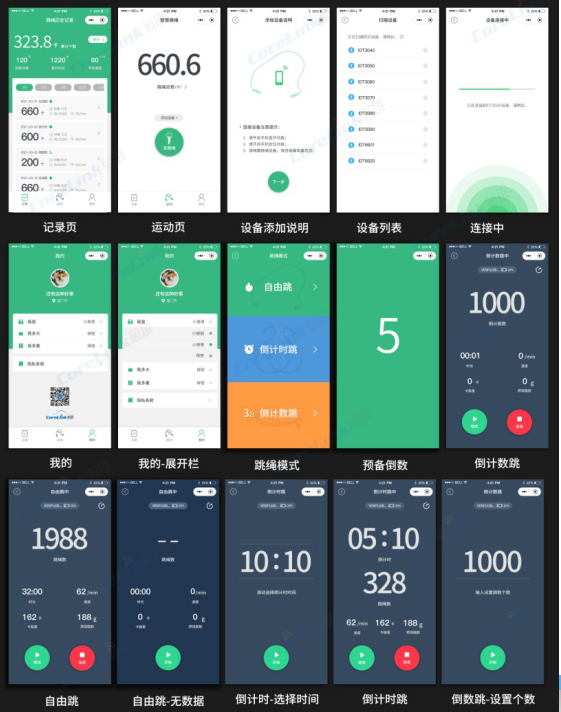

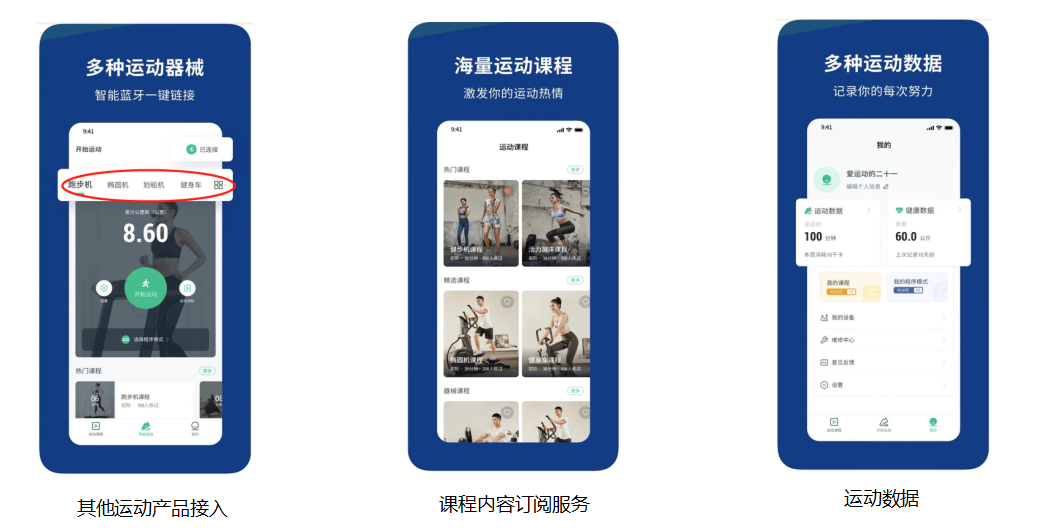

At the same time, we support WeChat mini programs, Android, and Apple apps. We serve global customers and also support overseas versions of apps to assist in launching in different national application markets; In addition, we can also customize apps according to customer requirements; If the customer has certain software development capabilities, SDK can be provided to the customer for secondary development. At present, there is no ecological integration for this plan, but it can be customized and later integrated into Huawei, Tuya, China Mobile platforms, and customer owned apps.
3、 Technical support:
We can provide comprehensive technical support services such as circuit diagrams, PCB reference board diagrams, software source codes, and configuration tables. We can also flexibly arrange technical cooperation modes based on the customer's qualifications and team configuration. The entire development cycle of the solution is 1-2 weeks, and we provide samples.
