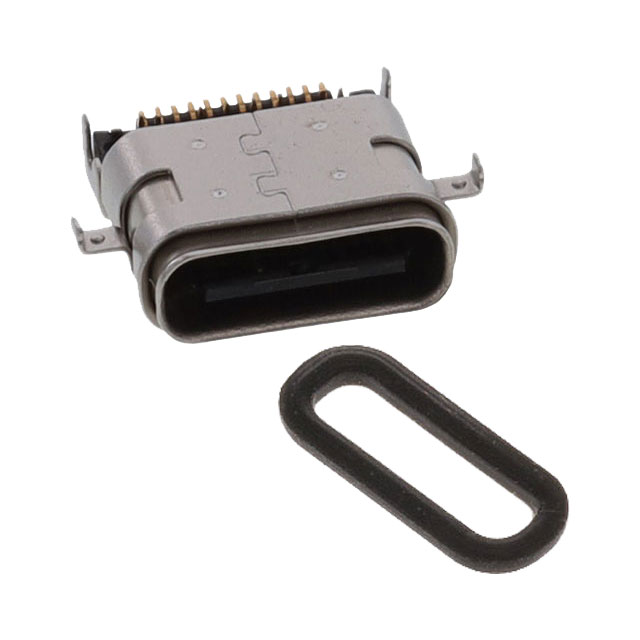

SS-52400-004

SS-52400-004

Part Number	SS-52400-004
Manufacturer	Stewart Connector
Other Part Numbers	380-SS-52400-004TR-ND 380-SS-52400-004CT-ND 380-SS-52400-004TR
Description	CONN USB 3.1 IP67 TYPE C
Detailed Description	USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Right Angle
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects USB, DVI, HDMI Connectors USB, DVI, HDMI Connector Assemblies
Manufacturer		Stewart Connector
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Number of Contacts		24
Connector Type		USB-C (USB TYPE-C)
Gender		Receptacle
Current Rating (Amps)		0.25A, 1.25A, 1.5A, 5A
Mounting Type		Surface Mount, Right Angle
Shielding		Shielded
Operating Temperature		-40°C ~ 80°C
Specifications		USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Termination		Solder
Ingress Protection		IP67 - Dust Tight, Waterproof
Mounting Feature		Horizontal
Mating Cycles		10000
Number of Ports		1

Documents & Media

RESOURCE TYPE		LINK
Datasheets		SS-52400-004
Datasheets		Bel Fuse REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1345

Can ship immediately.
