RGT50TS65DGC13 _ Single IGBTs_IGBTs_Transistors_Discrete Semiconductor Products

Part Number	RGT50TS65DGC13
Manufacturer	ROHM Semiconductor
Other Part Numbers	846-RGT50TS65DGC13-ND 846-RGT50TS65DGC13
Description	IGBT TRNCH FIELD 650V 48A TO247G
Detailed Description	IGBT Trench Field Stop 650 V 48 A 174 W Through Hole TO-247G
Manufacturer Standard Lead Time	22 weeks

Category		Discrete Semiconductor Products Transistors IGBTs Single IGBTs
Manufacturer		ROHM Semiconductor
Series
Packaging		Tube
Part Status		Active

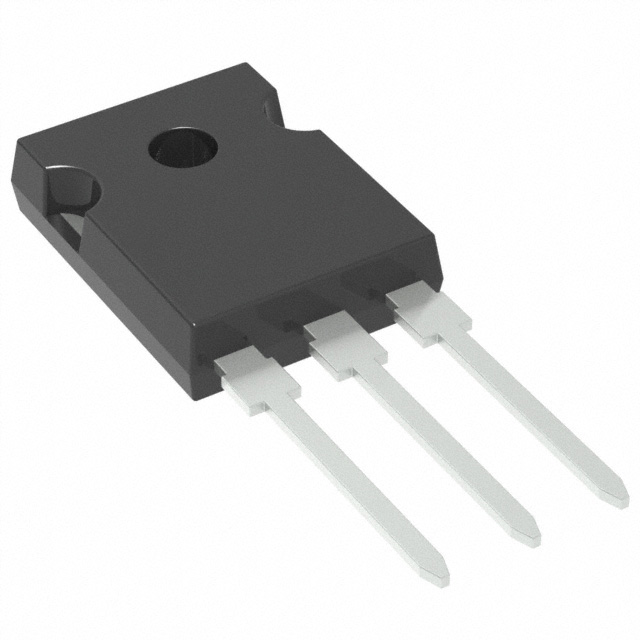

Package / Case		TO-247-3
Mounting Type		Through Hole
Operating Temperature		-40°C ~ 175°C (TJ)
Input Type		Standard
Reverse Recovery Time (trr)		58 ns
Vce(on) (Max) @ Vge, Ic		2.1V @ 15V, 25A
Supplier Device Package		TO-247G
IGBT Type		Trench Field Stop
Td (on/off) @ 25°C		27ns/88ns
Test Condition		400V, 25A, 10Ohm, 15V
Gate Charge		49 nC
Current - Collector (Ic) (Max)		48 A
Voltage - Collector Emitter Breakdown (Max)		650 V
Current - Collector Pulsed (Icm)		75 A
Power - Max		174 W

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
