RGSX5TS65EHRC11 _ Single IGBTs_IGBTs_Transistors_Discrete Semiconductor Products

Part Number	RGSX5TS65EHRC11
Manufacturer	ROHM Semiconductor
Other Part Numbers	846-RGSX5TS65EHRC11-ND 846-RGSX5TS65EHRC11
Description	IGBT TRENCH FLD 650V 114A TO247N
Detailed Description	IGBT Trench Field Stop 650 V 114 A 404 W Through Hole TO-247N
Manufacturer Standard Lead Time	22 weeks

Category		Discrete Semiconductor Products Transistors IGBTs Single IGBTs
Manufacturer		ROHM Semiconductor
Series
Packaging		Tube
Part Status		Active

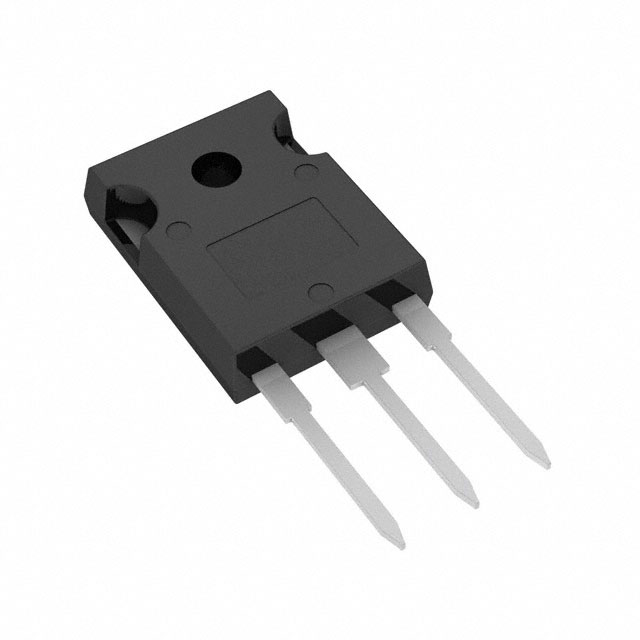

Package / Case		TO-247-3
Mounting Type		Through Hole
Operating Temperature		-40°C ~ 175°C (TJ)
Input Type		Standard
Reverse Recovery Time (trr)		116 ns
Vce(on) (Max) @ Vge, Ic		2.15V @ 15V, 75A
Supplier Device Package		TO-247N
IGBT Type		Trench Field Stop
Td (on/off) @ 25°C		43ns/113ns
Switching Energy		3.44mJ (on), 1.9mJ (off)
Test Condition		400V, 75A, 10Ohm, 15V
Gate Charge		79 nC
Current - Collector (Ic) (Max)		114 A
Voltage - Collector Emitter Breakdown (Max)		650 V
Current - Collector Pulsed (Icm)		225 A
Power - Max		404 W

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
