PLX1E820MCL1TD _ Aluminum - Polymer Capacitors_Capacitors_

+86-0755-8325-4547

PLX1E820MCL1TD

PLX1E820MCL1TD

Part Number	PLX1E820MCL1TD
Manufacturer	Nichicon
Other Part Numbers	493-4678-1-ND 493-4678-3-ND 493-4678-3 493-4678-1 493-4678-2 493-4678-2-ND

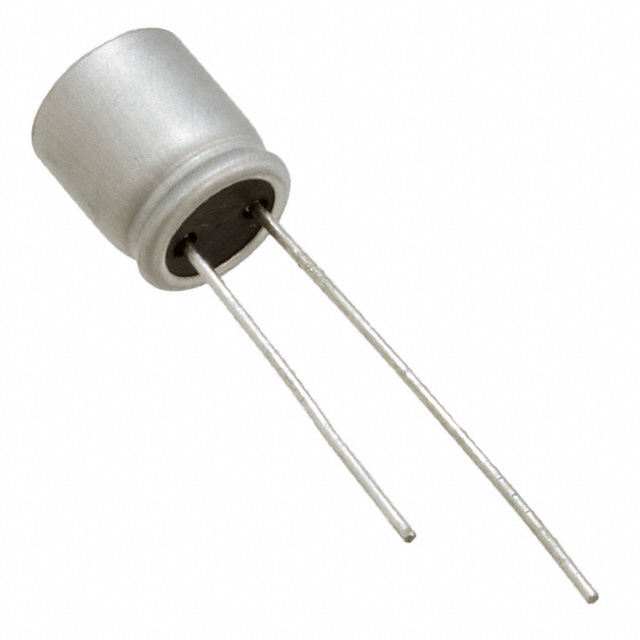

Description	CAP ALUM POLY 82UF 20% 25V T/H
Detailed Description	82 µF 25 V Aluminum - Polymer Capacitors Radial, Can 28mOhm 3000 Hrs @ 125°C
Manufacturer Standard Lead Time	22 weeks

Product Attributes

Category		Capacitors Aluminum - Polymer Capacitors
Manufacturer		Nichicon
Series		PLX
Packaging		Cut Tape (CT) Tape & Box (TB)
Part Status		Active
Tolerance		±20%
Package / Case		Radial, Can
Size / Dimension		0.315" Dia (8.00mm)
Mounting Type		Through Hole
Type		Polymer
Operating Temperature		-55°C ~ 125°C
Applications		General Purpose
Lead Spacing		0.138" (3.50mm)
ESR (Equivalent Series Resistance)		28mOhm
Lifetime @ Temp.		3000 Hrs @ 125°C
Height - Seated (Max)		0.354" (9.00mm)
Capacitance		82 µF
Voltage - Rated		25 V
Ripple Current @ High Frequency		2 A @ 100 kHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		PLX1E820MCL1TD
Datasheets		Miniature Type Taping Spec

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8532.22.0020
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 2

Can ship immediately.
