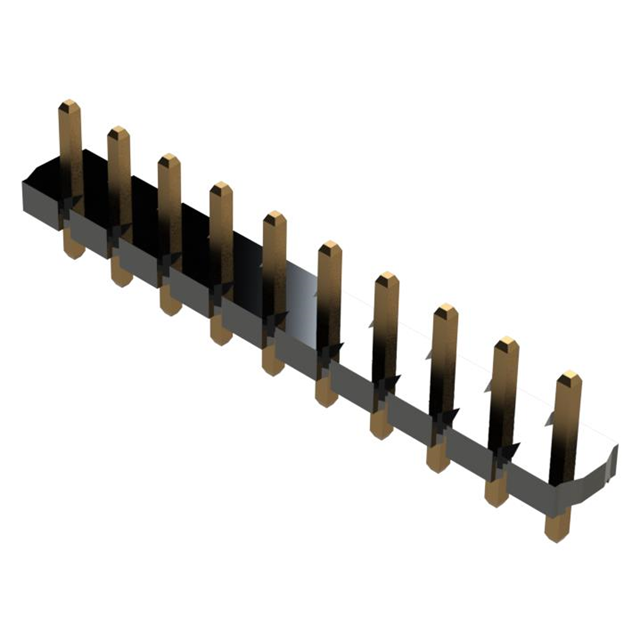

PC200S-10-S-02-T-LF _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	PC200S-10-S-02-T-LF
Manufacturer	Major League Electronics
Other Part Numbers	2611-PC200S-10-S-02-T-LF-ND 2611-PC200S-10-S-02-T-LF
Description	.200 Socket
Detailed Description	Connector Header Through Hole 10 position 0.200" (5.08mm)
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Major League Electronics
Series		PC200S-02
Packaging		Bag
Part Status		Active
Connector Type		Header
Current Rating (Amps)		7.9A
Mounting Type		Through Hole
Number of Positions		10
Style		Board to Board
Operating Temperature		-55°C ~ 105°C
Contact Type		Female Socket
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Brass
Insulation Color		Black
Pitch - Mating		0.200" (5.08mm)
Contact Finish - Mating		Tin
Contact Finish - Post		Tin
Contact Shape		Square
Contact Length - Post		0.102" (2.60mm)
Insulation Height		0.350" (8.89mm)
Insulation Material		Liquid Crystal Polymer (LCP)

RESOURCE TYPE		LINK
Datasheets		PC200S-10-S-02-T-LF

ATTRIBUTE		DESCRIPTION
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
