MAX20072ATAA/V+T _ Voltage Regulators - DC DC Switching Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	MAX20072ATAA/V+T
Manufacturer	Maxim Integrated / Analog Devices
Other Part Numbers	175-MAX20072ATAA/V+TTR-ND 175-MAX20072ATAA/V+TCT-ND 175-MAX20072ATAA/V+TDKR-ND 505-MAX20072ATAA/V+TTR-ND 175-MAX20072ATAA/V+TDKR 175-MAX20072ATAA/V+TTR-ND 175-MAX20072ATAA/V+TCT 505-MAX20072ATAA/V+TTR 175-MAX20072ATAA/V+TTR
Description	IC REG BUCK ADJ 1A 8TDFN
Detailed Description	Buck Switching Regulator IC Positive Adjustable 0.5V 1 Output 1A 8-WFDFN Exposed Pad
Manufacturer Standard Lead Time	24 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators
Manufacturer		Maxim Integrated / Analog Devices
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

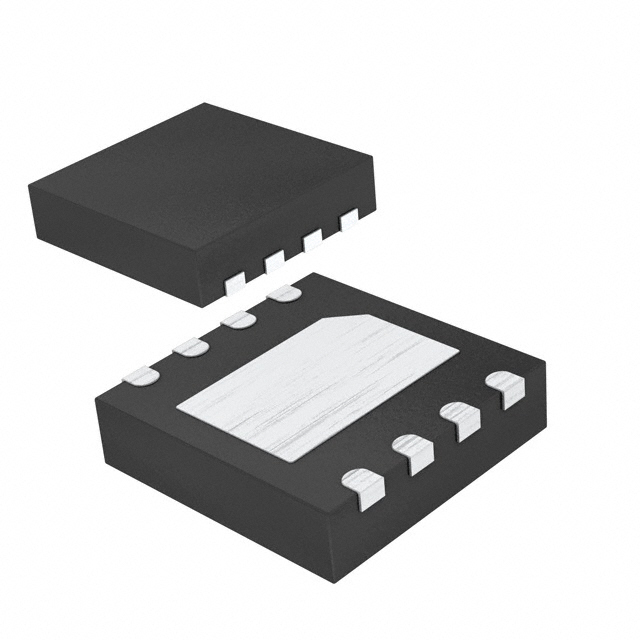

Package / Case		8-WFDFN Exposed Pad
Output Type		Adjustable
Mounting Type		Surface Mount
Number of Outputs		1
Function		Step-Down
Current - Output		1A
Operating Temperature		-40°C ~ 125°C (TA)
Output Configuration		Positive
Frequency - Switching		2.2MHz
Voltage - Input (Max)		5.5V
Topology		Buck
Supplier Device Package		8-TDFN-EP (2x2)
Synchronous Rectifier		No
Voltage - Output (Max)		5V
Voltage - Input (Min)		3V
Voltage - Output (Min/Fixed)		0.5V

RESOURCE TYPE		LINK
Datasheets		MAX20072ATAA/V+T

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
