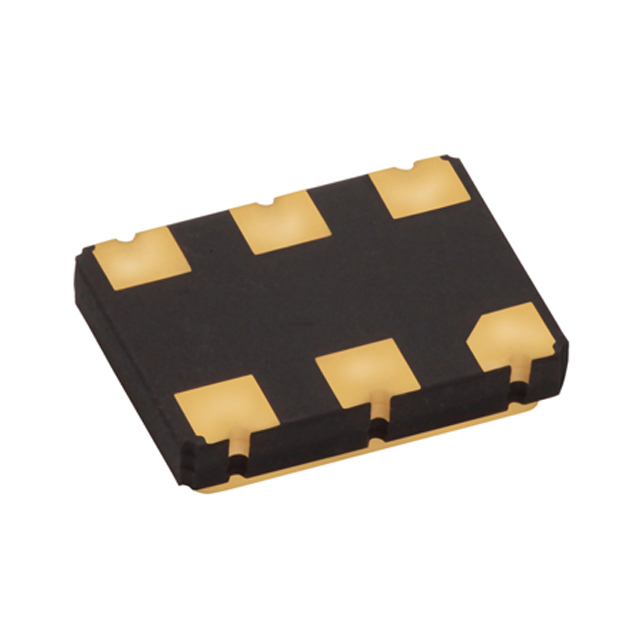

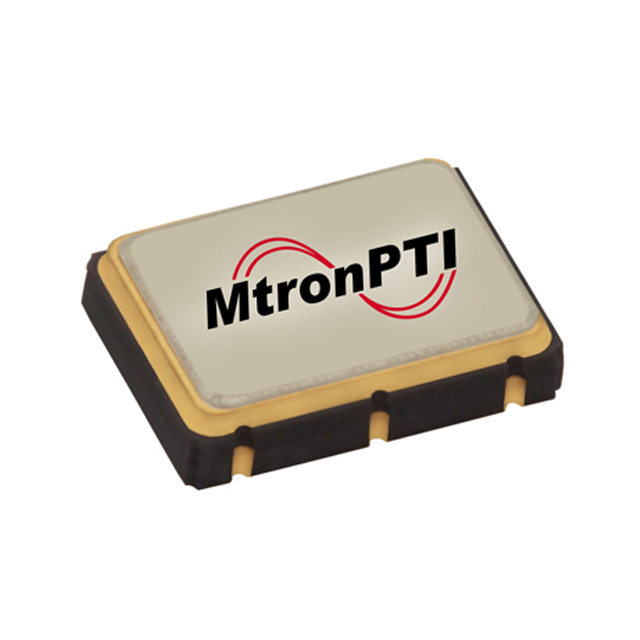

M2052KATAN 10.000000

M2052KATAN 10.000000

Part Number	M2052KATAN 10.000000
Manufacturer	MtronPTI
Other Part Numbers	3655-M2052KATAN10.000000-ND 3655-M2052KATAN10.000000
Description	5x7 mm, 3.3 Volt HCMOS/TTL High
Detailed Description	10 MHz XO (Standard) HCMOS, TTL Oscillator 3.3V Tri-State (Output Enable) 6-SMD, No Lead
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		MtronPTI
Series		M2052
Packaging		Bulk
Part Status		Active
Package / Case		6-SMD, No Lead
Size / Dimension		0.276" L x 0.197" W (7.00mm x 5.00mm)
Mounting Type		Surface Mount
Output		HCMOS, TTL
Function		Tri-State (Output Enable)
Type		XO (Standard)
Operating Temperature		-40°C ~ 200°C
Frequency Stability		±250ppm
Voltage - Supply		3.3V
Current - Supply (Max)		1.5mA (Typ)
Height - Seated (Max)		0.075" (1.90mm)
Frequency		10 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		M2052KATAN 10.000000

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.51.0000
RoHS Status		RoHS Compliant
