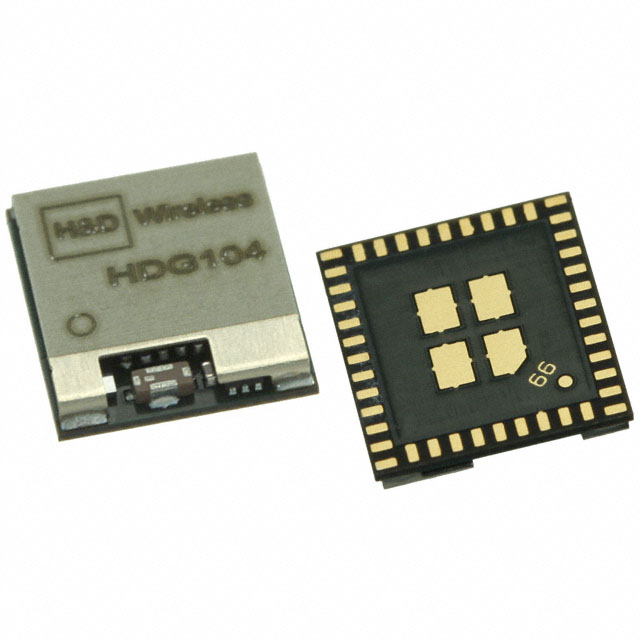

HDG104-DN-2 _ RF Transceiver ICs_RF and Wireless

Part Number	HDG104-DN-2
Manufacturer	H&D Wireless
Other Part Numbers	HDG104-DN-2TR-ND HDG104-DN-2CT-ND -HDG104-DN-2CT -HDG104-ND -HDG104-DN-2 -HDG104 -HDG104-DN-2TRINACTIVE -HDG104-DN-2CT-ND HDG104 HDG104-DN-2CT HDG104-DN-2TR HDG104DN2
Description	IC RF TXRX+MCU WIFI 44QFN
Detailed Description	IC RF TxRx + MCU WiFi 802.11b/g 2.4GHz 44-LQFN Exposed Pad Module
Datasheet	Datasheet

Category		RF and Wireless RF Transceiver ICs
Manufacturer		H&D Wireless
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		44-LQFN Exposed Pad Module
Sensitivity		-96dBm
Mounting Type		Surface Mount
Frequency		2.4GHz
Memory Size		1kB EEPROM, 160kB SRAM
Type		TxRx + MCU
Operating Temperature		-20°C ~ 70°C
Voltage - Supply		2.75V ~ 3.6V
Power - Output		17dBm
Protocol		802.11b/g
Current - Receiving		60mA
Data Rate (Max)		54Mbps
Current - Transmitting		15mA
Supplier Device Package		44-QFN SIP (7.7x7.1)
Modulation		16QAM, 64QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
RF Family/Standard		WiFi
Serial Interfaces		SDIO, SPI, UART
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK
Datasheets		HDG104 Product Flyer

ATTRIBUTE		DESCRIPTION
ECCN		5A992C
HTSUS		8517.79.0000
Moisture Sensitivity Level (MSL)		6 (Time on Label)
RoHS Status		ROHS3 Compliant
