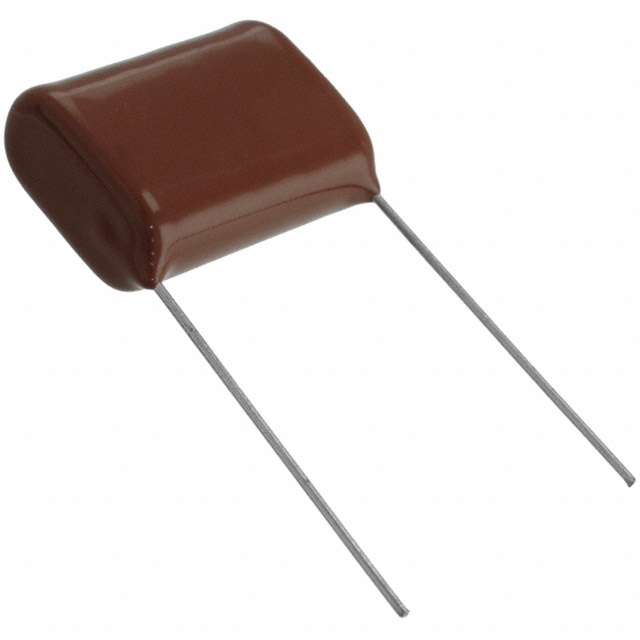

ECQ-E6684KF

ECQ-E6684KF

Part Number	ECQ-E6684KF
Manufacturer	Panasonic Electronic Components
Other Part Numbers	EF6684-ND ECQE6684KF Q3947442A EF6684 EF6684-NDR
Description	CAP FILM 0.68UF 10% 630VDC RAD
Detailed Description	0.68 µF Film Capacitor 250V 630V Polyester, Metallized Radial
Manufacturer Standard Lead Time	40 weeks
Datasheet	Datasheet

Product Attributes

Category		Capacitors Film Capacitors
Manufacturer		Panasonic Electronic Components
Series		ECQ-E(F)
Packaging		Bulk
Part Status		Active
Tolerance		±10%
Package / Case		Radial
Mounting Type		Through Hole
Operating Temperature		-40°C ~ 105°C
Applications		General Purpose
Lead Spacing		0.886" (22.50mm)
Termination		PC Pins
Dielectric Material		Polyester, Metallized
Voltage Rating - AC		250V
Voltage Rating - DC		630V
Height - Seated (Max)		0.866" (22.00mm)
Capacitance		0.68 µF
Size / Dimension		1.024" L x 0.453" W (26.00mm x 11.50mm)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		AC/DC Voltage Alternating Current Chart
Datasheets		Multiple Devices Location 22/Feb/2020
Datasheets		ECQ-EF Series Side 1
Datasheets		ECQ-EF Series Side 2

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8532.25.0010
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 879

Can ship immediately.
