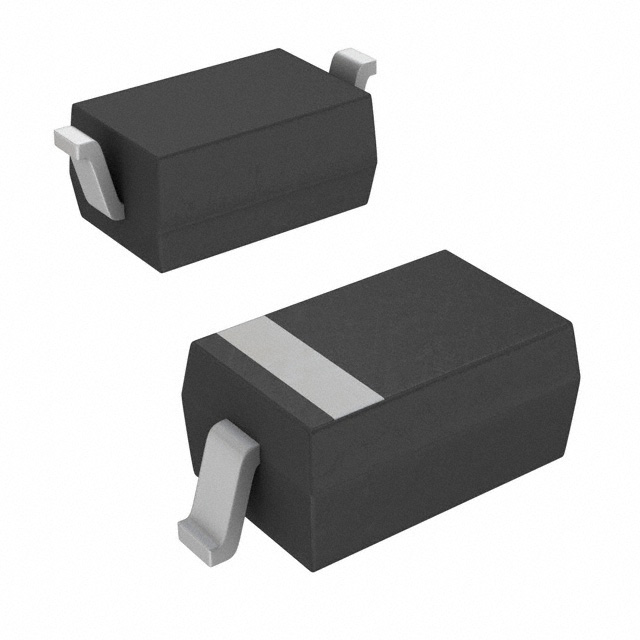

BZT52C39W

BZT52C39W

Part Number	BZT52C39W
Manufacturer	YAGEO
Other Part Numbers	13-BZT52C39WTR-ND 13-BZT52C39WCT-ND 13-BZT52C39WDKR-ND 13-BZT52C39WTR 13-BZT52C39WDKR 13-BZT52C39WCT
Description	ZENER SOD-123 39V 500MW
Detailed Description	Zener Diode 39 V 500 mW ±5.13% Surface Mount SOD-123
Manufacturer Standard Lead Time	25 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Diodes Zener Single Zener Diodes
Manufacturer		YAGEO
Series		BZT52CXXW
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±5.13%
Package / Case		SOD-123F
Mounting Type		Surface Mount
Operating Temperature		150°C (TJ)
Voltage - Zener (Nom) (Vz)		39 V
Impedance (Max) (Zzt)		130 Ohms
Supplier Device Package		SOD-123
Power - Max		500 mW
Voltage - Forward (Vf) (Max) @ If		900 mV @ 10 mA
Current - Reverse Leakage @ Vr		100 nA @ 27.3 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		BZT52C39W

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

In Stock: 3000

Can ship immediately.
