929870-01-20-RA

929870-01-20-RA

Part Number
929870-01-20-RA
Manufacturer 3M
Other Part Numbers
929870-01-20-RA-ND
7010396728
51111665534
80000909392
5111166553
9298700120RA
05111166553

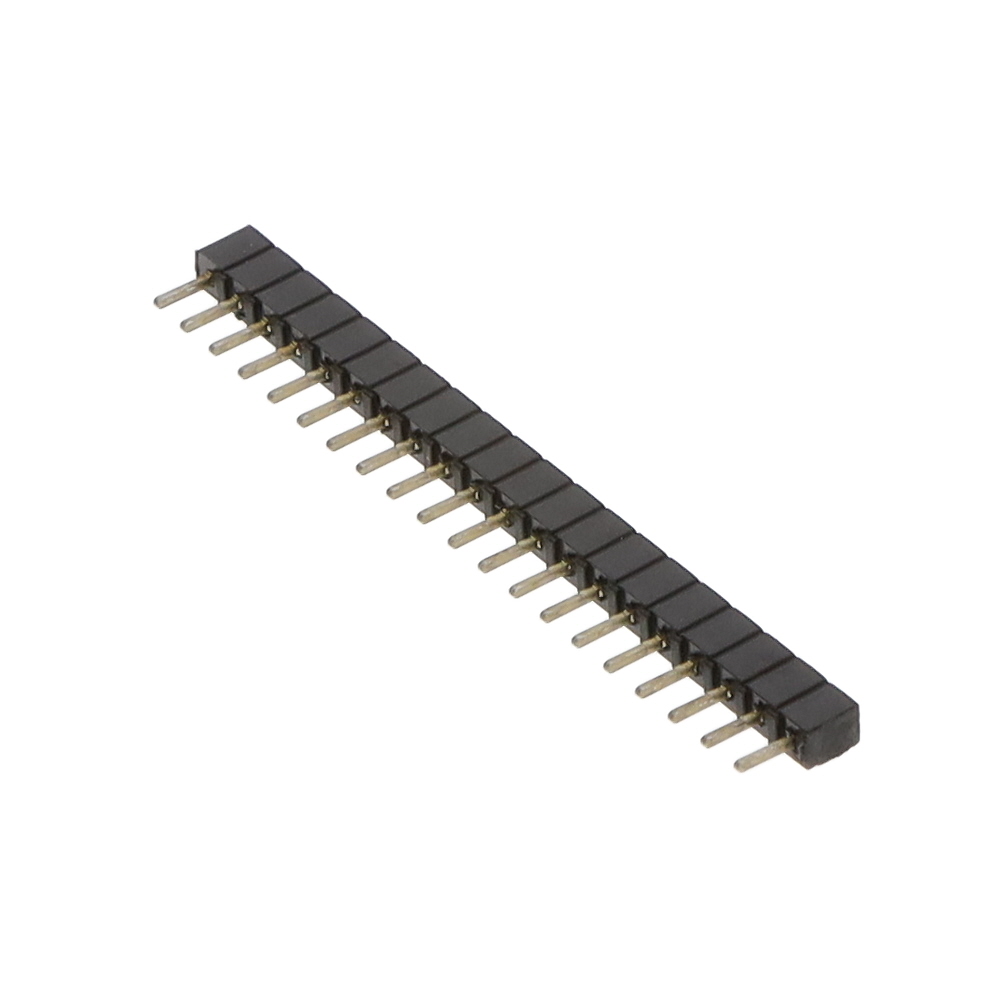

Description CONN RCPT 20POS 0.1 GOLD PCB
Detailed Description 20 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Manufacturer Standard Lead Time 26 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer 3M
Series
929
Packaging
Bulk
Part Status Active
Connector Type Receptacle
Voltage Rating 1000V
Current Rating (Amps) 1A
Mounting Type Through Hole
Number of Positions 20
Style Board to Board
Operating Temperature -40°C ~ 105°C
Contact Type Forked
Fastening Type Push-Pull
Number of Positions Loaded All
Termination Solder
Material Flammability Rating UL94 V-0
Contact Material Copper Alloy
Insulation Color Black
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Shape Square
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.150" (3.81mm)
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Number of Rows 1

Documents & Media

RESOURCE TYPE LINK
Datasheets 929870-01-20-RA

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.69.4040
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS Compliant

In Stock: 279

Can ship immediately.
