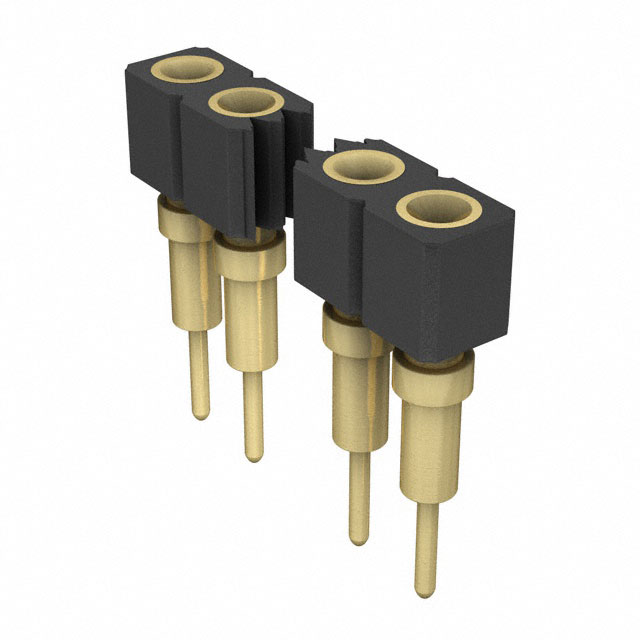

712-87-114-41-001101

712-87-114-41-001101

Part Number	712-87-114-41-001101
Manufacturer	Preci-Dip
Other Part Numbers	712-87-114-41-001101-ND
Description	CONN PIN RCPT .016-.022 SOLDER
Detailed Description	Pin Receptacle Connector 0.016" ~ 0.022" (0.41mm ~ 0.56mm) Standard Tail Solder
Manufacturer Standard Lead Time	11 weeks

Product Attributes

Category		Connectors, Interconnects Terminals PC Pin Receptacles, Socket Connectors
Manufacturer		Preci-Dip
Series		712
Packaging		Strip
Part Status		Active
Contact Finish		Gold
Operating Temperature		-55°C ~ 125°C
Flange Diameter		0.072" (1.83mm)
Length - Overall		0.290" (7.37mm)
Termination		Solder
Contact Finish Thickness		Flash
Contact Material		Beryllium Copper
Tail Type		Standard Tail
Accepts Pin Diameter		0.016" ~ 0.022" (0.41mm ~ 0.56mm)
Tail Diameter		0.020" (0.51mm)
Socket Depth		0.146" (3.71mm)
Insertion Force		2.00N

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
