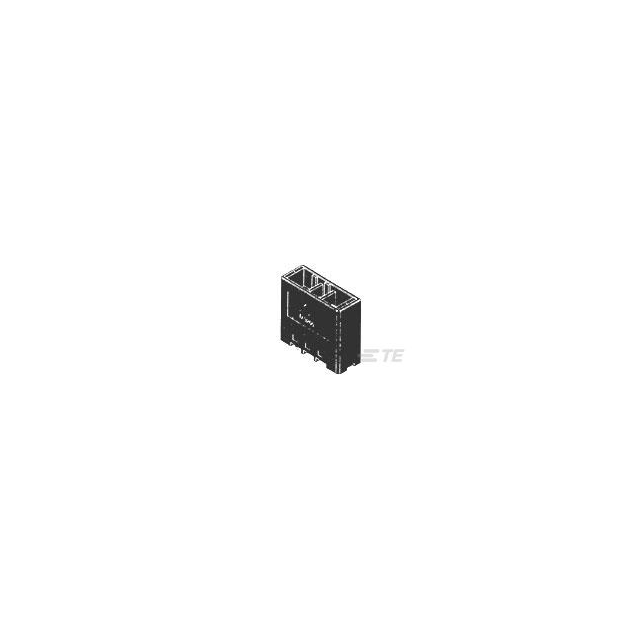

2-1747277-2 _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	2-1747277-2
Manufacturer	TE Connectivity
Other Part Numbers	2266-2-1747277-2-ND 2266-2-1747277-2
Description	DYNAMIC D4200 V-HDR ASSY 2P/Y
Detailed Description	Connector Header Through Hole 2 position 0.250" (6.35mm)
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		TE Connectivity
Series
Packaging		Box
Part Status		Active
Features		Board Lock
Connector Type		Header
Voltage Rating		600VAC/DC
Current Rating (Amps)		24A
Mounting Type		Through Hole
Number of Positions		2
Number of Rows		1
Style		Board to Board or Cable
Operating Temperature		-55°C ~ 105°C
Contact Type		Male Pin
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Insulation Color		Black
Pitch - Mating		0.250" (6.35mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		15.0µin (0.38µm)
Contact Finish - Post		Tin
Contact Finish Thickness - Post		78.7µin (2.00µm)
Contact Shape		Square
Contact Length - Post		0.150" (3.81mm)
Insulation Height		0.937" (23.80mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Thermoplastic, Glass Filled

RESOURCE TYPE		LINK
Datasheets		2-1747277-2

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH info available upon request
RoHS Status		RoHS non-compliant
