142-0594-601 _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	142-0594-601
Manufacturer	Cinch Connectivity Solutions Johnson
Other Part Numbers	24-142-0594-601-ND 24-142-0594-601

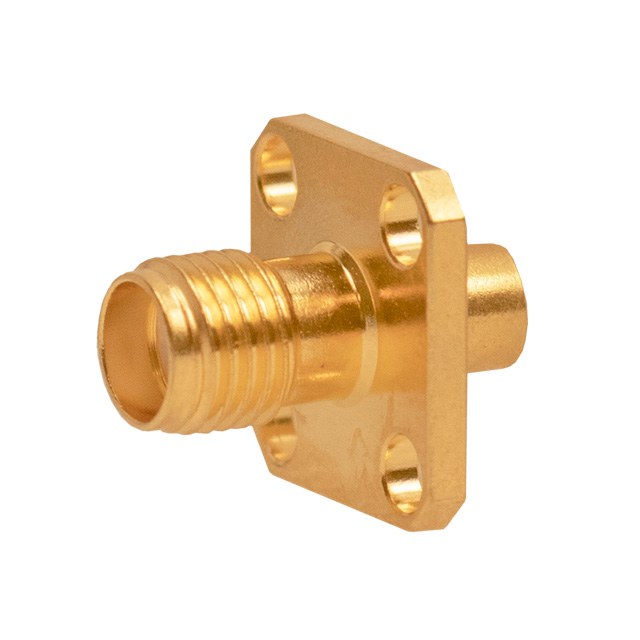

Description	SMA JACK ASSEMBLY, 4 HOLE FLANGE
Detailed Description	SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Cinch Connectivity Solutions Johnson
Series
Packaging		Bag
Part Status		Active
Connector Type		Jack, Female Socket
Contact Termination		Solder
Impedance		50 Ohms
Mounting Type		Panel Mount
Cable Group		RG-402 (.141" Semi Rigid)
Operating Temperature		-65°C ~ 165°C
Fastening Type		Threaded
Connector Style		SMA
Dielectric Material		Polytetrafluoroethylene (PTFE)
Mounting Feature		Flange
Body Material		Brass
Housing Color		Gold
Mating Cycles		500
Shield Termination		Solder
Center Contact Material		Beryllium Copper
Body Finish		Gold
Center Contact Plating		Gold
Frequency - Max		18 GHz
Number of Ports		1
Voltage Rating		500 V

RESOURCE TYPE		LINK
Datasheets		142-0594-601

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
