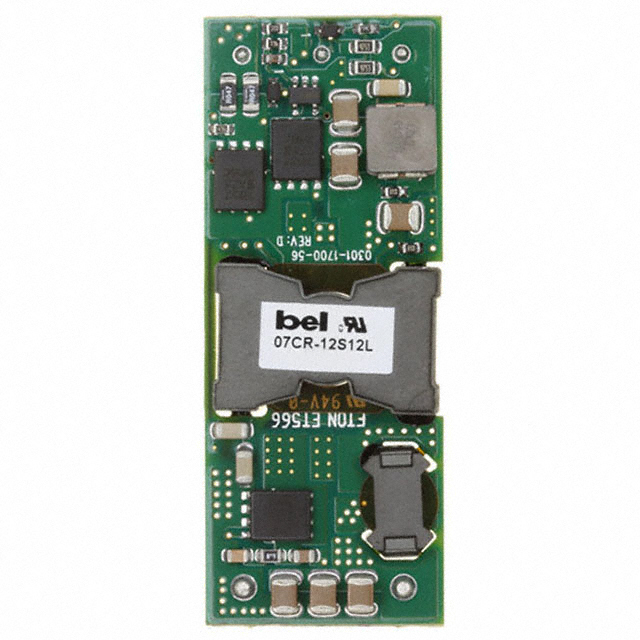

Part Number |
07CR-12S12LG
|
---|---|
Manufacturer | Bel Fuse, Inc. |
Other Part Numbers |
507-1121-ND
507-1121
|
Description | DC DC CONVERTER 12V 140W |
Detailed Description | Isolated Module DC DC Converter 1 Output 12V 12A 36V - 60V Input |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Bel Fuse, Inc. | |
Series |
07CR Cimarron (140W)
|
|
Packaging |
Tray
|
|
Part Status | Obsolete | |
Features | Remote On/Off, OCP, OTP, UVLO | |
Package / Case | 5-DIP Module, 1/8 Brick | |
Size / Dimension | 2.30" L x 0.90" W x 0.41" H (58.4mm x 22.9mm x 10.4mm) | |
Mounting Type | Through Hole | |
Type | Isolated Module | |
Operating Temperature | -40°C ~ 85°C | |
Applications | ITE (Commercial) | |
Voltage - Input (Max) | 60V | |
Efficiency | 95% | |
Current - Output (Max) | 12A | |
Voltage - Input (Min) | 36V | |
Voltage - Output 1 | 12V | |
Control Features | Enable, Active Low | |
Power (Watts) | 140 W | |
Number of Outputs | 1 | |
Voltage - Isolation | 1.5 kV |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | RoHS Cert Bel Fuse | |
Datasheets | Bel Power Solutions REACH | |
Datasheets | SRSB, 07CR,0RCY Series |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8504.40.9580 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | RoHS non-compliant |
