Wireless Charging Coils

Mfr Part #	Quantity	Price	Series	Package	Product Status	Tolerance	Inductance	Size / Dimension	Current Rating (Amps)	Function	Type	Operating Temperature	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Current - Saturation (Isat)
STX555504100KMPA2 TX 1 COIL 1 LAYER 10UH 6000MA Superworld Electronics Datasheet	9 In Stock	1 : $4.94 10 : $41.40 25 : $94.50 50 : $162.00 100 : $297.00 250 : $720.00 500 : $1,395.00 1,000 : $2,610.00 2,500 : $6,300.00 Bulk	STX	Bulk	Active	±10%	10µH	2.17" L x 2.17" W x 0.12" H (55.0mm x 55.0mm x 3.0mm)	6A	Transmitter	1 Coil, 1 Layer	-40°C ~ 85°C	80mOhm Max	-	-	-
SCT50046R3KA11D TX 1 COIL 2 LAYER 6.3UH 10000MA Superworld Electronics Datasheet	10 In Stock	1 : $4.67 10 : $39.00 25 : $89.00 50 : $152.50 100 : $280.00 250 : $677.50 500 : $1,315.00 1,000 : $2,460.00 2,500 : $5,950.00 Bag	SCT	Bag	Active	±10%	6.3µH	1.97" Dia x 0.16" H (50.0mm x 4.0mm)	10A	Transmitter	1 Coil, 1 Layer	-40°C ~ 85°C	25mOhm Max	-	-	-
SRX2939018R6JB RX 1 COIL 2 LAYER 8.6UH 2400MA Superworld Electronics Datasheet	5 In Stock	1 : $2.97 10 : $25.20 25 : $58.25 50 : $104.00 100 : $173.00 250 : $420.00 500 : $790.00 1,000 : $1,480.00 2,500 : $3,600.00 Bag	SRX	Bag	Active	±5%	8.6µH	1.52" L x 1.20" W x 0.04" H (38.5mm x 30.5mm x 1.1mm)	2.4A	Receiver	1 Coil, 1 Layer	-40°C ~ 85°C	165mOhm Max	-	-	-
SRX324501140KS RX 1 COIL 1 LAYER 14UH 1200MA Superworld Electronics Datasheet	10 In Stock	1 : $2.83 10 : $23.70 25 : $54.00 50 : $92.50 100 : $170.00 250 : $412.50 500 : $800.00 1,000 : $1,490.00 2,500 : $3,600.00 Bag	SRX	Bag	Active	±10%	14µH	1.77" L x 1.26" W x 0.07" H (45.0mm x 32.0mm x 1.7mm)	1.2A	Receiver	1 Coil, 1 Layer	-40°C ~ 85°C	355mOhm Max	-	-	-
STX5050046R3KA11D TX 1 COIL 2 LAYER 6.3UH 10000MA Superworld Electronics Datasheet	10 In Stock	1 : $4.89 10 : $40.90 25 : $93.25 50 : $160.00 100 : $293.00 250 : $710.00 500 : $1,380.00 1,000 : $2,580.00 2,500 : $6,225.00 Bulk	STX	Bulk	Active	±10%	6.3µH	1.97" L x 1.97" W x 0.16" H (50.0mm x 50.0mm x 4.0mm)	10A	Transmitter	1 Coil, 1 Layer	-40°C ~ 85°C	25mOhm Max	-	-	-
SCT50036R3KA11S TX 1 COIL 1 LAYER 6.3UH 5000MA Superworld Electronics Datasheet	10 In Stock	1 : $2.78 10 : $23.20 25 : $53.00 50 : $91.00 100 : $167.00 250 : $405.00 500 : $785.00 1,000 : $1,460.00 2,500 : $3,525.00 Bag	SCT	Bag	Active	±10%	6.3µH	1.97" Dia x 0.12" H (50.0mm x 3.0mm)	5A	Transmitter	1 Coil, 1 Layer	-40°C ~ 85°C	45mOhm Max	-	-	-
SRX324801120KBA RX 1 COIL 2 LAYER 12UH 3000MA Superworld Electronics Datasheet	9 In Stock	1 : $2.91 10 : $24.70 25 : $57.00 50 : $102.00 100 : $170.00 250 : $412.50 500 : $775.00 1,000 : $1,450.00 2,500 : $3,525.00 Bulk	SRX	Bulk	Active	±10%	12µH	1.89" L x 1.26" W x 0.06" H (48.0mm x 32.0mm x 1.6mm)	3A	Receiver	1 Coil, 1 Layer	-40°C ~ 85°C	200mOhm Max	-	-	-
SCT55048R9KMPA4 TX 1 COIL 1 LAYER 8.9UH 6000MA Superworld Electronics Datasheet	5 In Stock	1 : $3.50 10 : $29.30 25 : $66.75 50 : $114.50 100 : $210.00 250 : $510.00 500 : $985.00 1,000 : $1,850.00 2,500 : $4,450.00 Bag	SCT	Bag	Active	±10%	8.9µH	2.17" Dia x 0.16" H (55.0mm x 4.0mm)	6A	Transmitter	1 Coil, 1 Layer	-40°C ~ 85°C	55mOhm Max	-	-	-

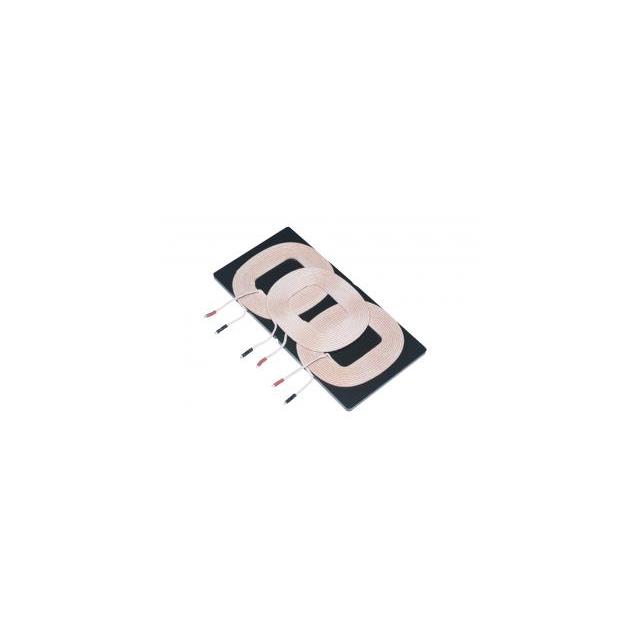

STX106530612R5KT 3 COIL 1 LAYER 12.5UH, 11.5UH, 1 Superworld Electronics Datasheet	8 In Stock	1 : $9.94 10 : $85.70 25 : $198.75 50 : $385.00 100 : $733.00 250 : $1,802.50 500 : $3,480.00 1,000 : $6,610.00 Bulk	STX	Bulk	Active	±10%	12.5µH, 11.5µH, 12.5µH	4.17" L x 2.09" W x 0.24" H (106.0mm x 53.0mm x 6.0mm)	6.5A	Transmitter	3 Coil, 1 Layer	-40°C ~ 85°C	80mOhm Max	-	-	-
STX5050036R3KA11S TX 1 COIL 1 LAYER 6.3UH 5000MA Superworld Electronics Datasheet	0 In Stock	1 : $3.11 10 : $26.00 25 : $59.50 50 : $102.00 100 : $187.00 250 : $452.50 500 : $875.00 1,000 : $1,640.00 2,500 : $3,950.00 Bulk	STX	Bulk	Active	±10%	6.3µH	1.97" L x 1.97" W x 0.12" H (50.0mm x 50.0mm x 3.0mm)	5A	Transmitter	1 Coil, 1 Layer	-40°C ~ 85°C	45mOhm Max	-	-	-
