Transistor, Photovoltaic Output Optoisolators

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Output Type

Darlington

Darlington with Base

MOSFET

Photovoltaic

Photovoltaic, Linearized

Transistor

Transistor, Linearized

Transistor with Base

Mounting Type

DIN Rail

Surface Mount

Surface Mount, Butt Joint

Through Hole

Input Type

AC, DC

Grade

Automotive

Number of Channels

Qualification

AEC-Q100

AEC-Q101

AEC-Q102

Mfr Part #	Quantity	Price	Package	Product Status	Package / Case	Output Type	Mounting Type	Operating Temperature	Voltage - Forward (Vf) (Typ)	Input Type	Current - Output / Channel	Voltage - Isolation	Current Transfer Ratio (Min)	Vce Saturation (Max)	Current Transfer Ratio (Max)	Supplier Device Package	Voltage - Output (Max)	Turn On / Turn Off Time (Typ)	Rise / Fall Time (Typ)	Grade	Number of Channels	Current - DC Forward (If) (Max)	Qualification

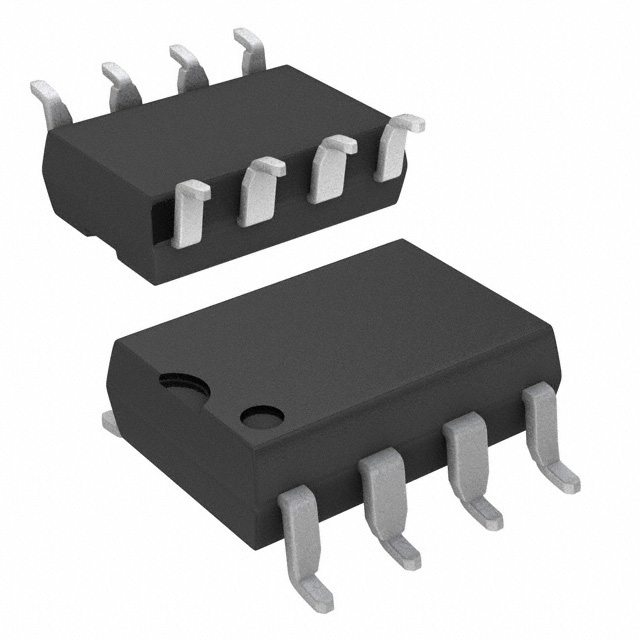

HCPL-250L-560 OPTOISO 3.75KV TRANS W/BASE 8SMD Broadcom Datasheet	0 In Stock	Discontinued	Tape & Reel (TR)	Discontinued	8-SMD, Gull Wing	Transistor with Base	Surface Mount	-55°C ~ 100°C	1.5V	DC	8mA	3750Vrms	19% @ 16mA	-	50% @ 16mA	8-DIP Gull Wing	7V	200ns, 600ns	-	-	1	25 mA	-
HCPL-M452#500 OPTOISO 3.75KV TRANSISTOR 6SOIC Broadcom Datasheet	0 In Stock	Discontinued	Tape & Reel (TR)	Discontinued	6-SOIC (0.173", 4.40mm Width), 5 Leads	Transistor	Surface Mount	-55°C ~ 100°C	1.5V	DC	8mA	3750Vrms	20% @ 16mA	-	50% @ 16mA	5-SO	20V	200ns, 600ns	-	-	1	25 mA	-
HCPL-2530#520 OPTOISO 5KV 2CH TRANSISTOR 8SMD Broadcom Datasheet	0 In Stock	Discontinued	Tape & Reel (TR)	Discontinued	8-SMD, Gull Wing	Transistor	Surface Mount	-55°C ~ 100°C	1.5V	DC	8mA	5000Vrms	7% @ 16mA	-	50% @ 16mA	8-SMD	20V	200ns, 1.3µs	-	-	2	25 mA	-
HCPL-2731#520 OPTOISOLTR 5KV 2CH DARL 8-DIP GW Broadcom Datasheet	0 In Stock	Discontinued	Tape & Reel (TR)	Discontinued	8-SMD, Gull Wing	Darlington	Surface Mount	0°C ~ 70°C	1.4V	DC	60mA	5000Vrms	500% @ 1.6mA	100mV	2600% @ 1.6mA	8-DIP Gull Wing	18V	5µs, 10µs	-	-	2	12 mA	-
HCPL-0370-500 OPTOISO 3.75KV DARLINGTON 8-SO Broadcom Datasheet	0 In Stock	Discontinued	Tape & Reel (TR)	Discontinued	8-SOIC (0.154", 3.90mm Width)	Darlington	Surface Mount	-40°C ~ 85°C	-	AC, DC	30mA	3750Vrms	-	-	-	8-SO	20V	4µs, 10µs	20µs, 0.3µs	-	1	-	-
HCPL-2503#300 OPTOISOLTR 3.75KV TRANS 8-DIP GW Broadcom Datasheet	0 In Stock	Discontinued	Tube	Discontinued	8-SMD, Gull Wing	Transistor with Base	Surface Mount	-55°C ~ 100°C	1.5V	DC	8mA	3750Vrms	15% @ 8mA	-	-	8-DIP Gull Wing	7V	1µs, 1.5µs	-	-	1	25 mA	-
HCPL-2502#020 OPTOISO 5KV TRANS W/BASE 8DIP Broadcom Datasheet	0 In Stock	Discontinued	Tube	Discontinued	8-DIP (0.300", 7.62mm)	Transistor with Base	Through Hole	-55°C ~ 100°C	1.5V	DC	8mA	5000Vrms	15% @ 16mA	-	22% @ 16mA	8-DIP	20V	200ns, 600ns	-	-	1	25 mA	-
HCPL-4562#020 OPTOISO 5KV TRANS W/BASE 8DIP Broadcom Datasheet	0 In Stock	Discontinued	Tube	Discontinued	8-DIP (0.300", 7.62mm)	Transistor with Base	Through Hole	-40°C ~ 85°C	1.3V	DC	8mA	5000Vrms	-	-	-	8-DIP	20V	-	-	-	1	12 mA	-
HCPL-2730#320 OPTOISOLTR 5KV 2CH DARL 8-DIP GW Broadcom Datasheet	0 In Stock	Discontinued	Tube	Discontinued	8-SMD, Gull Wing	Darlington	Surface Mount	0°C ~ 70°C	1.4V	DC	60mA	5000Vrms	300% @ 1.6mA	100mV	2600% @ 1.6mA	8-DIP Gull Wing	7V	5µs, 10µs	-	-	2	12 mA	-
HCPL-3700-320 OPTOISO 5KV DARL 8-DIP GULL WING Broadcom Datasheet	0 In Stock	Discontinued	Tube	Discontinued	8-SMD, Gull Wing	Darlington	Surface Mount	-40°C ~ 85°C	-	AC, DC	30mA	5000Vrms	-	-	-	8-DIP Gull Wing	20V	4µs, 10µs	20µs, 0.3µs	-	1	-	-
