Transistor, Photovoltaic Output Optoisolators

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Output Type

Darlington

Darlington with Base

MOSFET

Photovoltaic

Photovoltaic, Linearized

Transistor

Transistor, Linearized

Transistor with Base

Mounting Type

DIN Rail

Surface Mount

Surface Mount, Butt Joint

Through Hole

Input Type

AC, DC

Grade

Automotive

Number of Channels

Qualification

AEC-Q100

AEC-Q101

AEC-Q102

Mfr Part #	Quantity	Price	Package	Product Status	Package / Case	Output Type	Mounting Type	Operating Temperature	Voltage - Forward (Vf) (Typ)	Input Type	Current - Output / Channel	Voltage - Isolation	Current Transfer Ratio (Min)	Vce Saturation (Max)	Current Transfer Ratio (Max)	Supplier Device Package	Voltage - Output (Max)	Turn On / Turn Off Time (Typ)	Rise / Fall Time (Typ)	Grade	Number of Channels	Current - DC Forward (If) (Max)	Qualification

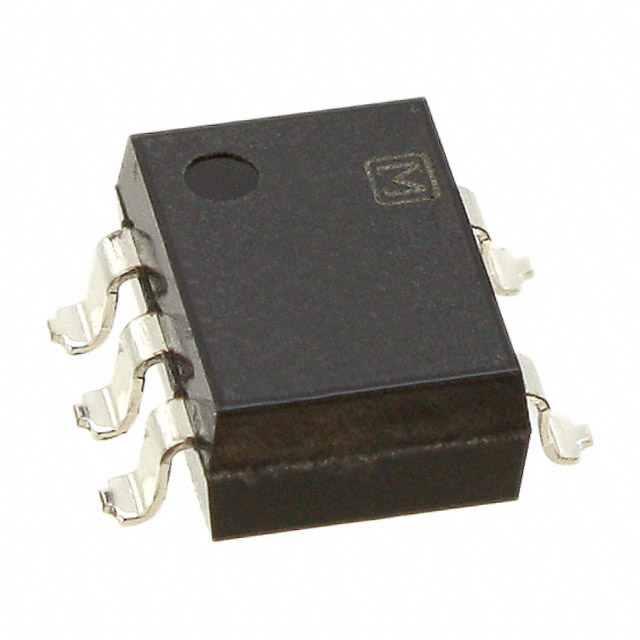

APV1122A OPTOISOLTR 5KV PHVOLT 6-DIP SMD Panasonic Electric Works Datasheet	435 In Stock	1 : $5.04 50 : $178.00 100 : $292.00 500 : $1,230.00 1,000 : $2,260.00 2,000 : $4,320.00 Tube	Tube	Active	6-SMD (5 Leads), Gull Wing	Photovoltaic	Surface Mount	-40°C ~ 85°C	1.15V	DC	14µA	5000Vrms	-	-	-	6-DIP SMD	8.7V	400µs, 100µs	-	-	1	50 mA	-

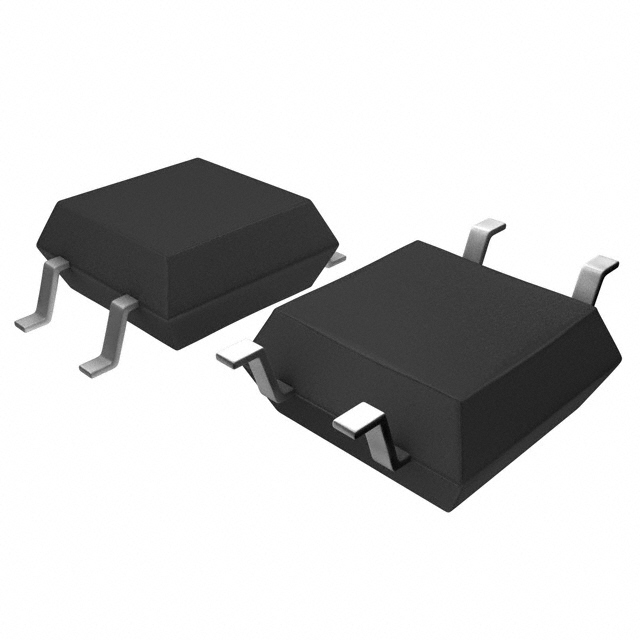

APV2121S OPTOISOLATOR 2.5KV PHVOLT 4SMD Panasonic Electric Works Datasheet	1,269 In Stock	1 : $2.17 10 : $14.50 100 : $112.00 500 : $505.00 1,000 : $870.00 2,000 : $1,640.00 5,000 : $4,000.00 10,000 : $7,900.00 Tube	Tube	Active	4-SMD, Gull Wing	Photovoltaic	Surface Mount	-40°C ~ 85°C	1.15V	DC	8µA	2500Vrms	-	-	-	4-SOP	8.2V	800µs, 100µs	-	-	1	50 mA	-

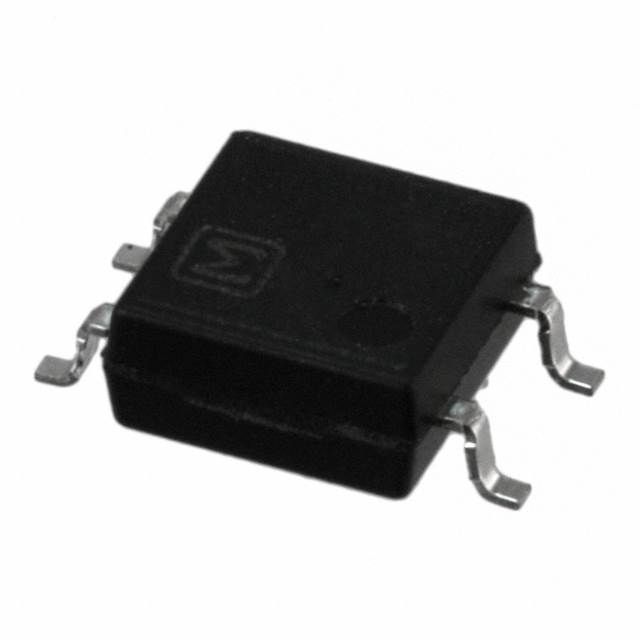

APV1121S OPTOISO 2.5KV PHOTOVOLTAIC 4-SOP Panasonic Electric Works Datasheet	1,082 In Stock	1 : $3.03 10 : $21.40 100 : $175.00 500 : $740.00 1,000 : $1,360.00 2,000 : $2,600.00 5,000 : $6,400.00 Tube	Tube	Active	4-SMD, Gull Wing	Photovoltaic	Surface Mount	-40°C ~ 85°C	1.15V	DC	14µA	2500Vrms	-	-	-	4-SOP	8.7V	400µs, 100µs	-	-	1	50 mA	-

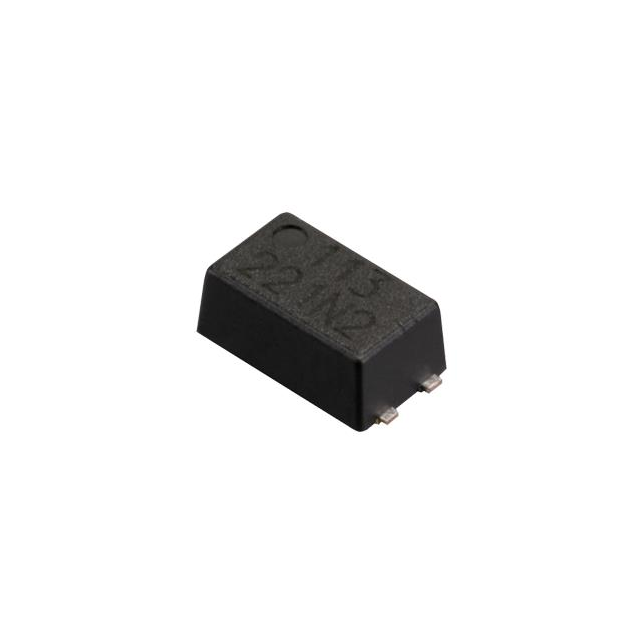

APV1111GVY MOSFET DRIVER 8.5V 45UA SSOP Panasonic Electric Works Datasheet	1,946 In Stock	3,500 : $7,980.00 Tape & Reel (TR)	Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD (0.175", 4.45mm)	Photovoltaic	Surface Mount	-40°C ~ 85°C	1.47V	DC	-	1500Vrms	-	-	-	4-SSOP	-	100µs, 100µs	-	-	1	30 mA	-
APV3111GVY MOSFET DRIVER 18V 12UA SSOP Panasonic Electric Works Datasheet	7,536 In Stock	3,500 : $9,520.00 Tape & Reel (TR)	Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD (0.175", 4.45mm)	Photovoltaic	Surface Mount	-40°C ~ 85°C	1.47V	DC	-	1500Vrms	-	-	-	4-SSOP	-	400µs, 40µs	-	-	1	30 mA	-
APV3111GV1Y MOSFET DRIVER 18V 12UA SSOP Panasonic Electric Works Datasheet	692 In Stock	1,000 : $2,830.00 2,000 : $5,440.00 Tape & Reel (TR)	Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD, Flat Leads	Photovoltaic	Surface Mount	-40°C ~ 85°C	1.47V	DC	-	1500Vrms	-	-	-	4-SSOP	-	400µs, 40µs	-	-	1	30 mA	-
APV1121SX OPTOISO 2.5KV PHOTOVOLTAIC 4-SOP Panasonic Electric Works Datasheet	16,808 In Stock	1,000 : $1,090.00 3,000 : $3,210.00 5,000 : $5,250.00 Tape & Reel (TR)	Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD, Gull Wing	Photovoltaic	Surface Mount	-40°C ~ 85°C	1.15V	DC	14µA	2500Vrms	-	-	-	4-SOP	8.7V	400µs, 100µs	-	-	1	50 mA	-
APV1122AX OPTOISOLTR 5KV PHVOLT 6-DIP SMD Panasonic Electric Works Datasheet	950 In Stock	1,000 : $1,820.00 3,000 : $5,370.00 5,000 : $8,800.00 Tape & Reel (TR)	Tape & Reel (TR) Cut Tape (CT)	Active	6-SMD (5 Leads), Gull Wing	Photovoltaic	Surface Mount	-40°C ~ 85°C	1.15V	DC	14µA	5000Vrms	-	-	-	6-DIP	8.7V	400µs, 100µs	-	-	1	50 mA	-
APV1111GV1Y MOSFET DRIVER 8.5V 45UA SSOP Panasonic Electric Works Datasheet	358 In Stock	1,000 : $2,380.00 2,000 : $4,560.00 Tape & Reel (TR)	Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD, Flat Leads	Photovoltaic	Surface Mount	-40°C ~ 85°C	1.47V	DC	-	1500Vrms	-	-	-	4-SSOP	-	100µs, 100µs	-	-	1	30 mA	-

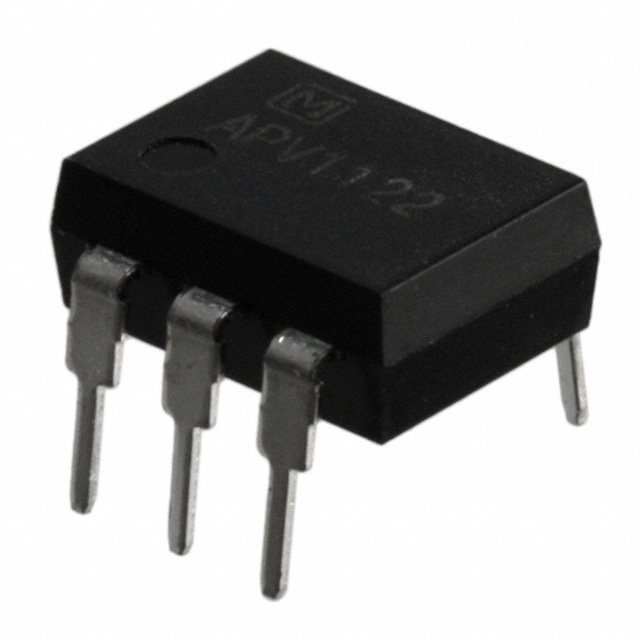

APV1122 OPTOISO 5KV PHOTOVOLTAIC 6-DIP Panasonic Electric Works Datasheet	0 In Stock	1 : $5.04 50 : $178.00 100 : $292.00 500 : $1,230.00 1,000 : $2,260.00 2,000 : $4,320.00 Tube	Tube	Active	6-DIP (0.300", 7.62mm)	Photovoltaic	Through Hole	-40°C ~ 85°C	1.15V	DC	14µA	5000Vrms	-	-	-	6-DIP	8.7V	400µs, 100µs	-	-	1	50 mA	-
