Switching Converter, SMPS Transformers

Mfr Part #	Quantity	Price	Series	Package	Product Status	Size / Dimension	Mounting Type	Style	Frequency	Type	Operating Temperature	Applications	Voltage - Isolation	Intended Chipset	Voltage - Primary	Voltage - Auxiliary	Footprint	Chipset Manufacturer	Height - Seated (Max)	Inductance @ Frequency	Grade	Qualification

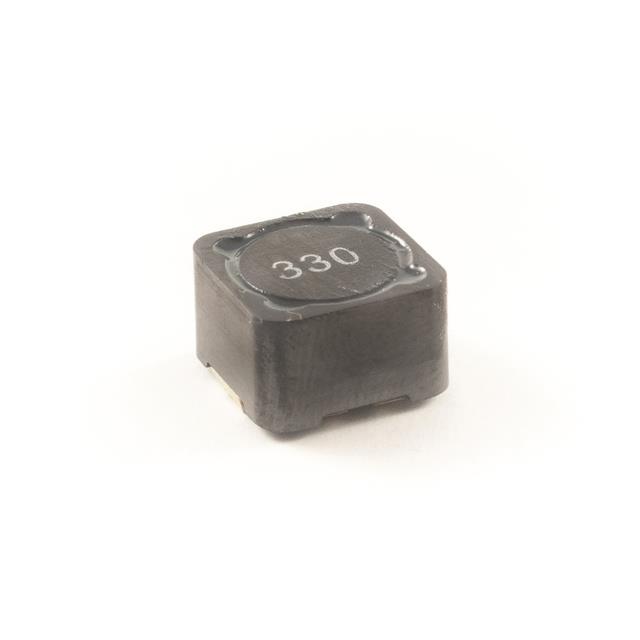

PCSDR127-330M-RC 33uH +/-20% Power Chip Inductor Allied Components International Datasheet	32 Marketplace	1 : $0.98 5 : $4.75 10 : $9.00 15 : $12.75 Tape & Reel (TR)		Tape & Reel (TR)	Active	0.492" L x 0.492" W (12.50mm x 12.50mm)	Surface Mount	-	-	-	-55°C ~ 125°C	-	-	-	-	-	-	-	0.315" (8.00mm)	-	-	-
PCSDR127-820M-RC 82uH +/-20% Power Chip Inductor Allied Components International Datasheet	27 Marketplace	1 : $0.98 5 : $4.75 10 : $9.00 15 : $12.75 Tape & Reel (TR)		Tape & Reel (TR)	Active	0.492" L x 0.492" W (12.50mm x 12.50mm)	Surface Mount	-	-	-	-55°C ~ 125°C	-	-	-	-	-	-	-	0.315" (8.00mm)	-	-	-
PCSLF0732-470M-RC 47uH +/-20% SMD Power Chip Ind Allied Components International Datasheet	15 Marketplace	1 : $0.98 5 : $4.75 10 : $9.00 15 : $12.75 Tape & Reel (TR)		Tape & Reel (TR)	Active	0.276" L x 0.276" W (7.00mm x 7.00mm)	Surface Mount	-	-	-	-40°C ~ 85°C	-	-	-	-	-	-	-	0.134" (3.40mm)	-	-	-

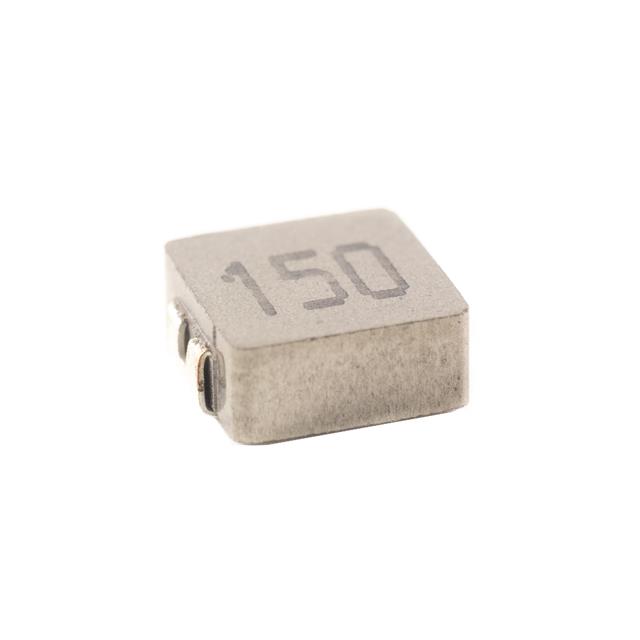

PCSLF0745-150M-RC 15uH +/-20% SMD Power Chip Ind Allied Components International Datasheet	13 Marketplace	1 : $0.98 5 : $4.75 10 : $9.00 15 : $12.75 Tape & Reel (TR)		Tape & Reel (TR)	Active	0.276" L x 0.276" W (7.00mm x 7.00mm)	Surface Mount	-	-	-	-40°C ~ 85°C	-	-	-	-	-	-	-	0.189" (4.80mm)	-	-	-
PCFV49-4R7M-RC 4.7uH +/-20% SMD Power Chip Ind. Allied Components International Datasheet	10 Marketplace	1 : $0.98 5 : $4.75 10 : $9.00 15 : $12.75 Tape & Reel (TR)		Tape & Reel (TR)	Active	0.157" L x 0.157" W (4.00mm x 4.00mm)	Surface Mount	-	-	-	-55°C ~ 125°C	-	-	-	-	-	-	-	0.110" (2.80mm)	-	-	-
PCFV48-1R5M-RC 1.5uH +/-20% SMD Power Chip Ind. Allied Components International Datasheet	820 Marketplace	1 : $0.98 5 : $4.75 10 : $9.00 15 : $12.75 Tape & Reel (TR)		Tape & Reel (TR)	Active	0.157" L x 0.157" W (4.00mm x 4.00mm)	Surface Mount	-	-	-	-40°C ~ 125°C	-	-	-	-	-	-	-	0.079" (2.00mm)	-	-	-
PCDF24-1R5M-RC 1.5uH +/-20% Shielded Power Chip Allied Components International Datasheet	8 Marketplace	1 : $0.98 5 : $4.75 10 : $9.00 15 : $12.75 Tape & Reel (TR)	PCDF24	Tape & Reel (TR)	Active	0.098" L x 0.079" W (2.50mm x 2.00mm)	Surface Mount	-	-	-	-40°C ~ 125°C	-	-	-	-	-	-	-	0.039" (1.00mm)	-	-	-

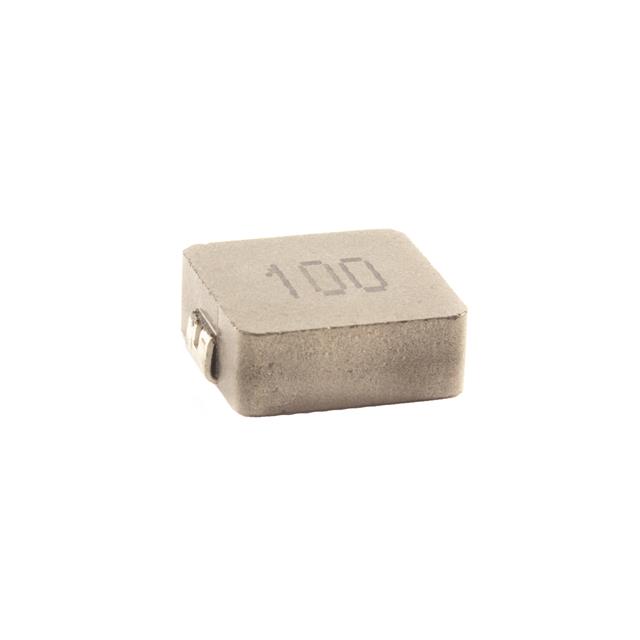

PCHC104R7-100M-RC 10uH +/-20% Pwr Choke Hi-Current Allied Components International Datasheet	10 Marketplace	1 : $0.98 5 : $4.75 10 : $9.00 15 : $12.75 Tape & Reel (TR)	PCHC104R7	Tape & Reel (TR)	Active	0.457" L x 0.398" W (11.60mm x 10.10mm)	Surface Mount	-	-	-	-55°C ~ 125°C	-	-	-	-	-	-	-	0.157" (4.00mm)	-	-	-

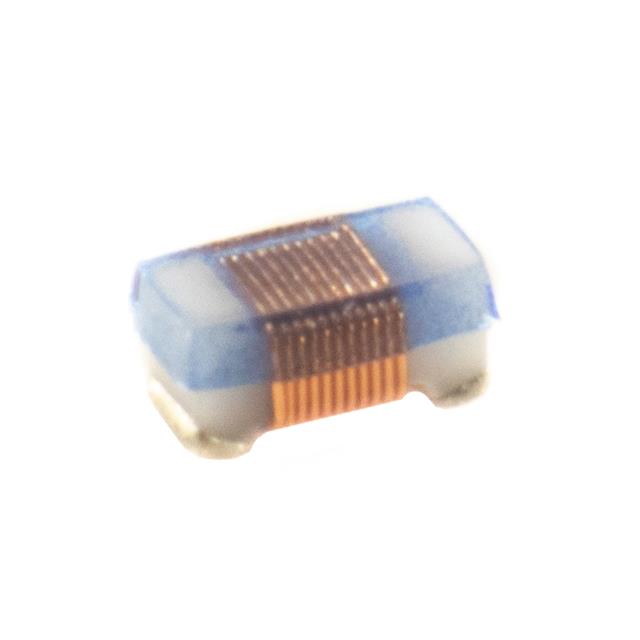

CHQ02-16NG-RC 16nH +/-2% Ceramic Core Chip Ind Allied Components International Datasheet	100 Marketplace	1 : $0.98 5 : $4.75 10 : $9.00 15 : $12.75 Tape & Reel (TR)		Tape & Reel (TR)	Active	0.050" L x 0.030" W (1.27mm x 0.76mm)	Surface Mount	-	-	Wirewound	-40°C ~ 125°C	-	-	-	-	-	-	-	0.024" (0.61mm)	-	-	-
PCHC63R8-R82M-RC .82uH +/-20% Pwr Choke Hi-Curr. Allied Components International Datasheet	20 Marketplace	1 : $0.98 5 : $4.75 10 : $9.00 15 : $12.75 Tape & Reel (TR)	PCHC63R8	Tape & Reel (TR)	Active	0.287" L x 0.260" W (7.30mm x 6.60mm)	Surface Mount	-	-	-	-55°C ~ 125°C	-	-	-	-	-	-	-	0.118" (3.00mm)	-	-	-
