Special Purpose Isolators

Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Mounting Type	Type	Operating Temperature	Voltage - Supply	Input Type	Current - Output / Channel	Voltage - Isolation	Approval Agency	Supplier Device Package	Rise / Fall Time (Typ)	Common Mode Transient Immunity (Min)	Propagation Delay tpLH / tpHL (Max)	Number of Channels	Current - DC Forward (If) (Max)	Voltage - Forward (Vf) (Typ)

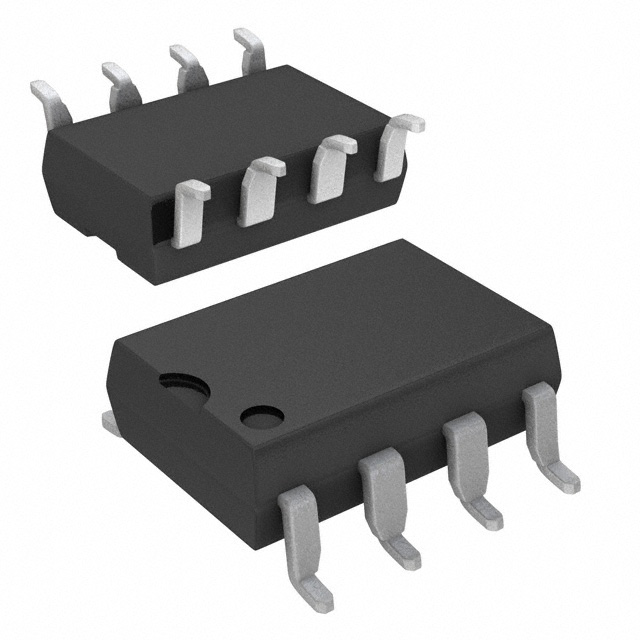

HCPL-J314-500E OPTOISO 3.75KV 1CH GT DVR 8DIP Broadcom Datasheet	12,754 In Stock	1,000 : $1,330.00 2,000 : $2,520.00 5,000 : $6,150.00 Tape & Reel (TR)		Tape & Reel (TR) Cut Tape (CT)	Active	8-SMD, Gull Wing	Surface Mount	-	-40°C ~ 100°C	-	-	-	3750Vrms	CSA, IEC/EN/DIN, UR	8-DIP Gull Wing	50ns, 50ns	25kV/µs	700ns, 700ns	1	25 mA	-

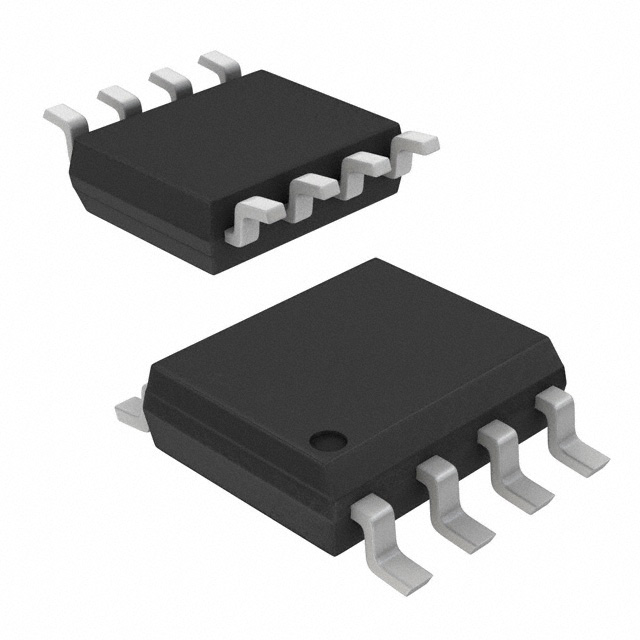

HCPL-070A#500 OPTOISO 3.75KV DARL W/BASE 8SOIC Broadcom Datasheet	0 In Stock	1,500 : $4,350.00 3,000 : $8,340.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	8-SOIC (0.154", 3.90mm Width)	Surface Mount	-	0°C ~ 70°C	-	DC	60mA	3750Vrms	-	8-SO	-	-	-	1	5 mA	-
HCPL-0370-500 OPTOISO 3.75KV DARLINGTON 8-SO Broadcom Datasheet	0 In Stock	Discontinued		Tape & Reel (TR)	Discontinued	8-SOIC (0.154", 3.90mm Width)	Surface Mount	-	-40°C ~ 85°C	-	AC, DC	30mA	3750Vrms	-	8-SO	20µs, 0.3µs	-	-	1	-	-
HCPL-T250-560E OPTOISO 3.75KV 1CH GT DVR 8DIP Broadcom Datasheet	0 In Stock	4,000 : $4,560.00 5,000 : $5,550.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	8-SMD, Gull Wing	Surface Mount	-	-20°C ~ 85°C	-	-	-	3750Vrms	CSA, IEC/EN/DIN, UR	8-DIP Gull Wing	-	5kV/µs	500ns, 500ns	1	20 mA	-
HCPL-J314#500 OPTOISO 3.75KV 1CH GT DVR 8DIP Broadcom Datasheet	0 In Stock	Discontinued		Tape & Reel (TR)	Discontinued	8-SMD, Gull Wing	Surface Mount	-	-40°C ~ 100°C	-	-	-	3750Vrms	CSA, IEC/EN/DIN, UR	8-DIP Gull Wing	50ns, 50ns	25kV/µs	700ns, 700ns	1	25 mA	-
HCPL-063L#500 OPTOISO 3.75KV 2CH OPEN COLL 8SO Broadcom Datasheet	0 In Stock	1,500 : $6,645.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	8-SOIC (0.154", 3.90mm Width)	Surface Mount	-	-40°C ~ 85°C	2.7V ~ 3.6V, 4.5V ~ 5.5V	DC	-	3750Vrms	-	8-SO Tall	24ns, 10ns	10kV/µs	75ns, 75ns	2	-	-
HCPL-2231#500 OPTOISO 3.75KV PUSH PULL 8DIP GW Broadcom Datasheet	0 In Stock	1,000 : $6,230.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	8-SMD, Gull Wing	Surface Mount	-	-40°C ~ 85°C	4.5V ~ 20V	DC	-	3750Vrms	-	8-DIP Gull Wing	30ns, 7ns	1kV/µs	300ns, 300ns	2	-	-
ACPL-W314-500E OPTOISO 5KV 1CH GATE DVR 6SO Broadcom Datasheet	3,000 In Stock	1,000 : $1,380.00 2,000 : $2,620.00 5,000 : $6,400.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	6-SOIC (0.295", 7.50mm Width)	Surface Mount	-	-40°C ~ 100°C	-	-	-	5000Vrms	CSA, UR	6-SO	50ns, 50ns	25kV/µs	700ns, 700ns	1	25 mA	-
HCPL-4534#500 OPTOISO 3.75KV 2CH TRANS 8SMD Broadcom Datasheet	0 In Stock	1,000 : $4,930.00 2,000 : $9,640.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	8-SMD, Gull Wing	Surface Mount	-	-55°C ~ 100°C	-	DC	8mA	3750Vrms	-	8-SMD	-	-	-	2	25 mA	-
HCPL-7710-560E OPTOISO 3.75KV PUSH PULL 8DIP GW Broadcom Datasheet	0 In Stock	2,000 : $5,540.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	8-SMD, Gull Wing	Surface Mount	-	-40°C ~ 100°C	4.5V ~ 5.5V	Logic	-	3750Vrms	-	8-DIP Gull Wing	13ns, 5ns	10kV/µs	40ns, 40ns	1	-	-
