Spade Connectors

Mfr Part #	Quantity	Price	Series	Package	Product Status	Features	Contact Finish	Color	Mounting Type	Wire Gauge	Insulation	Terminal Type	Stud/Tab Size	Length - Overall	Termination	Material - Insulation	Width - Outer Edges	Contact Material	Insulation Diameter	Length - Ring Center to Termination	Length - Termination	Tongue Inside Opening

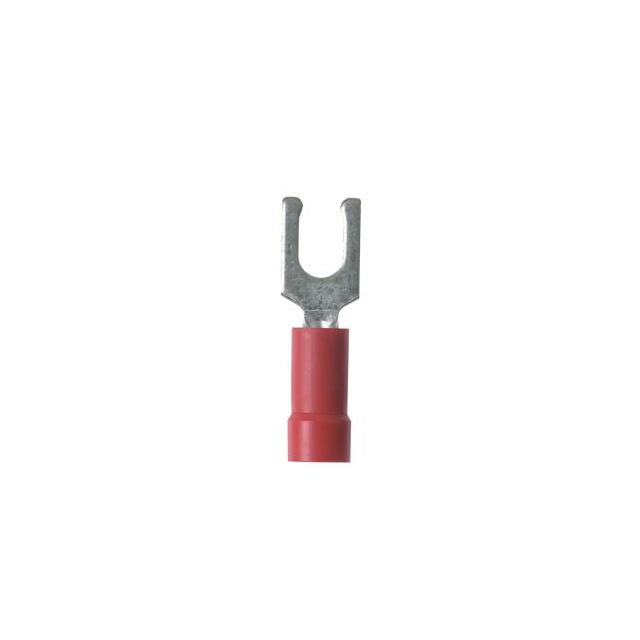

PN18-6LF-E CONN SPADE TERM 18-22AWG #6 RED Panduit Corporation Datasheet	0 In Stock	Obsolete	Pan-Term®	Bulk	Obsolete	Serrated Termination	Tin	Red	Free Hanging (In-Line)	18-22 AWG	Insulated	Spring, Snap	6 Stud	0.820" (20.83mm)	Crimp	Polyamide (PA), Nylon	0.270" (6.86mm)	Copper	0.080" ~ 0.145" (2.03mm ~ 3.68mm)	-	-	0.140" (3.56mm)
PV18-10FX-CY CONN SPADE TERM 18-22AWG #10 RED Panduit Corporation Datasheet	0 In Stock	Obsolete	Pan-Term®	Bulk	Obsolete	Brazed Seam, Serrated Termination	Tin	Red	Free Hanging (In-Line)	18-22 AWG	Insulated	Standard	10 Stud	0.970" (24.64mm)	Crimp	-	0.350" (8.89mm)	Copper	-	-	-	-
PV18-6F-E CONN SPADE TERM 18-22AWG #6 RED Panduit Corporation Datasheet	0 In Stock	Obsolete	Pan-Term®	Bulk	Obsolete	Brazed Seam, Serrated Termination	Tin	Red	Free Hanging (In-Line)	18-22 AWG	Insulated	Standard	6 Stud	0.860" (21.84mm)	Crimp	Vinyl	0.300" (7.62mm)	Copper	0.150" (3.81mm)	-	-	0.150" (3.81mm)
PNF18-10F-3K CONN SPADE TERM 18-22AWG #10 RED Panduit Corporation Datasheet	0 In Stock	3,000 : $1,470.00 Tape & Reel (TR)	Pan-Term®	Tape & Reel (TR)	Obsolete	Serrated Termination	Tin	Red	Free Hanging (In-Line)	18-22 AWG	Insulated	Standard	10 Stud	0.850" (21.59mm)	Crimp	-	0.350" (8.89mm)	Copper	-	-	-	-
PMV1-3FB-CY CONN SPADE TERM 18-22AWG M3 RED Panduit Corporation Datasheet	0 In Stock	Obsolete	Pan-Term®	Bulk	Obsolete	Butted Seam, Serrated Termination	Tin	Red	Free Hanging (In-Line)	18-22 AWG	Insulated	Standard	M3 Stud	0.850" (21.59mm)	Crimp	Vinyl	0.230" (5.84mm)	Copper	0.160" (4.06mm)	-	-	0.130" (3.30mm)

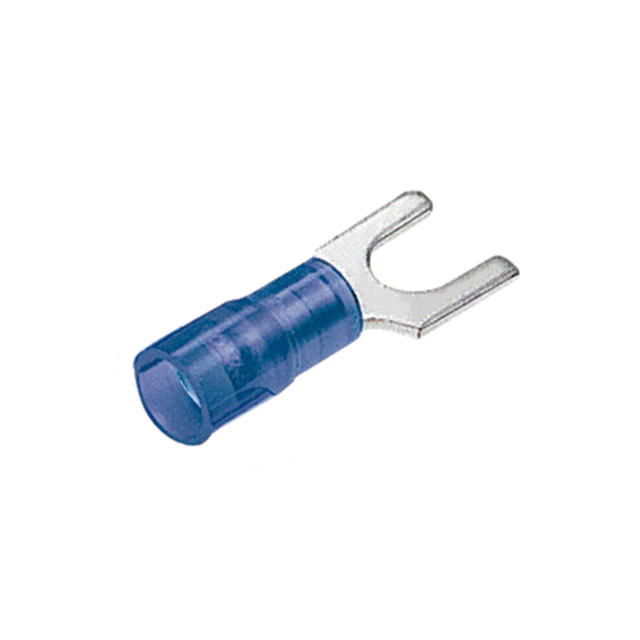

PNF14-8F-3K CONN SPADE TERM 14-16AWG #8 BLU Panduit Corporation Datasheet	0 In Stock	3,000 : $1,470.00 Tape & Reel (TR)	Pan-Term®	Tape & Reel (TR)	Obsolete	Serrated Termination	Tin	Blue	Free Hanging (In-Line)	14-16 AWG	Insulated	Standard	8 Stud	0.840" (21.34mm)	Crimp	-	0.310" (7.87mm)	Copper	-	-	-	-

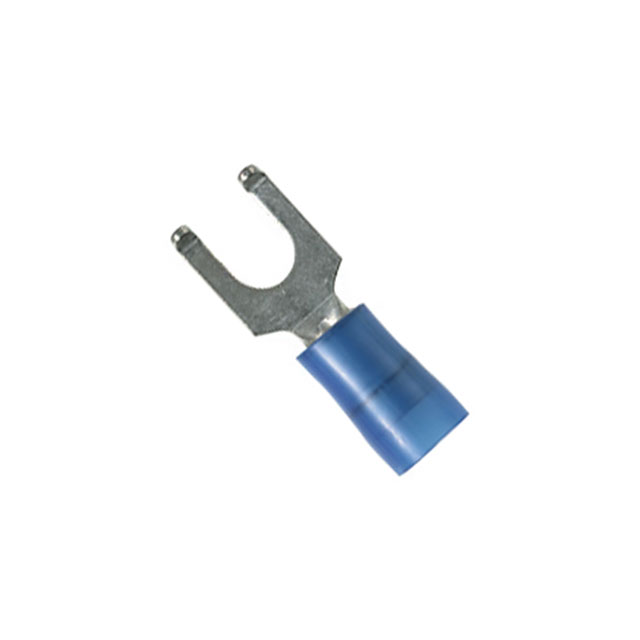

PN14-10FF-3K CONN SPADE TERM 14-16AWG #10 BLU Panduit Corporation Datasheet	0 In Stock	Obsolete	Pan-Term®	Tape & Reel (TR) Cut Tape (CT)	Obsolete	Serrated Termination	Tin	Blue	Free Hanging (In-Line)	14-16 AWG	Insulated	Flanged	10 Stud	0.870" (22.10mm)	Crimp	Polyamide (PA), Nylon	0.350" (8.89mm)	Copper	0.080" ~ 0.162" (2.03mm ~ 4.11mm)	-	-	0.200" (5.08mm)
PV18-6LFW-CY CONN SPADE TERM 18-22AWG #6 RED Panduit Corporation Datasheet	0 In Stock	Obsolete	Pan-Term®	Bulk	Obsolete	Brazed Seam, Serrated Termination	Tin	Red	Free Hanging (In-Line)	18-22 AWG	Insulated	Spring, Snap	6 Stud	0.900" (22.86mm)	Crimp	Vinyl	0.290" (7.37mm)	Copper	0.150" (3.81mm)	-	-	0.140" (3.56mm)

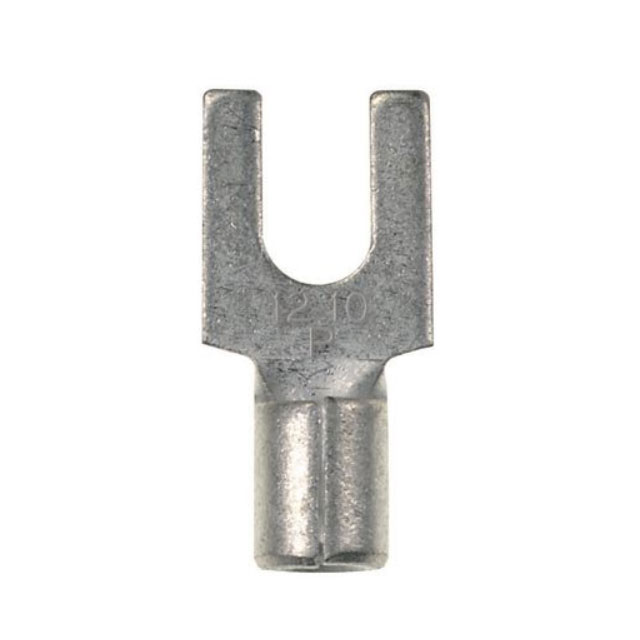

E14-6FB-L STRONGHOLD FORK TERMINAL, NON-IN Panduit Corporation Datasheet	0 In Stock	Obsolete	StrongHold™	Bulk	Obsolete	Butted Seam	Tin	-	Free Hanging (In-Line)	14-16 AWG	Non-Insulated	Standard	6 Stud	0.630" (16.00mm)	Crimp	-	0.280" (7.11mm)	Copper	-	-	-	-
E18-6FB-L STRONGHOLD FORK TERMINAL, NON-IN Panduit Corporation Datasheet	0 In Stock	Obsolete	StrongHold™	Bulk	Obsolete	Butted Seam	Tin	-	Free Hanging (In-Line)	18-22 AWG	Non-Insulated	Standard	6 Stud	0.630" (16.00mm)	Crimp	-	0.300" (7.62mm)	Copper	-	-	-	0.150" (3.81mm)
