Spade Connectors

Mfr Part #	Quantity	Price	Series	Package	Product Status	Features	Contact Finish	Color	Mounting Type	Wire Gauge	Insulation	Terminal Type	Stud/Tab Size	Length - Overall	Termination	Material - Insulation	Width - Outer Edges	Contact Material	Insulation Diameter	Length - Ring Center to Termination	Length - Termination	Tongue Inside Opening

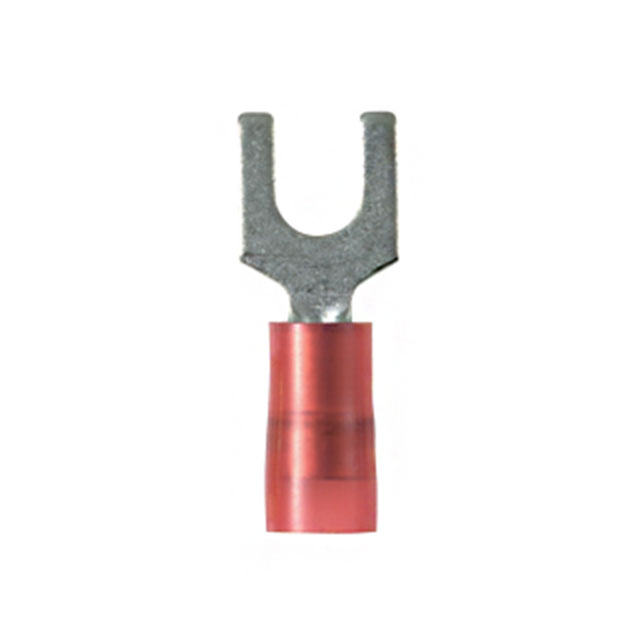

PN18-8FF-C CONN SPADE TERM 18-22AWG #8 RED Panduit Corporation Datasheet	212 In Stock	1 : $1.76 10 : $17.10 25 : $41.75 50 : $81.00 100 : $158.00 Bulk	Pan-Term®	Bulk	Obsolete	Serrated Termination	Tin	Red	Free Hanging (In-Line)	18-22 AWG	Insulated	Flanged	8 Stud	0.880" (22.35mm)	Crimp	Polyamide (PA), Nylon	0.310" (7.87mm)	Copper	0.136" (3.45mm)	-	-	0.170" (4.32mm)
PN18-10FN-C CONN SPADE TERM 18-22AWG #10 RED Panduit Corporation Datasheet	44 In Stock	1 : $1.36 10 : $13.30 25 : $32.50 Bulk	Pan-Term®	Bulk	Obsolete	Butted Seam	Tin	Red	Free Hanging (In-Line)	18-22 AWG	Insulated	Standard	10 Stud	0.860" (21.84mm)	Crimp	-	0.310" (7.87mm)	Copper	-	-	-	-

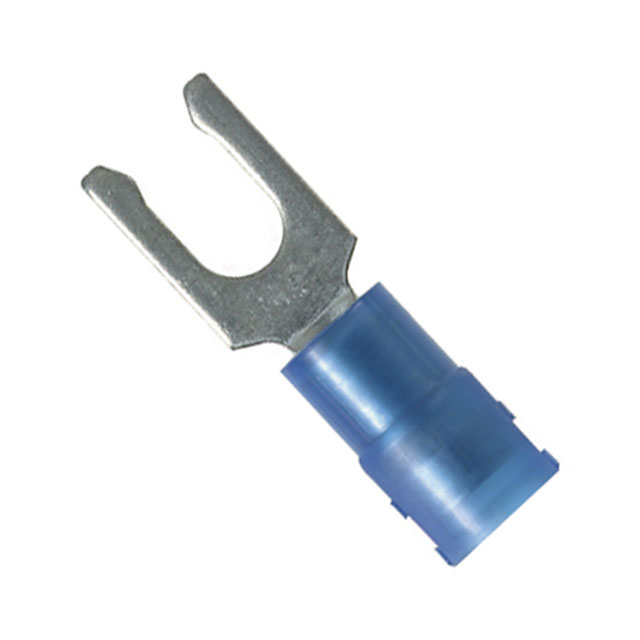

PN14-6LFW-C CONN SPADE TERM 14-16AWG #6 BLU Panduit Corporation Datasheet	1,144 In Stock	1 : $1.36 10 : $13.30 25 : $32.50 50 : $63.00 100 : $123.00 500 : $595.00 1,000 : $1,130.00 Bulk	Pan-Term®	Bulk	Obsolete	Serrated Termination	Tin	Blue	Free Hanging (In-Line)	14-16 AWG	Insulated	Spring, Snap	6 Stud	0.860" (21.84mm)	Crimp	Polyamide (PA), Nylon	0.290" (7.37mm)	Copper	0.162" (4.11mm)	-	-	0.140" (3.56mm)

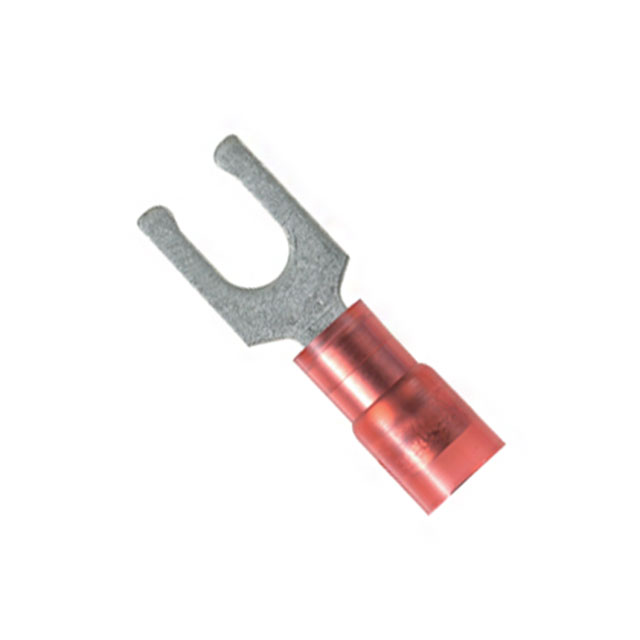

PNF18-8LF-C CONN SPADE TERM 18-22AWG #8 RED Panduit Corporation Datasheet	210 In Stock	1 : $1.53 10 : $15.00 25 : $36.50 50 : $71.00 100 : $138.00 Bulk	Pan-Term®	Bulk	Obsolete	-	Tin	Red	Free Hanging (In-Line)	18-22 AWG	Insulated	Spring, Snap	8 Stud	0.890" (22.61mm)	Crimp	-	0.290" (7.37mm)	Copper	-	-	-	-

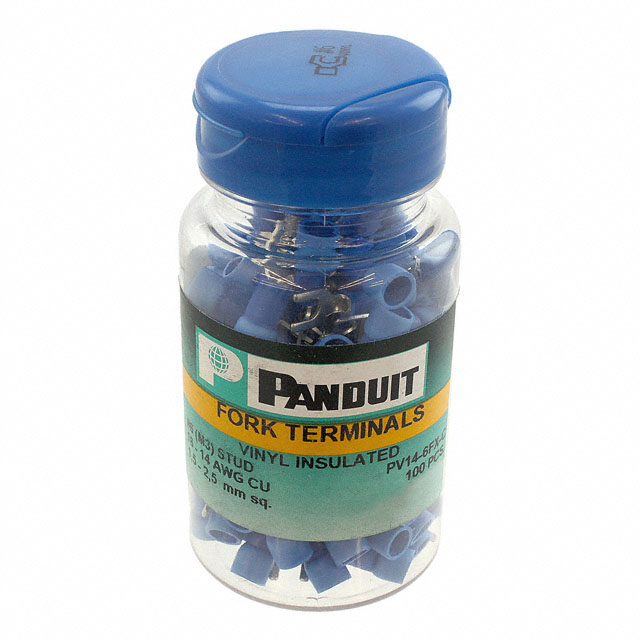

PV14-6FX-C CONN SPADE TERM 14-16AWG #6 BLU Panduit Corporation Datasheet	6 In Stock	1 : $1.09 Bulk	Pan-Term®	Bulk	Obsolete	Brazed Seam, Serrated Termination	Tin	Blue	Free Hanging (In-Line)	14-16 AWG	Insulated	Standard	6 Stud	0.890" (22.61mm)	Crimp	Vinyl	0.280" (7.11mm)	Copper	0.200" (5.08mm)	-	-	0.150" (3.81mm)
P14-8F-C CONN SPADE TERM 14-18AWG #8 Panduit Corporation Datasheet	0 In Stock	100 : $54.00 Bulk	Pan-Term®	Bulk	Active	Brazed Seam, Serrated Termination	Tin	-	Free Hanging (In-Line)	14-18 AWG	Non-Insulated	Standard	8 Stud	0.690" (17.53mm)	Crimp	-	0.310" (7.87mm)	Copper	-	-	-	0.170" (4.32mm)

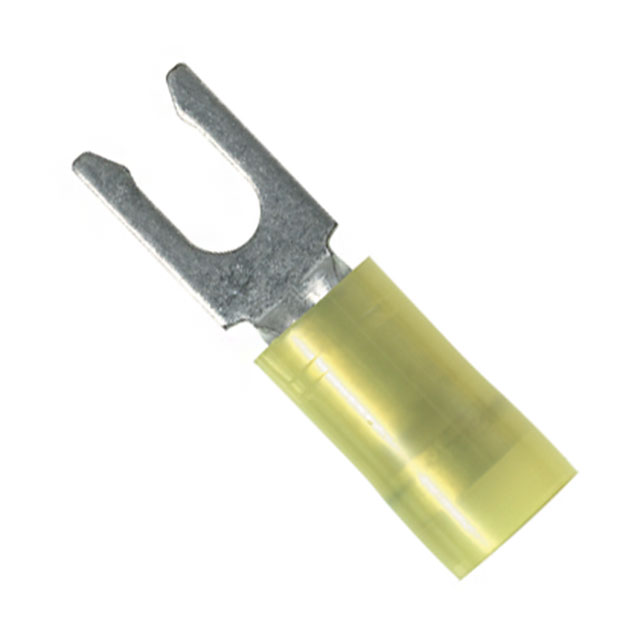

PN10-10LF-D CONN SPADE TERM 10-12AWG #10 YEL Panduit Corporation Datasheet	0 In Stock	500 : $325.00 Bulk	Pan-Term®	Bulk	Active	Butted Seam, Serrated Termination	Tin	Yellow	Free Hanging (In-Line)	10-12 AWG	Insulated	Spring, Snap	10 Stud	1.050" (26.67mm)	Crimp	Polyamide (PA), Nylon	0.340" (8.64mm)	Copper	0.225" (5.72mm)	-	-	0.190" (4.83mm)
PN10-6LF-D CONN SPADE TERM 10-12AWG #6 YEL Panduit Corporation Datasheet	0 In Stock	500 : $345.00 Bulk	Pan-Term®	Bulk	Active	Butted Seam, Serrated Termination	Tin	Yellow	Free Hanging (In-Line)	10-12 AWG	Insulated	Spring, Snap	6 Stud	1.020" (25.91mm)	Crimp	Polyamide (PA), Nylon	0.300" (7.62mm)	Copper	0.225" (5.72mm)	-	-	0.140" (3.56mm)

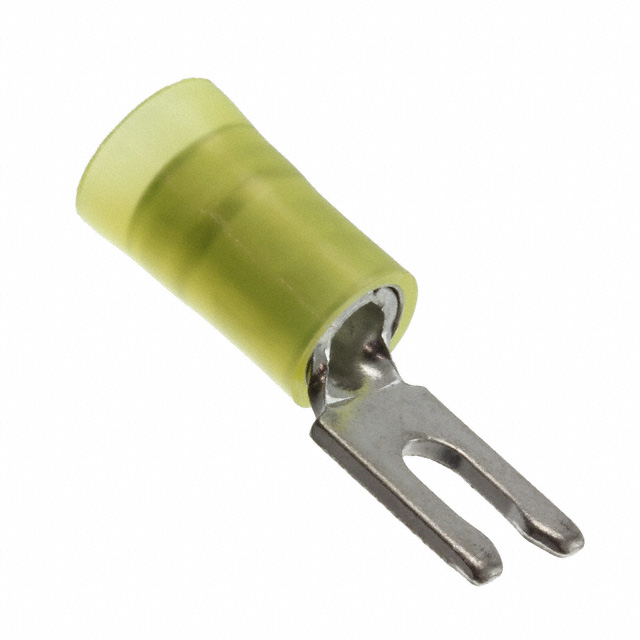

PN10-8LF-2K CONN SPADE TERM 10-12AWG #8 YEL Panduit Corporation Datasheet	10,000 In Stock	2,000 : $1,300.00 6,000 : $3,660.00 10,000 : $5,900.00 Tape & Reel (TR)	Pan-Term®, ReelSmart™	Tape & Reel (TR)	Active	Serrated Termination	Tin	Yellow	Free Hanging (In-Line)	10-12 AWG	Insulated	Spring, Snap	8 Stud	1.050" (26.67mm)	Crimp	-	0.300" (7.62mm)	Copper	-	-	-	-

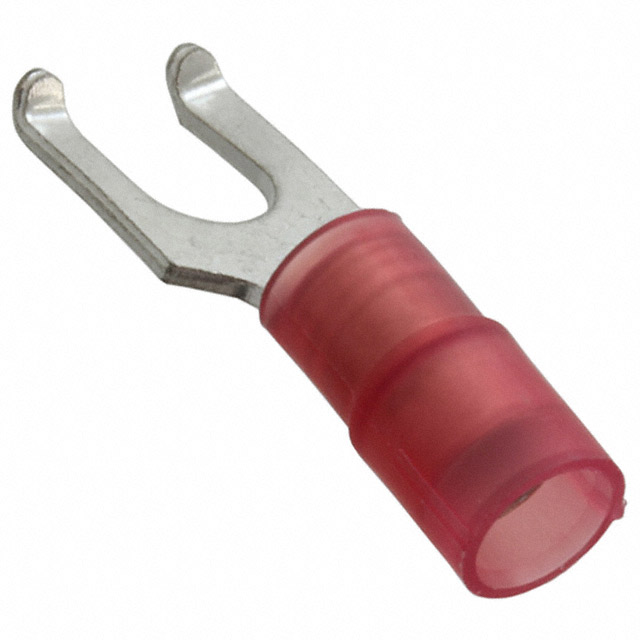

PN18-6FN-3K CONN SPADE TERM 18-22AWG #6 RED Panduit Corporation Datasheet	13,200 In Stock	3,000 : $1,380.00 6,000 : $2,640.00 15,000 : $6,150.00 30,000 : $11,700.00 Tape & Reel (TR)	Pan-Term®, ReelSmart™	Tape & Reel (TR) Cut Tape (CT)	Active	Butted Seam, Serrated Termination	Tin	Red	Free Hanging (In-Line)	18-22 AWG	Insulated	Standard	6 Stud	0.780" (19.81mm)	Crimp	Polyamide (PA), Nylon	0.250" (6.35mm)	Copper	0.080" ~ 0.145" (2.03mm ~ 3.68mm)	-	-	0.150" (3.81mm)
