Single Zener Diodes

Packaging

Bag

Box

Bulk

Cut Tape (CT)

Strip

Tape & Box (TB)

Tape & Reel (TR)

Tray

Tube

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Mounting Type

Chassis, Stud Mount

Chassis Mount

Stud Mount

Surface Mount

Surface Mount, Wettable Flank

Through Hole

Grade

Automotive

Military

Mfr Part #	Quantity	Price	Series	Package	Product Status	Tolerance	Package / Case	Mounting Type	Operating Temperature	Voltage - Zener (Nom) (Vz)	Impedance (Max) (Zzt)	Supplier Device Package	Grade	Power - Max	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Qualification

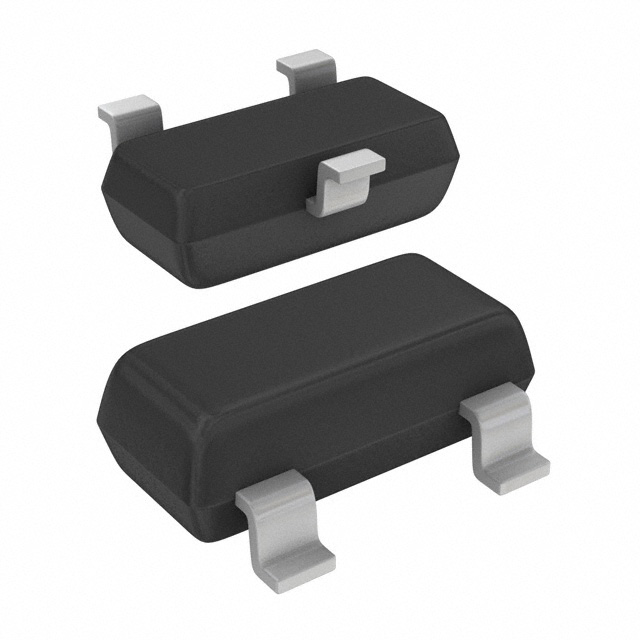

BZX84-C5V6/LF1VL DIODE ZENER 5.6V 250MW TO236AB NXP Semiconductors Datasheet	0 In Stock	Active		Tape & Reel (TR)	Active	±5%	TO-236-3, SC-59, SOT-23-3	Surface Mount	-65°C ~ 150°C	5.6 V	40 Ohms	SOT-23 (TO-236AB)	Automotive	250 mW	900 mV @ 10 mA	1 µA @ 2 V	AEC-Q101
BZX84-C10/LF1R DIODE ZENER 10V 250MW TO236AB NXP Semiconductors Datasheet	0 In Stock	Active		Tape & Reel (TR)	Active	±5%	TO-236-3, SC-59, SOT-23-3	Surface Mount	-65°C ~ 150°C	10 V	20 Ohms	SOT-23 (TO-236AB)	Automotive	250 mW	900 mV @ 10 mA	200 nA @ 7 V	AEC-Q101
BZX84-C36/LF1VL DIODE ZENER 36V 250MW TO236AB NXP Semiconductors Datasheet	0 In Stock	Active		Tape & Reel (TR)	Active	±5%	TO-236-3, SC-59, SOT-23-3	Surface Mount	-65°C ~ 150°C	36 V	90 Ohms	SOT-23 (TO-236AB)	Automotive	250 mW	900 mV @ 10 mA	50 nA @ 23.1 V	AEC-Q101
BZX84-C6V2/LF1VL DIODE ZENER 6.2V 250MW TO236AB NXP Semiconductors Datasheet	0 In Stock	Active		Tape & Reel (TR)	Active	±5%	TO-236-3, SC-59, SOT-23-3	Surface Mount	-65°C ~ 150°C	6.2 V	10 Ohms	SOT-23 (TO-236AB)	Automotive	250 mW	900 mV @ 10 mA	3 µA @ 4 V	AEC-Q101
BZX84-C8V2/LF1R DIODE ZENER 8.2V 250MW TO236AB NXP Semiconductors Datasheet	0 In Stock	Active		Tape & Reel (TR)	Active	±5%	TO-236-3, SC-59, SOT-23-3	Surface Mount	-65°C ~ 150°C	8.2 V	15 Ohms	SOT-23 (TO-236AB)	Automotive	250 mW	900 mV @ 10 mA	700 nA @ 5 V	AEC-Q101
BZX84-C24/LF1R DIODE ZENER 24V 250MW TO236AB NXP Semiconductors Datasheet	0 In Stock	Active		Tape & Reel (TR)	Active	±5%	TO-236-3, SC-59, SOT-23-3	Surface Mount	-65°C ~ 150°C	24 V	70 Ohms	SOT-23 (TO-236AB)	Automotive	250 mW	900 mV @ 10 mA	50 nA @ 16.8 V	AEC-Q101
BZX84-C2V7/LF1VL DIODE ZENER 2.7V 250MW TO236AB NXP Semiconductors Datasheet	0 In Stock	Active		Tape & Reel (TR)	Active	±5%	TO-236-3, SC-59, SOT-23-3	Surface Mount	-65°C ~ 150°C	2.7 V	100 Ohms	SOT-23 (TO-236AB)	Automotive	250 mW	900 mV @ 10 mA	20 µA @ 1 V	AEC-Q101
BZX84-B9V1/LF1R DIODE ZENER 9.1V 250MW TO236AB NXP Semiconductors Datasheet	0 In Stock	Active		Tape & Reel (TR)	Active	±2%	TO-236-3, SC-59, SOT-23-3	Surface Mount	-65°C ~ 150°C	9.1 V	15 Ohms	SOT-23 (TO-236AB)	Automotive	250 mW	900 mV @ 10 mA	500 nA @ 6 V	AEC-Q101
BZX84-C3V6/LF1VL DIODE ZENER 3.6V 250MW TO236AB NXP Semiconductors Datasheet	0 In Stock	Active		Tape & Reel (TR)	Active	±5%	TO-236-3, SC-59, SOT-23-3	Surface Mount	-65°C ~ 150°C	3.6 V	90 Ohms	SOT-23 (TO-236AB)	Automotive	250 mW	900 mV @ 10 mA	5 µA @ 1 V	AEC-Q101
BZX84-B36/LF1R DIODE ZENER 36V 250MW TO236AB NXP Semiconductors Datasheet	0 In Stock	Active		Tape & Reel (TR)	Active	±2%	TO-236-3, SC-59, SOT-23-3	Surface Mount	-65°C ~ 150°C	36 V	90 Ohms	SOT-23 (TO-236AB)	Automotive	250 mW	900 mV @ 10 mA	50 nA @ 25.2 V	AEC-Q101
