Pulse Transformers

Mfr Part #	Quantity	Price	Series	Package	Product Status	Inductance	Size / Dimension	Mounting Type	Operating Temperature	Transformer Type	Turns Ratio - Primary:Secondary	ET (Volt-Time)	Height - Seated (Max)	Grade	Qualification

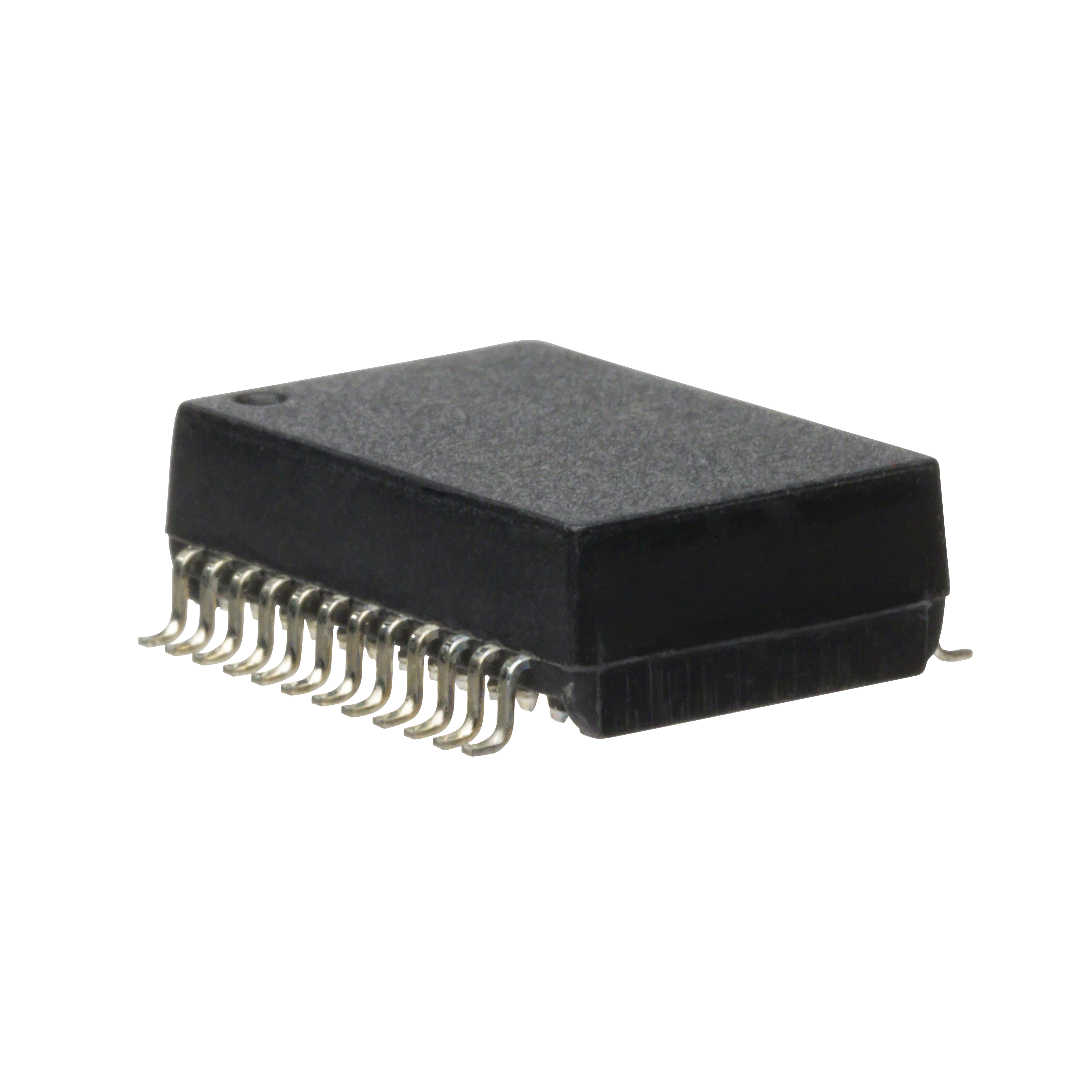

PM-8540 5KV ISOLATION XFMR Premier Magnetics Datasheet	275 Marketplace	1 : $21.00 25 : $487.50 50 : $761.50 100 : $1,287.00 250 : $2,625.00 500 : $4,595.00 1,000 : $7,050.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	350µH	0.961" L x 0.600" W (24.40mm x 15.24mm)	Surface Mount	0°C ~ 70°C	LAN 10/100 Base-TX	1CT:1CT Transmitter, 1CT:1CT Receiver	-	0.406" (10.30mm)	-	-

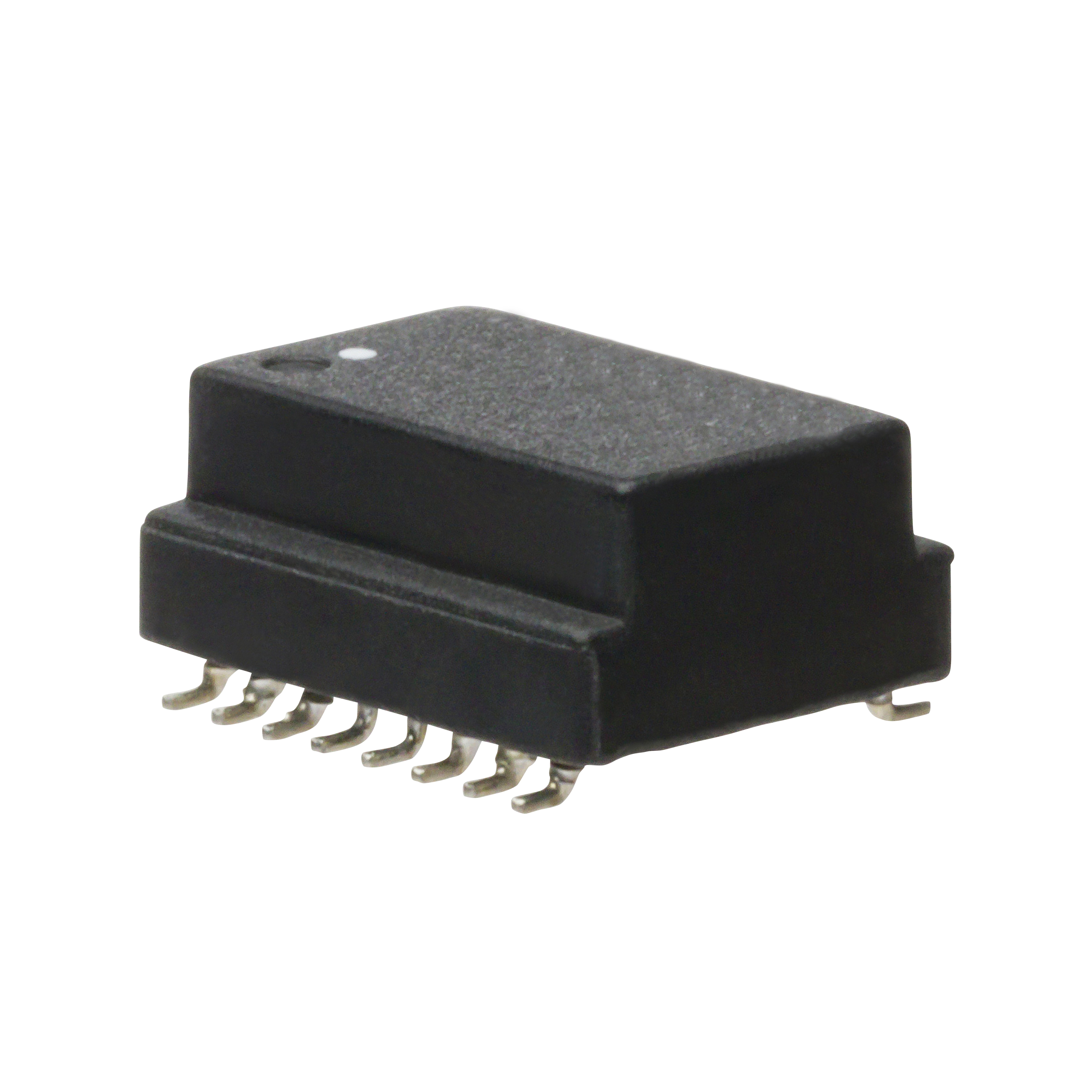

PM-3009 10/00 BASE-T, ISOLATION XFMR Premier Magnetics Datasheet	100 Marketplace	1 : $14.78 25 : $329.75 50 : $510.50 100 : $810.00 250 : $1,830.00 500 : $3,375.00 1,000 : $5,890.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	150µH	0.472" L x 0.285" W (12.00mm x 7.25mm)	Surface Mount	-40°C ~ 85°C	LAN 10/100 Base-T	1CT:1CT Transmitter, 1CT:1CT Receiver	-	0.225" (5.72mm)	-	-

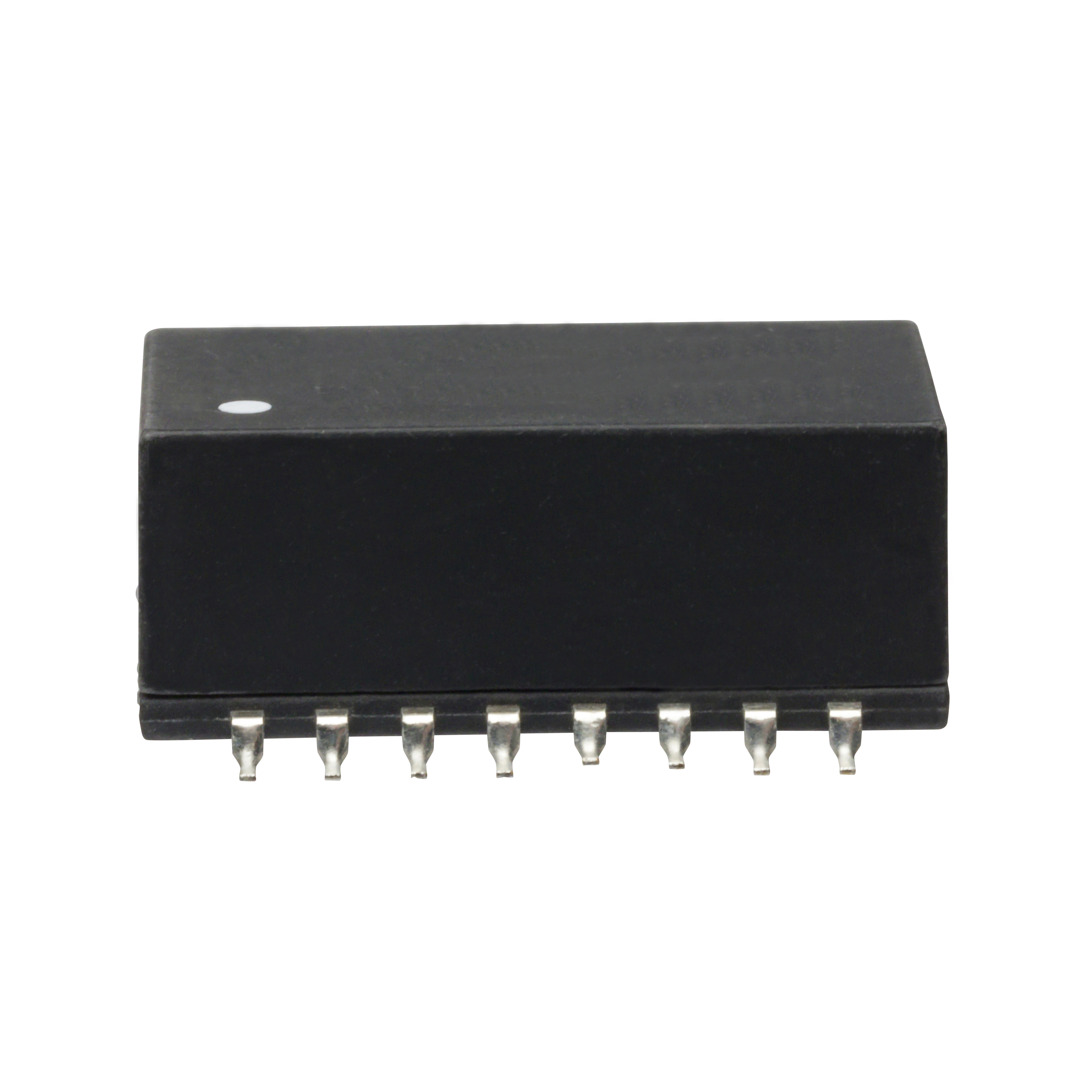

PM-WT75 WIDEBAND RF PULSE COUPLING XFMR Premier Magnetics Datasheet	1,302 Marketplace	1 : $100.00 25 : $1,375.00 50 : $2,250.00 100 : $2,800.00 250 : $3,750.00 500 : $4,500.00 1,000 : $8,000.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	7µH	0.451" L x 0.346" W (11.45mm x 8.80mm)	Surface Mount	-40°C ~ 85°C	Data/Voice Coupling	1:1	-	0.189" (4.80mm)	-	-
PM-8540S 5KV ISOLATION XFMR Premier Magnetics Datasheet	100 Marketplace	1 : $21.15 25 : $481.00 50 : $792.50 100 : $1,298.00 250 : $2,612.50 500 : $4,605.00 1,000 : $6,870.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	350µH	0.961" L x 0.600" W (24.40mm x 15.24mm)	Surface Mount	-40°C ~ 85°C	LAN 10/100 Base-TX	1CT:1CT Transmitter, 1CT:1CT Receiver	-	0.406" (10.30mm)	-	-
PM-9610 XFMR,ISO WITH FILTR,1000 BASE T Premier Magnetics Datasheet	100 Marketplace	1 : $8.80 25 : $203.50 50 : $374.00 100 : $660.00 250 : $1,430.00 500 : $2,310.00 1,000 : $3,480.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	350µH	0.732" L x 0.512" W (18.60mm x 13.00mm)	Surface Mount	-40°C ~ 85°C	LAN 1000 Base-T	1CT:1CT	-	0.400" (10.15mm)	-	-
PM-1016 10/100 BASE-T, ISOLATION XFMR Premier Magnetics Datasheet	100 Marketplace	1 : $9.95 25 : $222.25 50 : $391.50 100 : $677.00 250 : $1,512.50 500 : $2,590.00 1,000 : $3,990.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	180µH	0.472" L x 0.285" W (12.00mm x 7.25mm)	Surface Mount	-40°C ~ 85°C	LAN 10/100 Base-T	1CT:1CT Transmitter, 1CT:1CT Receiver	-	0.225" (5.72mm)	-	-
PM-9210 XFMR,ISO WITH FILTR,1000 BASE T Premier Magnetics Datasheet	100 Marketplace	1 : $8.13 25 : $162.50 50 : $292.50 100 : $487.00 250 : $995.00 500 : $1,615.00 1,000 : $2,760.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	350µH	0.594" L x 0.280" W (15.10mm x 7.10mm)	Surface Mount	-40°C ~ 85°C	LAN 1000 Base-T	1CT:1CT	-	0.148" (3.75mm)	-	-
PM-8538 10/100 BASE-TX ISOLATION XFMR Premier Magnetics Datasheet	100 Marketplace	1 : $15.02 25 : $301.25 50 : $461.50 100 : $750.00 250 : $1,772.50 500 : $3,280.00 1,000 : $6,000.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	350µH	0.961" L x 0.600" W (24.40mm x 15.24mm)	Surface Mount	0°C ~ 70°C	LAN 10/100 Base-TX	1CT:1CT Transmitter, 1CT:1CT Receiver	-	0.406" (10.30mm)	-	-
PM-1006 10/100 BASE-T, ISOLATION XFMR Premier Magnetics Datasheet	100 Marketplace	1 : $8.95 25 : $172.25 50 : $291.50 100 : $498.00 250 : $1,062.50 500 : $1,745.00 1,000 : $2,980.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	150µH	0.472" L x 0.285" W (12.00mm x 7.25mm)	Surface Mount	0°C ~ 70°C	LAN 10/100 Base-T	1CT:1CT Transmitter, 1CT:1CT Receiver	-	0.225" (5.72mm)	-	-
PM-8106 QUAD PORT SMD, ISOLATION XFMR Premier Magnetics Datasheet	100 Marketplace	1 : $15.60 25 : $325.00 50 : $520.00 100 : $910.00 250 : $1,950.00 500 : $2,925.00 1,000 : $4,150.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	1.2mH	1.125" L x 0.480" W (28.58mm x 12.19mm)	Surface Mount	0°C ~ 70°C	T1/E1 (Quad)	1:1.15 Transmitter, 1:1 Receiver	-	0.250" (6.35mm)	-	-
