Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Size / Dimension	Mounting Type	Output	Function	Programmable Type	Type	Operating Temperature	Frequency Stability	Voltage - Supply	Ratings	Spread Spectrum Bandwidth	Current - Supply (Max)	Height - Seated (Max)	Frequency Stability (Total)	Available Frequency Range	Current - Supply (Disable) (Max)	Base Resonator

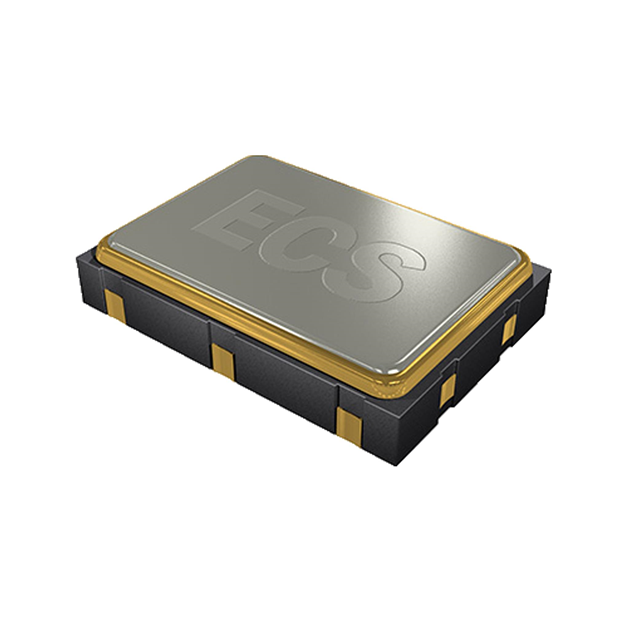

ECX-P22BN-12.000 XTAL OSC XO 12.0000MHZ LVPECL ECS Inc. International Datasheet	0 In Stock	10 : $67.80 Bulk	ECX-P ECSpressCON™	Bulk	Active	6-SMD, No Lead	0.098" L x 0.079" W (2.50mm x 2.00mm)	Surface Mount	LVPECL	Enable/Disable	-	XO (Standard)	-40°C ~ 85°C	±50ppm	2.5V	-	-	48mA	0.039" (1.00mm)	-	-	-	Crystal
ECX-P22BN-200.000 XTAL OSC XO 200.0000MHZ LVPECL ECS Inc. International Datasheet	0 In Stock	10 : $67.80 Bulk	ECX-P ECSpressCON™	Bulk	Active	6-SMD, No Lead	0.098" L x 0.079" W (2.50mm x 2.00mm)	Surface Mount	LVPECL	Enable/Disable	-	XO (Standard)	-40°C ~ 85°C	±50ppm	2.5V	-	-	50mA	0.039" (1.00mm)	-	-	-	Crystal
ECX-P22BN-106.250 XTAL OSC XO 106.2500MHZ LVPECL ECS Inc. International Datasheet	0 In Stock	10 : $67.80 Bulk	ECX-P ECSpressCON™	Bulk	Active	6-SMD, No Lead	0.098" L x 0.079" W (2.50mm x 2.00mm)	Surface Mount	LVPECL	Enable/Disable	-	XO (Standard)	-40°C ~ 85°C	±50ppm	2.5V	-	-	50mA	0.039" (1.00mm)	-	-	-	Crystal
ECX-P22BN-32.768 XTAL OSC XO 32.7680MHZ LVPECL ECS Inc. International Datasheet	0 In Stock	10 : $67.80 Bulk	ECX-P ECSpressCON™	Bulk	Active	6-SMD, No Lead	0.098" L x 0.079" W (2.50mm x 2.00mm)	Surface Mount	LVPECL	Enable/Disable	-	XO (Standard)	-40°C ~ 85°C	±50ppm	2.5V	-	-	48mA	0.039" (1.00mm)	-	-	-	Crystal
ECX-P22CM-148.3516 XTAL OSC XO 148.3516MHZ LVPECL ECS Inc. International Datasheet	0 In Stock	10 : $67.80 Bulk	ECX-P ECSpressCON™	Bulk	Active	6-SMD, No Lead	0.098" L x 0.079" W (2.50mm x 2.00mm)	Surface Mount	LVPECL	Enable/Disable	-	XO (Standard)	-20°C ~ 70°C	±25ppm	2.5V	-	-	50mA	0.039" (1.00mm)	-	-	-	Crystal
ECX-P23BN-148.500 XTAL OSC XO 148.5000MHZ LVPECL ECS Inc. International Datasheet	0 In Stock	10 : $58.30 Bulk	ECX-P ECSpressCON™	Bulk	Active	6-SMD, No Lead	0.126" L x 0.098" W (3.20mm x 2.50mm)	Surface Mount	LVPECL	Enable/Disable	-	XO (Standard)	-40°C ~ 85°C	±50ppm	2.5V	-	-	50mA	0.039" (1.00mm)	-	-	-	Crystal
ECX-P22CM-60.000 XTAL OSC XO 60.0000MHZ LVPECL ECS Inc. International Datasheet	0 In Stock	10 : $67.80 Bulk	ECX-P ECSpressCON™	Bulk	Active	6-SMD, No Lead	0.098" L x 0.079" W (2.50mm x 2.00mm)	Surface Mount	LVPECL	Enable/Disable	-	XO (Standard)	-20°C ~ 70°C	±25ppm	2.5V	-	-	48mA	0.039" (1.00mm)	-	-	-	Crystal
ECX-P22CM-74.250 XTAL OSC XO 74.2500MHZ LVPECL ECS Inc. International Datasheet	0 In Stock	10 : $67.80 Bulk	ECX-P ECSpressCON™	Bulk	Active	6-SMD, No Lead	0.098" L x 0.079" W (2.50mm x 2.00mm)	Surface Mount	LVPECL	Enable/Disable	-	XO (Standard)	-20°C ~ 70°C	±25ppm	2.5V	-	-	48mA	0.039" (1.00mm)	-	-	-	Crystal
ECX-P23BN-133.333 XTAL OSC XO 133.3330MHZ LVPECL ECS Inc. International Datasheet	0 In Stock	10 : $58.30 Bulk	ECX-P ECSpressCON™	Bulk	Active	6-SMD, No Lead	0.126" L x 0.098" W (3.20mm x 2.50mm)	Surface Mount	LVPECL	Enable/Disable	-	XO (Standard)	-40°C ~ 85°C	±50ppm	2.5V	-	-	50mA	0.039" (1.00mm)	-	-	-	Crystal
ECX-P23CM-66.666 XTAL OSC XO 66.6660MHZ LVPECL ECS Inc. International Datasheet	0 In Stock	10 : $58.30 Bulk	ECX-P ECSpressCON™	Bulk	Active	6-SMD, No Lead	0.126" L x 0.098" W (3.20mm x 2.50mm)	Surface Mount	LVPECL	Enable/Disable	-	XO (Standard)	-20°C ~ 70°C	±25ppm	2.5V	-	-	48mA	0.039" (1.00mm)	-	-	-	Crystal
