Power Line Filter Modules

Mfr Part #	Quantity	Price	Series	Package	Product Status	Inductance	Filter Type	Mounting Type	Configuration	Operating Temperature	Termination Style	Applications	Approval Agency	Voltage - Rated DC	Voltage - Rated AC	Frequency - Operating	Voltage - Rated AC (Phase to Ground/Neutral)	Voltage - Rated AC (Phase to Phase)	Current
ID-15A2H LINE FILTER 250VDC/VAC 15A PNLMT DONG IL TECHNOLOGY Datasheet	89 In Stock	1 : $5.98 10 : $54.30 25 : $128.75 40 : $201.20 100 : $479.00 300 : $1,257.00 500 : $2,035.00 1,000 : $3,470.00 2,400 : $7,752.00 Tray	ID	Tray	Active	-	Single Phase	Panel Mount	Single Stage	-25°C ~ 85°C	IEC 320-C14, Quick Connect	General Purpose	CQC, CSA, ENEC, TUV, UR, VDE	250V	250V	50 ~ 60Hz	-	-	15 A
TB4-040HR LINE FILTER 40A CHASSIS MOUNT DONG IL TECHNOLOGY Datasheet	4 In Stock	1 : $319.33 10 : $2,959.10 25 : $7,131.75 Box	TB4	Box	Active	-	Three Phase (Wye)	Chassis Mount	Single Stage	-25°C ~ 100°C	Terminal Block	General Purpose	CE, CSA, ENEC, SEMKO	-	-	50 ~ 60Hz	290 V	500 V	40 A
IH-1022S LINE FILTER 250VDC/VAC 10A PNLMT DONG IL TECHNOLOGY Datasheet	100 In Stock	1 : $5.86 10 : $53.20 25 : $126.00 50 : $246.00 100 : $469.00 250 : $1,025.00 500 : $1,990.00 1,000 : $3,400.00 2,500 : $7,900.00 Box	IH	Box	Active	-	Single Phase	Panel Mount	Single Stage	-25°C ~ 85°C	IEC 320-C14, Solder Lug	General Purpose	CQC, CSA, ENEC, TUV, UR, VDE	250V	250V	50 ~ 60Hz	-	-	10 A

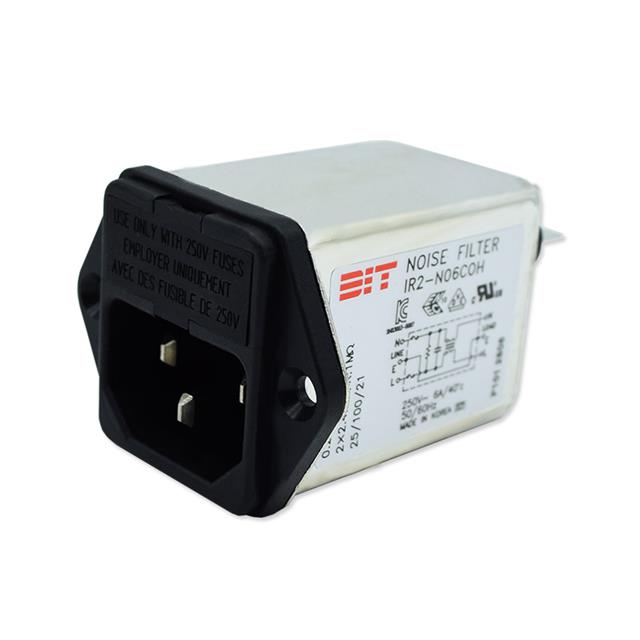

IR2-N06CDH LINE FILTER 250VDC/VAC 6A PNL MT DONG IL TECHNOLOGY Datasheet	98 In Stock	1 : $12.89 10 : $114.20 25 : $274.50 50 : $527.00 100 : $996.00 250 : $2,270.00 500 : $4,245.00 1,000 : $7,790.00 Box	IR2	Box	Active	-	Single Phase	Panel Mount	Single Stage	-25°C ~ 85°C	IEC 320-C14, Quick Connect	Medical	cURus, ENEC, VDE	250V	250V	50 ~ 60Hz	-	-	6 A
ID-0342S LINE FILTER 250VDC/VAC 3A PNL MT DONG IL TECHNOLOGY Datasheet	65 In Stock	1 : $5.48 10 : $49.80 25 : $117.75 50 : $230.00 100 : $438.00 250 : $960.00 500 : $1,865.00 1,000 : $3,180.00 2,500 : $7,400.00 Box	ID	Box	Active	-	Single Phase	Panel Mount	Single Stage	-25°C ~ 85°C	IEC 320-C14, Solder Lug	General Purpose	CQC, CSA, ENEC, TUV, UR, VDE	250V	250V	50 ~ 60Hz	-	-	3 A
TB1-40A0D0H LINE FILTER 250VDC/VAC 40A CHAS DONG IL TECHNOLOGY Datasheet	21 In Stock	1 : $39.13 10 : $342.60 25 : $819.50 50 : $1,586.00 100 : $3,067.00 250 : $7,242.50 Box	TB1	Box	Active	-	Single Phase	Chassis Mount	Two Stage	-25°C ~ 100°C	Terminal Block	General Purpose	CE, cCSAus, ENEC, SEMKO	250V	250V	50 ~ 60Hz	-	-	40 A
TBB-20BDD3B LINE FILTER 250VDC/VAC 20A DIN DONG IL TECHNOLOGY Datasheet	0 In Stock	1 : $16.25 10 : $140.80 40 : $526.00 80 : $928.00 280 : $3,032.40 520 : $5,512.00 Box	TBB	Box	Active	-	Single Phase	DIN Rail	Single Stage	-25°C ~ 85°C	Terminal Block	General Purpose	CE, CQC, cCSAus, ENEC, SEMKO	250V	250V	50 ~ 60Hz	-	-	20 A
IG-0342P LINE FILTER 250VDC/VAC 3A PNL MT DONG IL TECHNOLOGY Datasheet	1 In Stock	1 : $5.45 10 : $49.50 25 : $117.25 50 : $229.00 100 : $436.00 250 : $955.00 500 : $1,855.00 1,000 : $3,160.00 2,500 : $7,375.00 Box	IG	Box	Active	-	Single Phase	Panel Mount	Single Stage	-25°C ~ 85°C	IEC 320-C14, PC Pins	General Purpose	CQC, CSA, TUV, UR, VDE	250V	250V	50 ~ 60Hz	-	-	3 A
CA5-V43 LINE FILTER 250VDC/VAC 5A CHASS DONG IL TECHNOLOGY Datasheet	0 In Stock	1 : $11.03 10 : $99.30 25 : $234.00 50 : $456.00 100 : $888.00 250 : $1,980.00 500 : $3,720.00 1,000 : $6,570.00 Box	CA5	Box	Active	-	Single Phase	Chassis Mount	Single Stage	-25°C ~ 85°C	Wire Leads	General Purpose	CSA, TUV, UR	250V	250V	50 ~ 60Hz	-	-	5 A

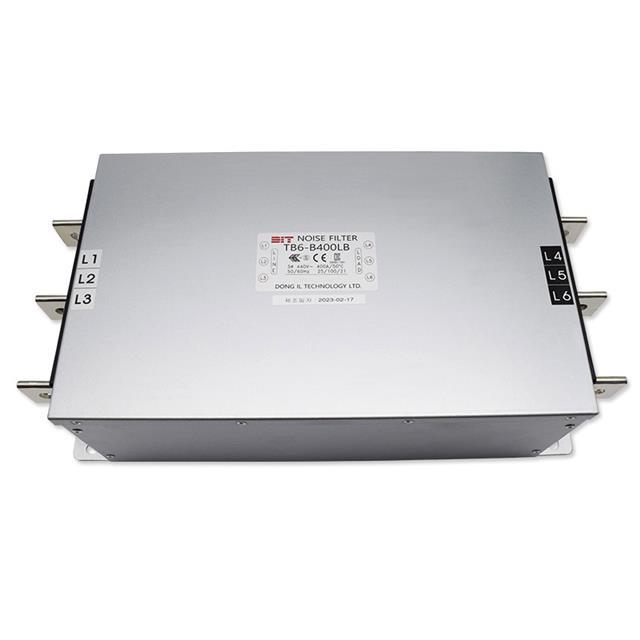

TB6-B400LBS LINE FILTER 400A CHASSIS MOUNT DONG IL TECHNOLOGY Datasheet	0 In Stock	1 : $602.94 10 : $5,587.20 Box	TB6-B	Box	Active	-	Three Phase (Delta)	Chassis Mount	Two Stage	-25°C ~ 100°C	Terminal Block	General Purpose	CE, CSA, ENEC, SEMKO	-	-	50 ~ 60Hz	254 V	440 V	400 A
