Power Line Filter Modules

Mfr Part #	Quantity	Price	Series	Package	Product Status	Inductance	Filter Type	Mounting Type	Configuration	Operating Temperature	Termination Style	Applications	Approval Agency	Voltage - Rated DC	Voltage - Rated AC	Frequency - Operating	Voltage - Rated AC (Phase to Ground/Neutral)	Voltage - Rated AC (Phase to Phase)	Current

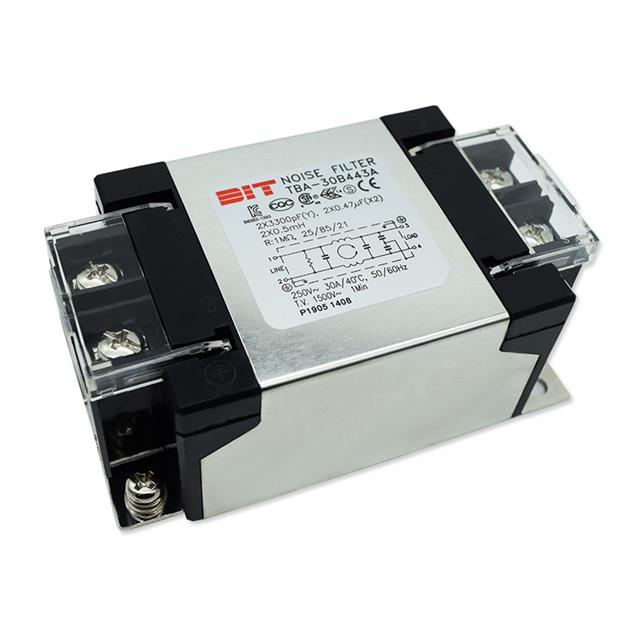

TBA-30B443A LINE FILTER 250VDC/VAC 30A CHAS DONG IL TECHNOLOGY Datasheet	29 In Stock	1 : $22.81 10 : $199.80 25 : $477.75 50 : $925.00 100 : $1,788.00 250 : $4,222.50 500 : $8,200.00 Box	TBA	Box	Active	-	Single Phase	Chassis Mount	Single Stage	-25°C ~ 85°C	Terminal Block	General Purpose	CE, CQC, CSA, ENEC, SEMKO	250V	250V	50 ~ 60Hz	-	-	30 A
DS1-T08 LINE FILTER 250VDC/VAC 8A CHASS DONG IL TECHNOLOGY Datasheet	50 In Stock	1 : $15.73 10 : $139.40 25 : $335.25 50 : $643.50 100 : $1,216.00 250 : $2,770.00 500 : $5,185.00 1,000 : $9,510.00 Box	DS1	Box	Active	-	Single Phase	Chassis Mount	Single Stage	-25°C ~ 85°C	Threaded Post (M4)	General Purpose	CSA, TUV, UR	250V	250V	50 ~ 60Hz	-	-	8 A
IR3-N03C2H LINE FILTER 250VDC/VAC 3A PNL MT DONG IL TECHNOLOGY Datasheet	60 In Stock	1 : $13.53 10 : $119.90 25 : $288.25 50 : $553.50 100 : $1,046.00 250 : $2,382.50 500 : $4,460.00 1,000 : $8,180.00 Box	IR3	Box	Active	-	Single Phase	Panel Mount	Single Stage	-25°C ~ 85°C	IEC 320-C14, Quick Connect	Medical	CSA, ENEC, UR, VDE	250V	250V	50 ~ 60Hz	-	-	3 A
TB4-080GR LINE FILTER 80A CHASSIS MOUNT DONG IL TECHNOLOGY Datasheet	4 In Stock	1 : $302.52 10 : $2,803.30 25 : $6,756.25 Box	TB4	Box	Active	-	Three Phase (Wye)	Chassis Mount	Single Stage	-25°C ~ 100°C	Terminal Block	General Purpose	CE, CSA, ENEC, SEMKO	-	-	50 ~ 60Hz	290 V	500 V	80 A
IR2-N04C2H LINE FILTER 250VDC/VAC 4A PNL MT DONG IL TECHNOLOGY Datasheet	101 In Stock	1 : $12.62 10 : $111.90 25 : $269.00 50 : $516.50 100 : $975.00 250 : $2,222.50 500 : $4,160.00 1,000 : $7,630.00 Box	IR2	Box	Active	-	Single Phase	Panel Mount	Single Stage	-25°C ~ 85°C	IEC 320-C14, Quick Connect	Medical	cURus, ENEC, VDE	250V	250V	50 ~ 60Hz	-	-	4 A
TB4-016H LINE FILTER 16A CHASSIS MOUNT DONG IL TECHNOLOGY Datasheet	6 In Stock	1 : $161.44 10 : $1,496.00 25 : $3,605.50 50 : $7,157.00 Box	TB4	Box	Active	-	Three Phase (Wye)	Chassis Mount	Single Stage	-25°C ~ 100°C	Terminal Block	General Purpose	CE, CSA, ENEC, SEMKO	-	-	50 ~ 60Hz	290 V	500 V	16 A
TB6-4300BC62 LINE FILTER 300A CHASSIS MOUNT DONG IL TECHNOLOGY Datasheet	2 In Stock	1 : $990.79 10 : $9,088.00 Box	TB6-2/4	Box	Active	-	Three Phase (Delta)	Chassis Mount	Two Stage	-25°C ~ 100°C	Terminal Post	General Purpose	CE, ENEC, SEMKO	-	-	50 ~ 60Hz	250 V	440 V	300 A
TB4-060GR LINE FILTER 60A CHASSIS MOUNT DONG IL TECHNOLOGY Datasheet	4 In Stock	1 : $280.53 10 : $2,599.60 25 : $6,265.25 Box	TB4	Box	Active	-	Three Phase (Wye)	Chassis Mount	Single Stage	-25°C ~ 100°C	Terminal Block	General Purpose	CE, CSA, ENEC, SEMKO	-	-	50 ~ 60Hz	290 V	500 V	60 A
IH-0242H LINE FILTER 250VDC/VAC 2A PNL MT DONG IL TECHNOLOGY Datasheet	99 In Stock	1 : $5.66 10 : $51.40 25 : $121.50 50 : $237.50 100 : $452.00 250 : $990.00 500 : $1,925.00 1,000 : $3,280.00 2,500 : $7,625.00 Box	IH	Box	Active	-	Single Phase	Panel Mount	Single Stage	-25°C ~ 85°C	IEC 320-C14, Quick Connect	General Purpose	CQC, CSA, ENEC, TUV, UR, VDE	250V	250V	50 ~ 60Hz	-	-	2 A
TBA-16B443B LINE FILTER 250VDC/VAC 16A CHAS DONG IL TECHNOLOGY Datasheet	30 In Stock	1 : $25.93 10 : $227.10 25 : $543.25 50 : $1,051.50 100 : $2,033.00 250 : $4,802.50 500 : $9,325.00 Box	TBA	Box	Active	-	Single Phase	Chassis Mount	Single Stage	-25°C ~ 85°C	Terminal Block	General Purpose	CE, CQC, CSA, ENEC, SEMKO	250V	250V	50 ~ 60Hz	-	-	16 A
