Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Mounting Type	Voltage - Input	Programmable Type	Number of Macrocells	Supplier Device Package	Speed	DigiKey Programmable

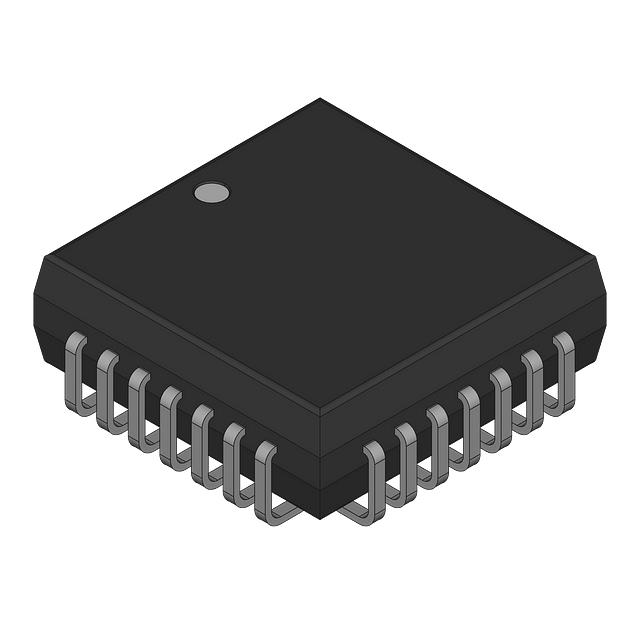

ISPGAL22V10AB-28LJ IC PLD 10MC 2.8NS 28PLCC Lattice Semiconductor Datasheet	74 Marketplace	74 : $393.68 Bulk	ispGAL™	Bulk	Active	28-LCC (J-Lead)	Surface Mount	-	EE PLD	10	28-PLCC (11.51x11.51)	2.8 ns	Not Verified
ISPGAL22V10AV-75LSN IC PLD 10MC 7.5NS 32QFNS Lattice Semiconductor Datasheet	3,557 Marketplace	167 : $300.60 Bulk	ispGAL™	Bulk	Active	32-VFQFN Exposed Pad	Surface Mount	-	EE PLD	10	32-QFNS (5x5)	7.5 ns	Not Verified
GAL16V8Z-12QP EE PLD, 15NS, PAL-TYPE, CMOS Lattice Semiconductor Datasheet	141 Marketplace	77 : $300.30 Bulk	GAL®16V8	Bulk	Active	20-DIP (0.300", 7.62mm)	Through Hole	4.75V ~ 5.25V	EE PLD	8	20-DIP	12 ns	Not Verified
GAL16LV8ZD-15QJN SPLD GAL FAMILY Lattice Semiconductor Datasheet	6,310 Marketplace	201 : $301.50 Bulk	GAL16LV8ZD	Bulk	Active	-	-	-	-	-	-	-	Not Verified
GAL20V8Z-12QP IC CPLD 8MC 12NS 24DIP Lattice Semiconductor Datasheet	1,193 Marketplace	60 : $302.40 Bulk	GAL20V8Z	Bulk	Active	24-DIP (0.300", 7.62mm)	Through Hole	-	EE PLD	8	24-PDIP	-	Not Verified
ISPGAL22V10AV-75LJ IC PLD 10MC 7.5NS 28PLCC Lattice Semiconductor Datasheet	1,105 Marketplace	139 : $300.24 Bulk	ispGAL™	Bulk	Active	28-LCC (J-Lead)	Surface Mount	-	EE PLD	10	28-PLCC (11.51x11.51)	7.5 ns	Not Verified
ISPGAL22V10AB-5LN IC PLD 10MC 5NS 32QFN Lattice Semiconductor Datasheet	612 Marketplace	74 : $304.14 Bulk	ispGAL™	Bulk	Active	32-VFQFN Exposed Pad	Surface Mount	-	EE PLD	10	32-QFN (5x5)	5 ns	Not Verified
GAL16V8ZD-12QS SPLD GAL FAMILY Lattice Semiconductor Datasheet	1,043 Marketplace	114 : $302.10 Bulk	GAL®16V8	Bulk	Active	-	-	-	-	-	-	-	Not Verified
PALCE22V10H-7PC/5 EE PLD, 7.5NS, PAL-TYPE Lattice Semiconductor Datasheet	15,987 Marketplace	127 : $300.99 Bulk	PAL®	Bulk	Active	24-DIP (0.300", 7.62mm)	Through Hole	4.75V ~ 5.25V	PAL	10	24-PDIP	7.5 ns	Not Verified
GAL20VP8B-15LJ IC PLD 8MC 15NS 28PLCC Lattice Semiconductor Datasheet	3,327 Marketplace	69 : $302.22 Bulk	GAL20VP8	Bulk	Active	28-LCC (J-Lead)	Surface Mount	-	EE PLD	8	28-PLCC (11.51x11.51)	15 ns	Not Verified
