PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
{{ p.name }}	{{ numberFormat(p.buyQty) }}	{{ priceFormat(p.unitPrice) }}	{{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

Mfr Part #	Quantity	Price	Package	Product Status	Package / Case	Wavelength	Mounting Type	Orientation	Operating Temperature	Viewing Angle	Current - Dark (Id) (Max)	Grade	Current - Collector (Ic) (Max)	Voltage - Collector Emitter Breakdown (Max)	Power - Max	Qualification
OP520 SENSOR PHOTO 935NM TOP VIEW 1206 TT Electronics / Optek Technology Datasheet	0 In Stock	4,000 : $720.00 6,000 : $1,020.00 10,000 : $1,600.00 50,000 : $7,500.00 Tape & Reel (TR)	Tape & Reel (TR)	Obsolete	1206 (3216 Metric)	935nm	Surface Mount	Top View	-25°C ~ 85°C	-	100 nA	-	20 mA	30 V	75 mW	-
OP508FC SENSOR PHOTO 890NM TOP VIEW RAD TT Electronics / Optek Technology Datasheet	0 In Stock	Obsolete	Bulk	Obsolete	Radial	890nm	Through Hole	Top View	-40°C ~ 100°C	120°	100 nA	-	5.1 mA	30 V	100 mW	-
OP599B SENSOR PHOTO 890NM TOP T1 3/4 TT Electronics / Optek Technology Datasheet	0 In Stock	Obsolete	Bulk	Obsolete	T 1 3/4	890nm	Through Hole	Top View	-40°C ~ 100°C	-	100 nA	-	50 mA	30 V	100 mW	-

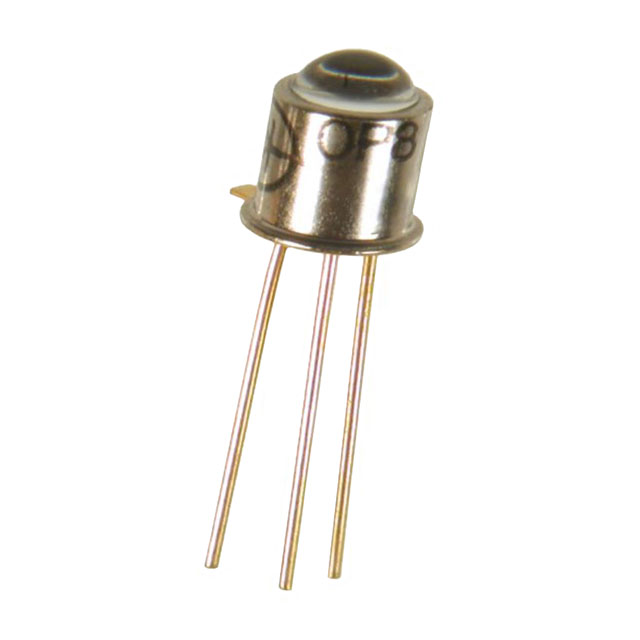

OP800D SENSOR PHOTO 890NM TOP TO206AA TT Electronics / Optek Technology Datasheet	0 In Stock	Obsolete	Bulk	Obsolete	TO-206AA, TO-18-3 Metal Can	890nm	Through Hole	Top View	-65°C ~ 125°C	-	100 nA	-	50 mA	30 V	250 mW	-
OP505D SENSOR PHOTO 935NM TOP VIEW T1 TT Electronics / Optek Technology Datasheet	0 In Stock	Obsolete	Bulk	Obsolete	T-1	935nm	Through Hole	Top View	-40°C ~ 100°C	-	100 nA	-	3 mA	30 V	100 mW	-
OP565B SENSOR PHOTO 930NM SIDE VIEW RAD TT Electronics / Optek Technology Datasheet	0 In Stock	Obsolete	Bulk	Obsolete	Radial	930nm	Through Hole	Side View	-40°C ~ 100°C	56°	100 nA	-	9.8 mA	15 V	100 mW	-
OP525DA SENSOR PHOTO 935NM TOP VIEW 1210 TT Electronics / Optek Technology Datasheet	0 In Stock	1,500 : $405.00 3,000 : $750.00 7,500 : $1,875.00 10,500 : $2,520.00 37,500 : $9,000.00 Tape & Reel (TR)	Tape & Reel (TR)	Obsolete	1210 (3225 Metric)	935nm	Surface Mount	Top View	-40°C ~ 80°C	25°	200 nA	-	30 mA	35 V	100 mW	-
OP500DA SENSOR PHOTO 935NM TOP VIEW 0805 TT Electronics / Optek Technology Datasheet	0 In Stock	3,000 : $630.00 6,000 : $1,200.00 15,000 : $2,850.00 30,000 : $5,700.00 Tape & Reel (TR)	Tape & Reel (TR) Cut Tape (CT)	Obsolete	0805 (2012 Metric)	935nm	Surface Mount	Top View	-25°C ~ 85°C	150°	100 nA	-	32 mA	35 V	100 mW	-
OP798B SENSOR PHOTO 890NM TOP VIEW TO18 TT Electronics / Optek Technology Datasheet	0 In Stock	Obsolete	Bulk	Obsolete	TO-18-2	890nm	Through Hole	Top View	-40°C ~ 100°C	-	100 nA	-	50 mA	30 V	250 mW	-
OP522 SENSOR PHOTO 935NM TOP VIEW 1206 TT Electronics / Optek Technology Datasheet	0 In Stock	4,000 : $680.00 6,000 : $960.00 10,000 : $1,500.00 50,000 : $7,000.00 Tape & Reel (TR)	Tape & Reel (TR) Cut Tape (CT)	Obsolete	1206 (3216 Metric)	935nm	Surface Mount	Top View	-25°C ~ 85°C	-	100 nA	-	20 mA	30 V	75 mW	-

Phototransistors
