PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
{{ p.name }}	{{ numberFormat(p.buyQty) }}	{{ priceFormat(p.unitPrice) }}	{{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Wavelength	Mounting Type	Orientation	Operating Temperature	Viewing Angle	Current - Dark (Id) (Max)	Grade	Current - Collector (Ic) (Max)	Voltage - Collector Emitter Breakdown (Max)	Power - Max	Qualification
SD5491-004-DFC1 INFRARED SENSORS Honeywell Sensing and Productivity Solutions Datasheet	15,146 Marketplace	21 : $71.82 168 : $529.20 2,016 : $6,148.80 4,011 : $11,712.12 Bulk		Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-

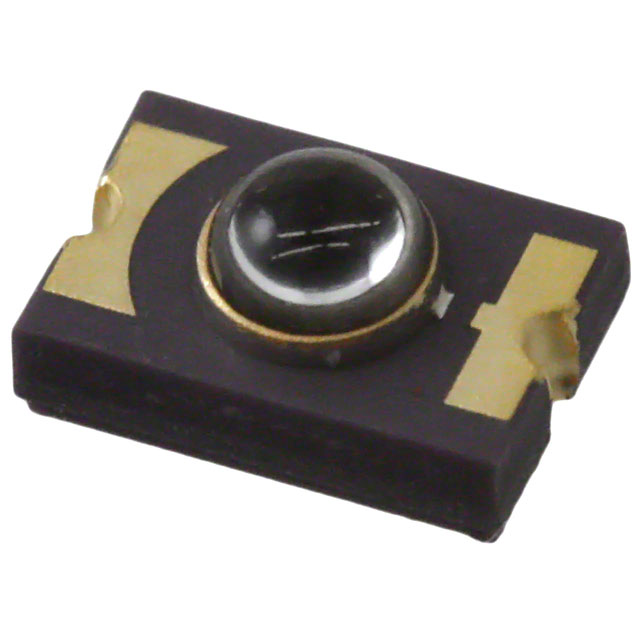

SMD2440-011 SENSOR PHOTO 880NM TOP VIEW 2SMD Honeywell Sensing and Productivity Solutions Datasheet	0 In Stock	1 : $6.07 Tape & Reel (TR)	SMD	Tape & Reel (TR) Cut Tape (CT)	Obsolete	2-SMD, No Lead	880nm	Surface Mount	Top View	-55°C ~ 125°C	28°	100 nA	-	-	30 V	125 mW	-
SDP8406-004 SENSOR PHOTO 935NM SIDE VIEW RAD Honeywell Sensing and Productivity Solutions Datasheet	0 In Stock	200 : $228.00 Bulk		Bulk	Obsolete	Radial	935nm	Through Hole, Right Angle	Side View	-40°C ~ 85°C	50°	100 nA	-	-	30 V	100 mW	-
SD2440-153 PHOTOTRANSISTOR NPN PILL PACK Honeywell Sensing and Productivity Solutions Datasheet	737 Marketplace	22 : $73.70 154 : $475.86 Bulk		Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-
HOAD0110-11 SENSOR IR OPTICAL Honeywell Sensing and Productivity Solutions Datasheet	1,050 Marketplace	3 : $77.10 15 : $355.20 162 : $3,683.88 492 : $10,740.36 Bulk		Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-

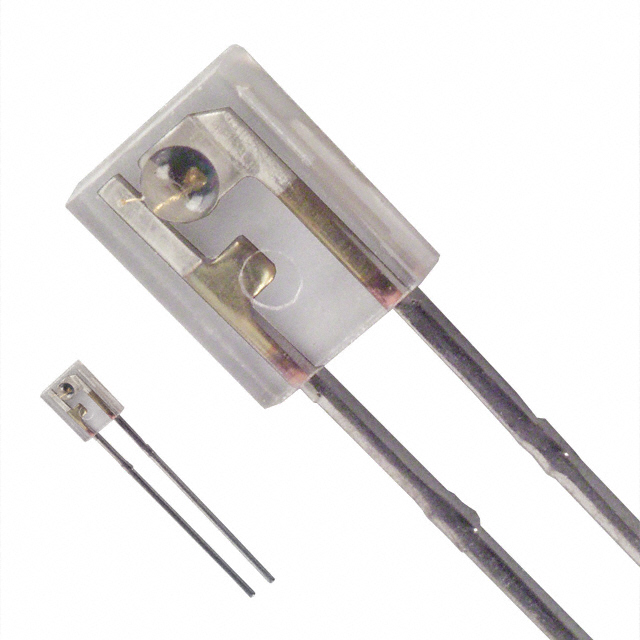

SDP8476-201 SENSOR PHOTO 935NM SIDE VIEW RAD Honeywell Sensing and Productivity Solutions Datasheet	0 In Stock	Obsolete		Bulk	Obsolete	Radial	935nm	Through Hole	Side View	-40°C ~ 85°C	20°	100 nA	-	6 mA	30 V	100 mW	-

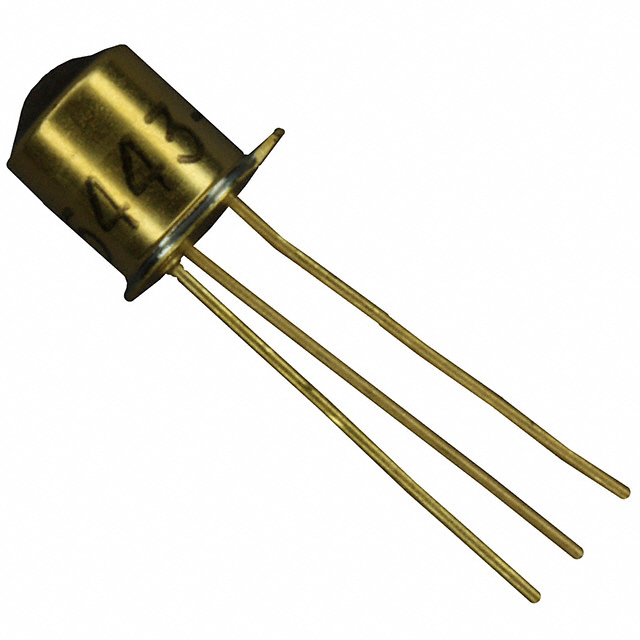

SD5443-003 SENSOR PHOTO TOP VIEW TO46-3 Honeywell Sensing and Productivity Solutions Datasheet	0 In Stock	Obsolete		Bulk	Obsolete	TO-46-3 Metal Can	-	Through Hole	Top View	-55°C ~ 125°C	18°	100 nA	-	8 mA	30 V	150 mW	-
SMD2440-001 SENSOR PHOTO 880NM TOP VIEW 2SMD Honeywell Sensing and Productivity Solutions Datasheet	0 In Stock	Obsolete	SMD	Bulk	Obsolete	2-SMD, No Lead	880nm	Surface Mount	Top View	-55°C ~ 125°C	28°	100 nA	-	-	30 V	125 mW	-
SMD2440-002 SENSOR PHOTO 880NM TOP VIEW 2SMD Honeywell Sensing and Productivity Solutions Datasheet	0 In Stock	Obsolete	SMD	Bulk	Obsolete	2-SMD, No Lead	880nm	Surface Mount	Top View	-55°C ~ 125°C	28°	100 nA	-	-	30 V	125 mW	-

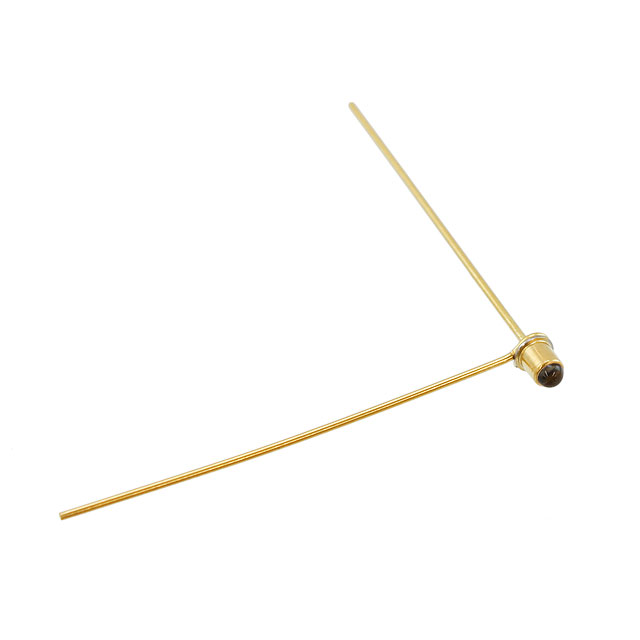

SD1410-003L SENSOR PHOTO 880NM TOP VIEW COAX Honeywell Sensing and Productivity Solutions Datasheet	0 In Stock	Obsolete		Bulk	Obsolete	Coaxial, Metal Can	880nm	Through Hole	Top View	-55°C ~ 125°C	24°	250 nA	-	-	15 V	75 mW	-
