Mfr Part #	Quantity	Price	Series	Package	Product Status	Color	Material	Shape	Thickness	Type	Thermal Resistivity	Usage	Outline	Thermal Conductivity	Adhesive	Backing, Carrier	Storage/Refrigeration Temperature	Shelf Life Start	Shelf Life	Digi-Key Storage

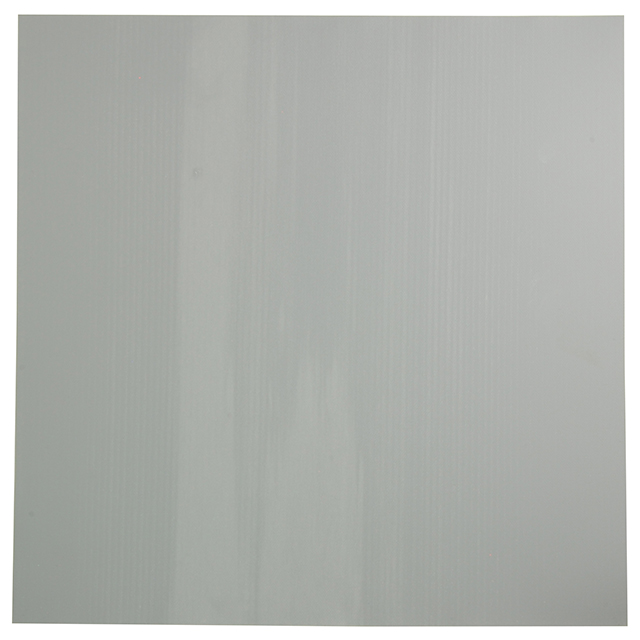

TP0012A THERM PAD 304.8MMX304.8MM GRAY NTE Electronics, Inc Datasheet	10 Marketplace	1 : $37.86 10 : $359.70 20 : $681.40 50 : $1,609.00 100 : $3,142.00 Bag		Bag	Active	Gray	Silicone Rubber	Square	0.0091" (0.230mm)	Conductive Insulator Pad	0.90°C/W	Thermally Conductive	304.80mm x 304.80mm	1.2W/m-K	-	-	-	-	-	-

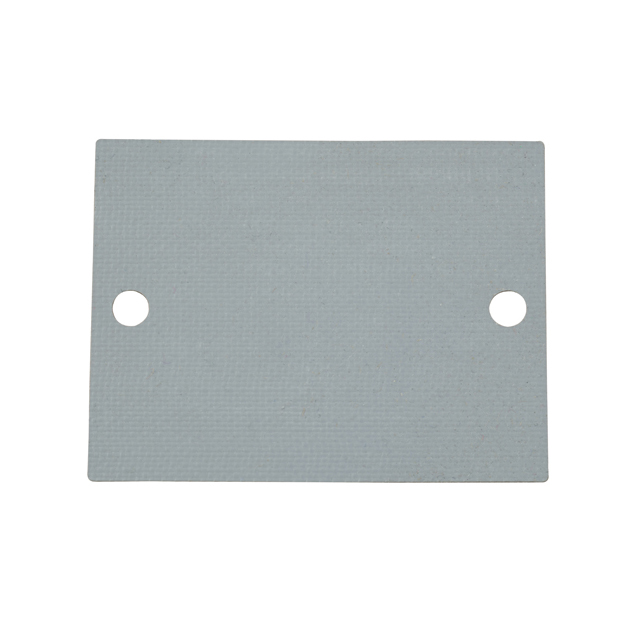

TP0013 THERM PAD 57.4X44.7MM GRAY NTE Electronics, Inc Datasheet	87 Marketplace	1 : $1.78 10 : $16.90 20 : $32.00 50 : $75.50 100 : $148.00 Bag	Thermo-Pad	Bag	Active	Gray	Silicone Rubber	Rectangular	0.0090" (0.229mm)	Pad, Sheet	-	-	57.40mm x 44.70mm	1.2W/m-K	-	-	-	-	-	-

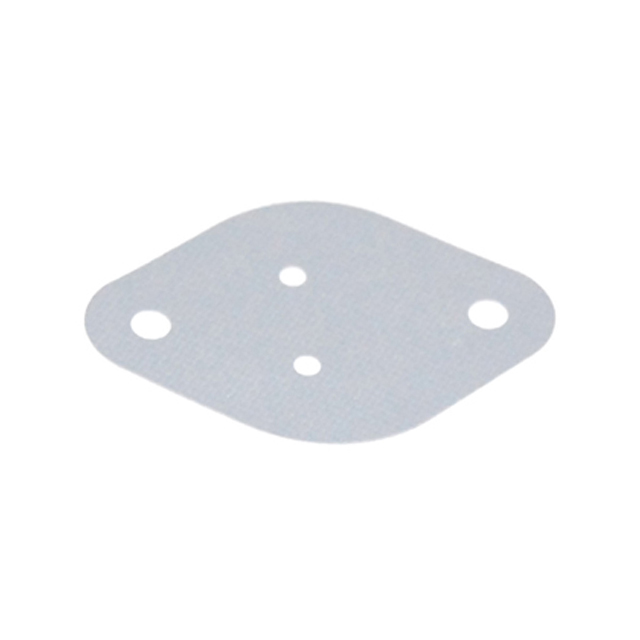

TP0001 THERM PAD 41.91X28.96MM GRAY NTE Electronics, Inc Datasheet	3,734 Marketplace	20 : $8.80 40 : $16.80 60 : $24.00 80 : $29.60 100 : $37.00 Bag	Thermo-Pad	Bag	Active	Gray	Silicone Rubber	Rhombus	0.0090" (0.229mm)	Pad, Sheet	-	TO-3	41.91mm x 28.96mm	1.2W/m-K	-	-	-	-	-	-

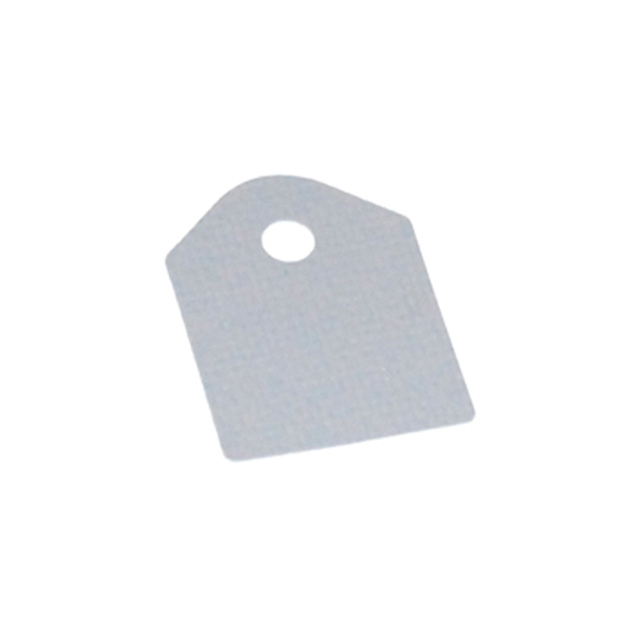

TP0005 THERM PAD 21.97MMX16.51MM GRAY NTE Electronics, Inc Datasheet	3,429 Marketplace	20 : $6.40 40 : $12.00 60 : $17.40 80 : $21.60 100 : $27.00 Bag	Thermo-Pad	Bag	Active	Gray	Silicone Rubber	Rectangular	0.0090" (0.229mm)	Pad, Sheet	-	TO-128	21.97mm x 16.51mm	1.2W/m-K	-	-	-	-	-	-

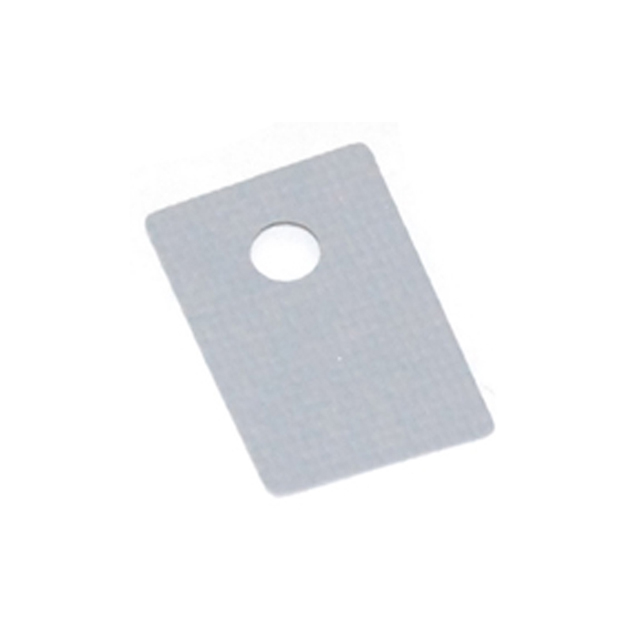

TP0006 THERM PAD 19.05MMX12.7MM GRAY NTE Electronics, Inc Datasheet	234 Marketplace	20 : $5.20 40 : $10.00 60 : $13.80 80 : $17.60 100 : $22.00 Bag	Thermo-Pad	Bag	Active	Gray	Silicone Rubber	Rectangular	0.0090" (0.229mm)	Pad, Sheet	-	TO-220	19.05mm x 12.70mm	1.2W/m-K	-	-	-	-	-	-

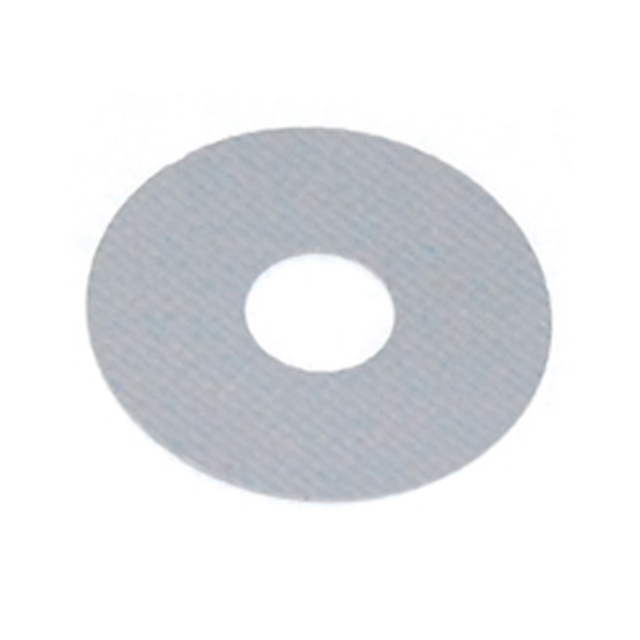

TP0007 THERM PAD 20.3MM DIA GRAY NTE Electronics, Inc Datasheet	10,877 Marketplace	50 : $12.00 100 : $23.00 150 : $33.00 200 : $40.00 250 : $50.00 Bag	Thermo-Pad	Bag	Active	Gray	Silicone Rubber	Round	0.0090" (0.229mm)	Pad, Sheet	-	DO-5	20.30mm Dia	1.2W/m-K	-	-	-	-	-	-

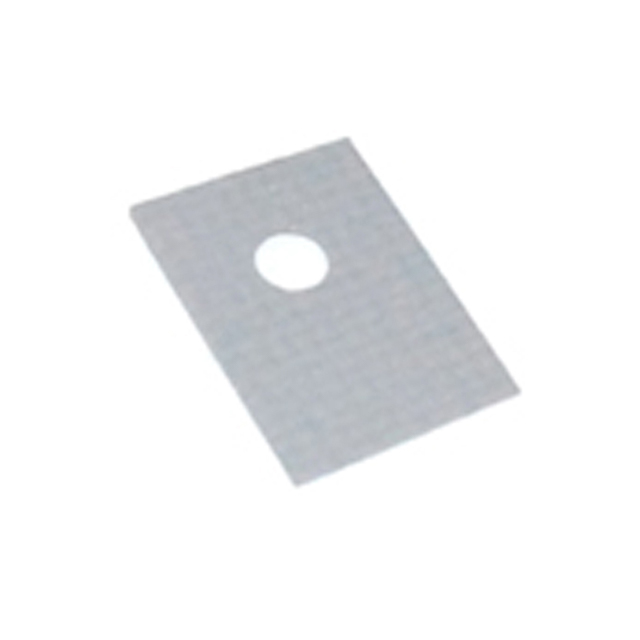

TP0004 THERM PAD 11.1MMX7.92MM GRAY NTE Electronics, Inc Datasheet	39,272 Marketplace	50 : $8.50 100 : $16.00 150 : $22.50 200 : $28.00 250 : $35.00 Bag	Thermo-Pad	Bag	Active	Gray	Silicone Rubber	Rectangular	0.0090" (0.229mm)	Pad, Sheet	-	TO-126	11.10mm x 7.92mm	1.2W/m-K	-	-	-	-	-	-

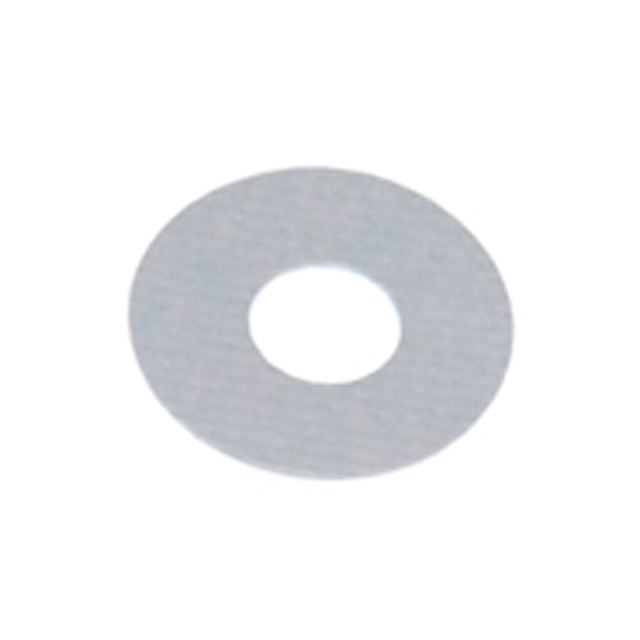

TP0003 THERM PAD 12.7MM DIA GRAY NTE Electronics, Inc Datasheet	4,197 Marketplace	20 : $5.80 40 : $11.20 60 : $15.60 80 : $20.00 100 : $24.00 Bag	Thermo-Pad	Bag	Active	Gray	Silicone Rubber	Round	0.0090" (0.229mm)	Pad, Sheet	-	DO-4	12.70mm Dia	1.2W/m-K	-	-	-	-	-	-
TP0008 THERM PAD 32MMX16.51MM GRAY NTE Electronics, Inc Datasheet	600 Marketplace	10 : $5.10 20 : $9.60 30 : $13.80 40 : $17.20 50 : $21.00 Bag	Thermo-Pad	Bag	Active	Gray	Silicone Rubber	Rectangular	0.0090" (0.229mm)	Pad, Sheet	-	TO-3P	32.00mm x 16.51mm	1.2W/m-K	-	-	-	-	-	-

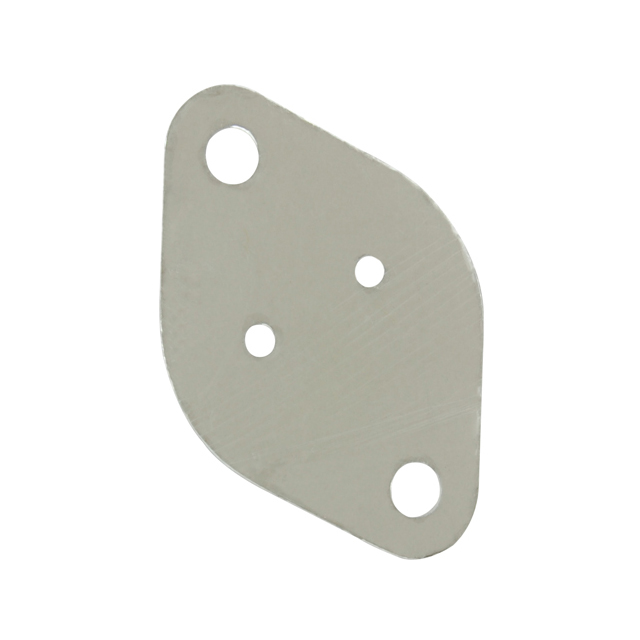

TO-3MICA MICA FOR TO-3 PACKAGE NTE Electronics, Inc Datasheet	3,115 Marketplace	50 : $2.50 100 : $5.00 150 : $7.50 200 : $8.00 250 : $10.00 Bag		Bag	Active	-	-	-	-	-	-	TO-3	-	-	-	-	-	-	-	-
