Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Output Type	Mounting Type	Operating Temperature	Voltage - Supply	Voltage - Forward (Vf) (Typ)	Data Rate	Input Type	Voltage - Isolation	Current - DC Forward (If) (Max)	Inputs - Side 1/Side 2	Supplier Device Package	Rise / Fall Time (Typ)	Common Mode Transient Immunity (Min)	Propagation Delay tpLH / tpHL (Max)	Grade	Number of Channels	Current - Output / Channel	Qualification

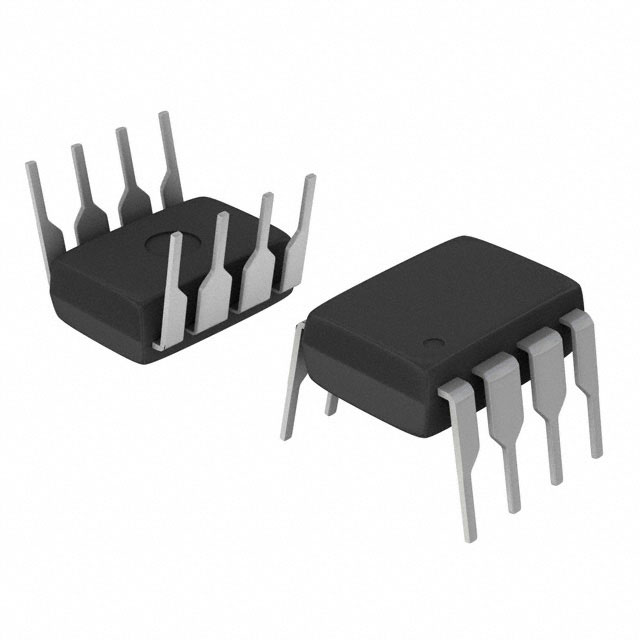

PS2503-2 OPTOISOLATOR 5KV 2CH TRANS 8DIP CEL (California Eastern Laboratories) Datasheet	0 In Stock	Obsolete	NEPOC	Tube	Obsolete	8-DIP (0.300", 7.62mm)	Transistor	Through Hole	-55°C ~ 100°C	-	1.1V	-	DC	5000Vrms	-	-	8-DIP	20µs, 30µs	-	-	-	2	-	-

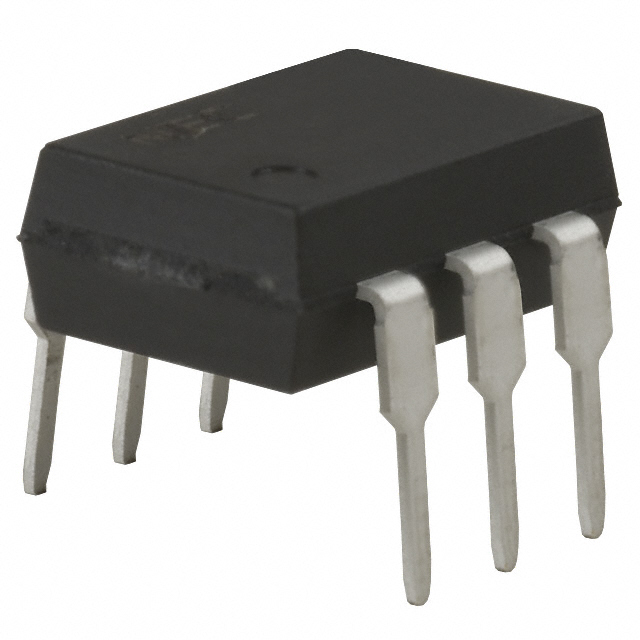

PS7142-1A SSR RELAY SPST-NO 200MA 0-400V CEL (California Eastern Laboratories) Datasheet	0 In Stock	Obsolete	PS, OCMOS	Tube	Obsolete	6-DIP (0.300", 7.62mm)	AC, DC	Through Hole	-	-	-	-	-	-	-	-	6-DIP	-	-	-	-	-	-	-

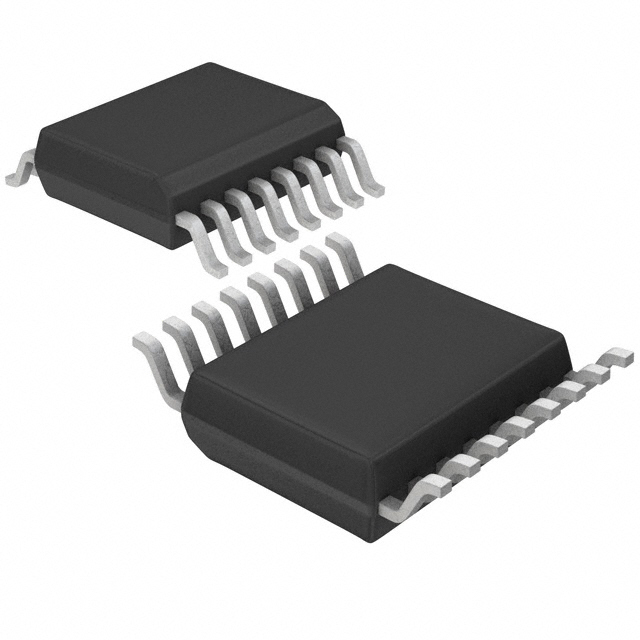

PS2801-4-F3 OPTOISO 2.5KV 4CH TRANS 16-SSOP CEL (California Eastern Laboratories) Datasheet	0 In Stock	Obsolete		Tape & Reel (TR)	Obsolete	16-SOIC (0.173", 4.40mm Width)	Transistor	Surface Mount	-55°C ~ 100°C	-	1.1V	-	DC	2500Vrms	-	-	16-SSOP	3µs, 5µs	-	-	-	4	-	-

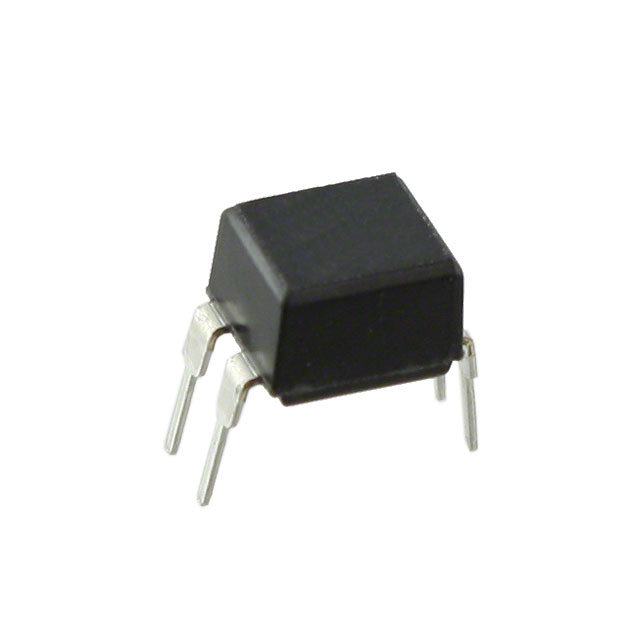

PS2532-1 OPTOISOLATOR 5KV DARL 4DIP CEL (California Eastern Laboratories) Datasheet	0 In Stock	Obsolete	NEPOC	Tube	Obsolete	4-DIP (0.300", 7.62mm)	Darlington	Through Hole	-55°C ~ 100°C	-	1.15V	-	DC	5000Vrms	-	-	4-DIP	100µs, 100µs	-	-	-	1	-	-

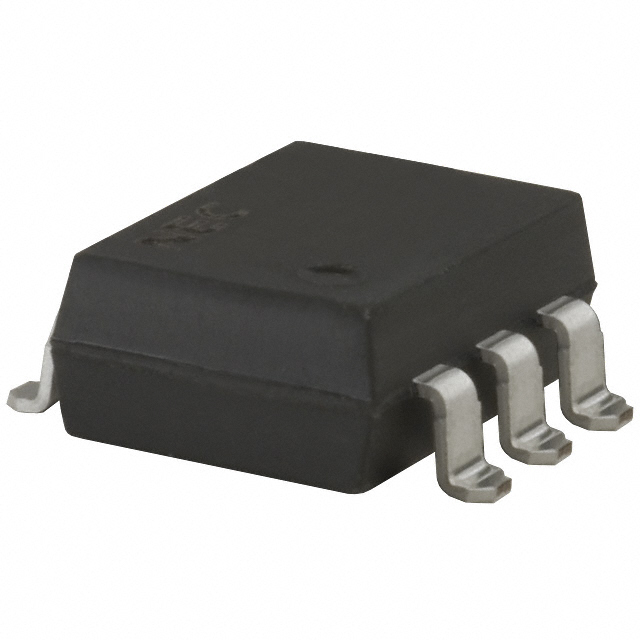

PS710AL-1A-E3 SSR RELAY SPST-NO 1.8A 0-60V CEL (California Eastern Laboratories) Datasheet	0 In Stock	Obsolete	PS, OCMOS	Tape & Reel (TR)	Obsolete	6-SMD (0.300", 7.62mm)	AC, DC	Surface Mount	-	-	-	-	-	-	-	-	6-DIP Gull Wing	-	-	-	-	-	-	-

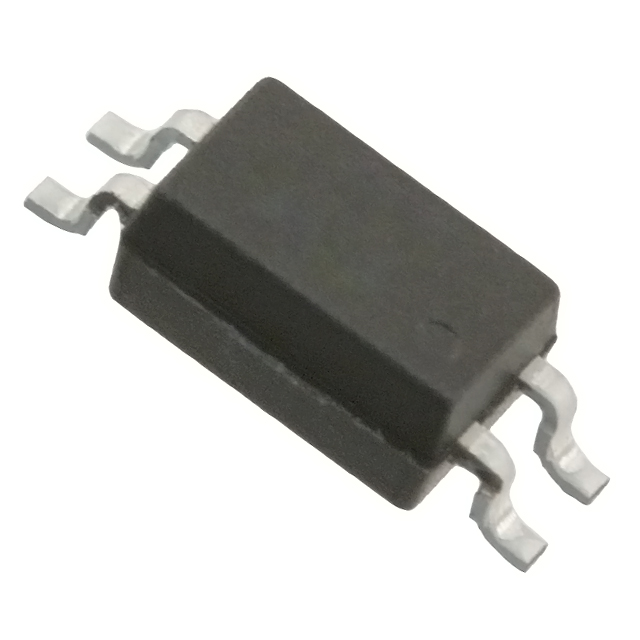

PS2911-1-F3 OPTOISOLATOR 2.5KV TRANS 4-SMD CEL (California Eastern Laboratories) Datasheet	0 In Stock	Obsolete		Tape & Reel (TR)	Obsolete	4-SMD, Flat Leads	Transistor	Surface Mount	-55°C ~ 100°C	-	1.1V	-	DC	2500Vrms	-	-	4-Mini-Flat	5µs, 10µs	-	-	-	1	-	-

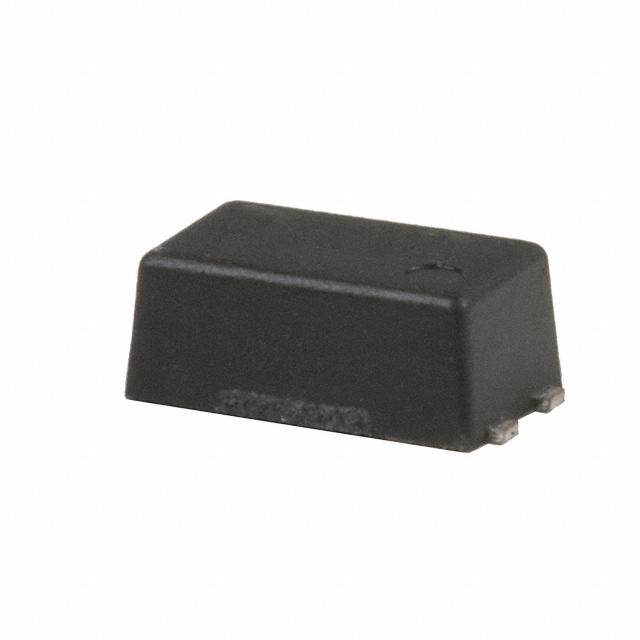

PS2802-1-F3 OPTOISOLATOR 2.5KV DARL 4SOIC CEL (California Eastern Laboratories) Datasheet	0 In Stock	3,500 : $1,575.00 7,000 : $3,080.00 10,500 : $4,515.00 Tape & Reel (TR)	NEPOC	Tape & Reel (TR)	Obsolete	4-SOIC (0.173", 4.40mm Width)	Darlington	Surface Mount	-55°C ~ 100°C	-	1.1V	-	DC	2500Vrms	-	-	4-SSOP	200µs, 200µs	-	-	-	1	-	-
PS2832-1-F3 OPTOISOLATOR 2.5KV DARL 4SOIC CEL (California Eastern Laboratories) Datasheet	0 In Stock	3,500 : $1,645.00 7,000 : $3,220.00 10,500 : $4,725.00 Tape & Reel (TR)	NEPOC	Tape & Reel (TR)	Obsolete	4-SOIC (0.173", 4.40mm Width)	Darlington	Surface Mount	-55°C ~ 100°C	-	1.2V	-	DC	2500Vrms	-	-	4-SOP	20µs, 5µs	-	-	-	1	-	-
PS2503-2-A OPTOISOLATOR 5KV 2CH TRANS 8DIP CEL (California Eastern Laboratories) Datasheet	0 In Stock	Obsolete	NEPOC	Tube	Obsolete	8-DIP (0.300", 7.62mm)	Transistor	Through Hole	-55°C ~ 100°C	-	1.1V	-	DC	5000Vrms	-	-	8-DIP	20µs, 30µs	-	-	-	2	-	-
PS2932-1-A OPTOISOLATOR 2.5KV DARL 4SMD CEL (California Eastern Laboratories) Datasheet	0 In Stock	Obsolete	NEPOC	Bulk	Obsolete	4-SMD, Flat Leads	Darlington	Surface Mount	-55°C ~ 100°C	-	1.1V	-	DC	2500Vrms	-	-	4-Mini-Flat	20µs, 5µs	-	-	-	1	-	-
