Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Output Type	Mounting Type	Operating Temperature	Voltage - Supply	Voltage - Forward (Vf) (Typ)	Data Rate	Input Type	Voltage - Isolation	Current - DC Forward (If) (Max)	Inputs - Side 1/Side 2	Supplier Device Package	Rise / Fall Time (Typ)	Common Mode Transient Immunity (Min)	Propagation Delay tpLH / tpHL (Max)	Grade	Number of Channels	Current - Output / Channel	Qualification
GP2Y1001AU0F SENSOR AIR DUST QUALITY Sharp Microelectronics Datasheet	0 In Stock	Obsolete		Tube	Obsolete	Module, Single Pass Through	-	Chassis Mount	-10°C ~ 65°C	10.2V ~ 13.8V	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PC847XJ0000F OPTOISOLTR 5KV 4CH TRANS 16-DIP Sharp Microelectronics Datasheet	0 In Stock	Obsolete		Tube	Obsolete	16-DIP (0.300", 7.62mm)	Transistor	Through Hole	-30°C ~ 100°C	-	1.2V	-	DC	5000Vrms	-	-	16-DIP	4µs, 3µs	-	-	-	4	-	-

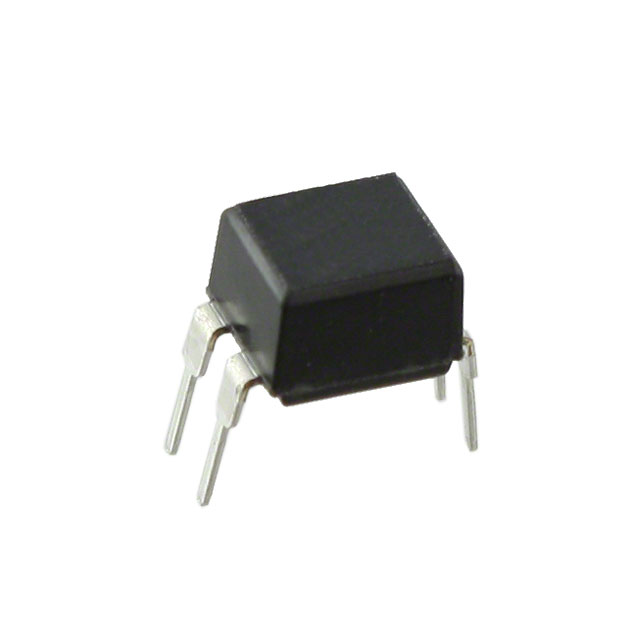

PC853XJ0000F OPTOISOLATOR 5KV DARL 4DIP Sharp Microelectronics Datasheet	0 In Stock	Obsolete		Tube	Obsolete	4-DIP (0.300", 7.62mm)	Darlington	Through Hole	-30°C ~ 100°C	-	1.2V	-	DC	5000Vrms	-	-	4-DIP	100µs, 20µs	-	-	-	1	-	-
PC123Y2J000F OPTOISOLATR 5KV TRANSISTOR 4-DIP Sharp Microelectronics Datasheet	0 In Stock	Obsolete		Tube	Obsolete	4-DIP (0.300", 7.62mm)	Transistor	Through Hole	-30°C ~ 100°C	-	1.2V	-	DC	5000Vrms	-	-	4-DIP	4µs, 3µs	-	-	-	1	-	-

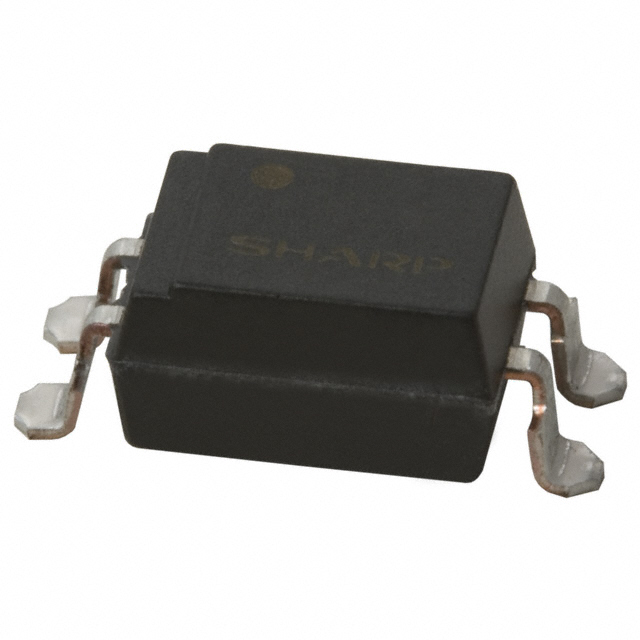

PC852XIJ000F OPTOISOLATOR 5KV DARL 4SMD Sharp Microelectronics Datasheet	0 In Stock	Obsolete		Tube	Obsolete	4-SMD, Gull Wing	Darlington	Surface Mount	-30°C ~ 100°C	-	1.2V	-	DC	5000Vrms	-	-	4-SMD	100µs, 20µs	-	-	-	1	-	-

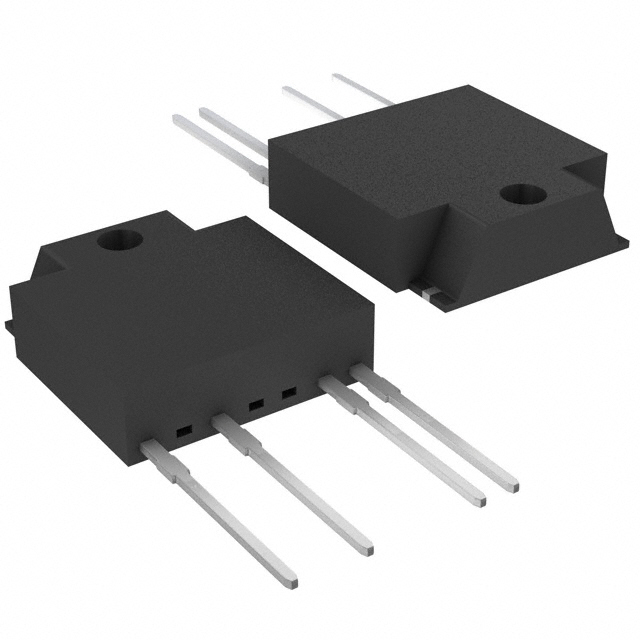

S108T02F SSR RELAY SPST-NO 8A 80-120V Sharp Microelectronics Datasheet	0 In Stock	Obsolete	S108	Tube	Obsolete	4-SIP	AC, Zero Cross	Through Hole	-	-	-	-	-	-	-	-	4-SIP	-	-	-	-	-	-	-

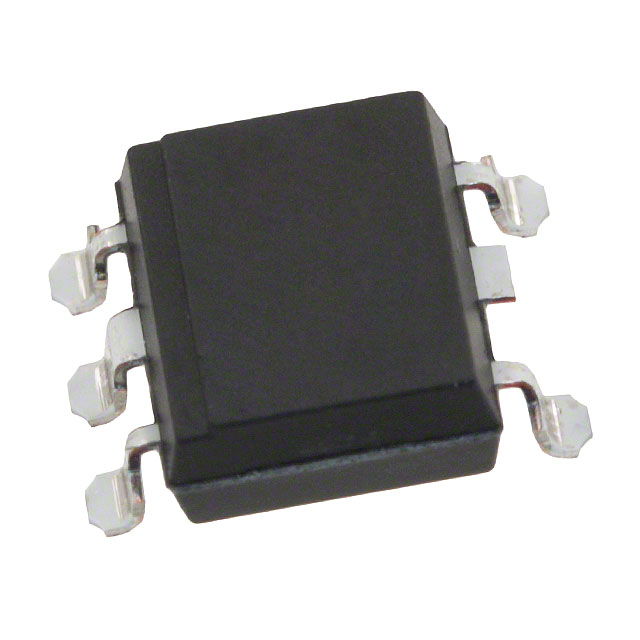

PC3SD21NXZCF OPTOISOLATOR 5KV TRIAC 6SMD Sharp Microelectronics Datasheet	0 In Stock	Obsolete		Tube	Obsolete	6-SMD	Triac	Surface Mount	-30°C ~ 100°C	-	1.2V	-	-	5000Vrms	-	-	6-SMD	-	-	-	-	1	-	-
S102T01F SSR RELAY SPST-NO 2A 80-120V Sharp Microelectronics Datasheet	0 In Stock	Obsolete	S102	Tube	Obsolete	4-SIP	AC	Through Hole	-	-	-	-	-	-	-	-	4-SIP	-	-	-	-	-	-	-
S112S01F SSR RELAY SPST-NO 12A 80-120V Sharp Microelectronics Datasheet	0 In Stock	Obsolete	S112	Tube	Obsolete	4-SIP	AC	Through Hole	-	-	-	-	-	-	-	-	4-SIP	-	-	-	-	-	-	-
S202T01F SSR RELAY SPST-NO 2A 80-240V Sharp Microelectronics Datasheet	0 In Stock	Obsolete	S202	Tube	Obsolete	4-SIP	AC	Through Hole	-	-	-	-	-	-	-	-	4-SIP	-	-	-	-	-	-	-
