Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Output Type	Mounting Type	Operating Temperature	Voltage - Supply	Voltage - Forward (Vf) (Typ)	Data Rate	Input Type	Voltage - Isolation	Current - DC Forward (If) (Max)	Inputs - Side 1/Side 2	Supplier Device Package	Rise / Fall Time (Typ)	Common Mode Transient Immunity (Min)	Propagation Delay tpLH / tpHL (Max)	Grade	Number of Channels	Current - Output / Channel	Qualification

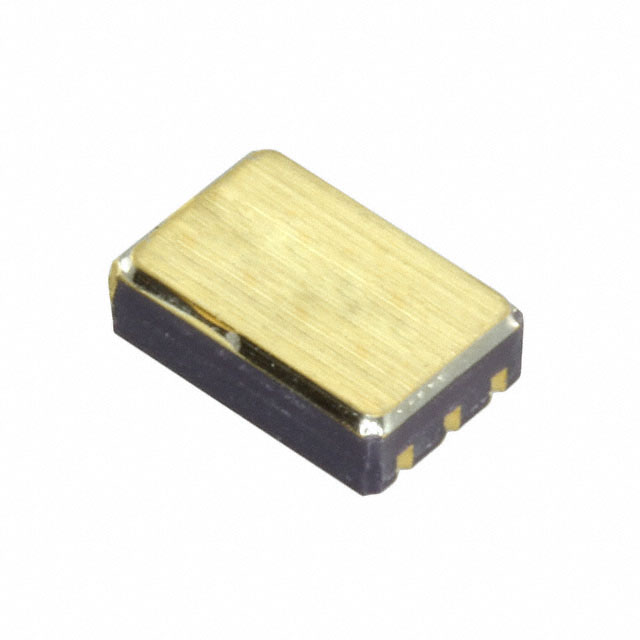

OLS500 HIGH CMR, HIGH-SPEED LOGIC GATE Skyworks Solutions, Inc. Datasheet	950 In Stock	1 : $44.41 Tube		Tube	Active	6-CLCC	Open Collector, Schottky Clamped	Surface Mount	-55°C ~ 125°C	7V	1.8V	10Mbps	DC	1500VDC	40mA	1/0	6-CLCC (6.22x4.32)	-	1kV/µs	60ns, 60ns	-	1	25 mA	-
OLI500 MINIATURE HIGH CMR, HIGH-SPEED L Skyworks Solutions, Inc. Datasheet	749 In Stock	1 : $40.39 Tube		Tube	Active	6-CLCC	Open Collector, Schottky Clamped	Surface Mount	-55°C ~ 125°C	7V	1.8V	10Mbps	DC	1500VDC	40mA	1/0	6-CLCC (2.79x2.54)	-	1kV/µs	60ns, 60ns	-	1	25 mA	-
OLS500SB HERMETIC SURFACE MOUNT HIGH-SPEE Skyworks Solutions, Inc. Datasheet	0 In Stock	1 : $288.71 10 : $2,765.10 25 : $6,760.25 Bulk		Bulk	Active	6-CLCC	Open Collector, Schottky Clamped	Surface Mount	-55°C ~ 125°C	7V	1.8V	10Mbps	DC	1500VDC	40mA	1/0	6-CLCC (6.22x4.32)	-	1kV/µs	60ns, 60ns	-	1	25 mA	-

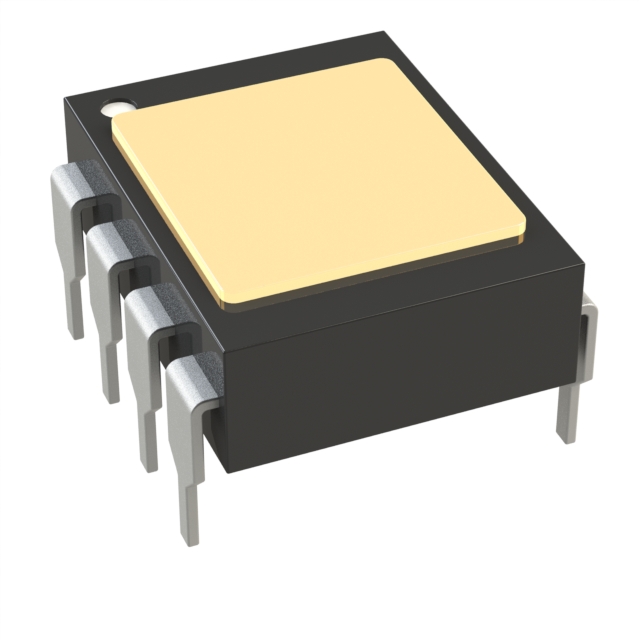

OLS600SB LINEAR OPTOCOUPLER Skyworks Solutions, Inc. Datasheet	0 In Stock	1 : $299.15 10 : $2,865.10 25 : $7,004.75 Bulk		Bulk	Active	8-DIP (0.300", 7.62mm)	Tri-State	Through Hole	-55°C ~ 125°C	18V	1.6V	-	DC	1500V	20mA	1/0	8-DIP	10ns, 10ns	1kV/µs	-	-	1	40 mA	-
SI4133M-EVB BOARD EVALUATION FOR SI4133 Skyworks Solutions, Inc. Datasheet	0 In Stock	1 : $220.94 Bulk		Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SILINKPS-EVB DAUGHTER CARD PROSLIC PS Skyworks Solutions, Inc. Datasheet	0 In Stock	Obsolete		Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SI2417FT18-EVB BOARD EVAL SI2415 + SI3008 24PI Skyworks Solutions, Inc. Datasheet	0 In Stock	1 : $143.42 10 : $1,373.60 25 : $3,358.25 Bulk	ISOmodem®	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SI8440AB-C-IS DIGITAL ISOLATOR 4CH 16SOIC Skyworks Solutions, Inc. Datasheet	0 In Stock	46 : $161.00 Tube		Tube	Not For New Designs	16-SOIC (0.295", 7.50mm Width)	-	Surface Mount	-40°C ~ 125°C	2.7V ~ 5.5V	-	1Mbps	-	2500Vrms	-	4/0	16-SOIC	3.8ns, 2.8ns	25kV/µs (Typ)	35ns, 35ns	-	4	-	-
ATN3580-40 RF ATTENUATOR 40DB MODULE Skyworks Solutions, Inc. Datasheet	0 In Stock	100 : $514.00 300 : $1,392.00 500 : $2,080.00 1,000 : $3,510.00 2,500 : $8,350.00 Tray	ATN3580	Tray	Active	Module	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SMARTPSE24-KIT KIT EVAL REF 24PORT SPI/UART Skyworks Solutions, Inc. Datasheet	0 In Stock	Obsolete		Box	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
