LCD, OLED Character and Numeric

Mfr Part #	Quantity	Price	Series	Package	Product Status	Display Type	Display Mode	Backlight	Interface	Operating Temperature	Voltage - Supply	Viewing Area	Character Size	Display Format	Character Format	Dot Size	Controller Type	Outline L x W x H	Text Color	Background Color	Number of Characters
OD-357 LCD GLASS MOD 3.5DIG TN+ REFL Orient Display Datasheet	414 Marketplace	1 : $4.38 Box		Box	Active	TN - Twisted Nematic	Reflective	-	-	-20°C ~ 70°C	3V	44.45mm L x 16.51mm W	12.71mm H x 6.68mm W	3.5 x 1	7-Segment	-	-	50.80mm x 30.48mm x 2.85mm	Black	Gray	3.5
OD-894A LCD GLASS MOD 6DIG TN+ TRANSF Orient Display Datasheet	124 Marketplace	1 : $5.00 Box		Box	Active	TN - Twisted Nematic	Transflective	-	-	-20°C ~ 80°C	5V	87.63mm L x 19.05mm W	11.00mm H x 6.20mm W	8 x 1	14-Segment	-	-	93.98mm x 30.48mm x 2.80mm	Black	Gray	8
AMC2001AR-B-Y6WFDY-AIA 20x1 Character STN Pos. Y/G Orient Display Datasheet	246 Marketplace	1 : $15.42 25 : $368.75 50 : $703.50 100 : $1,346.00 150 : $1,963.50 200 : $2,544.00 Bag		Bag	Active	STN - Y/G	Transflective	LED - Yellow/Green	Parallel, 8-Bit	-20°C ~ 70°C	4.5V ~ 5.5V	147.00mm L x 18.70mm W	12.70mm H x 5.90mm W	20 x 1	5 x 8 Dots	1.10mm W x 1.50mm H	AiP31066L	182.00mm x 43.50mm x 14.00mm	Black	Green	20.0
AMC0802BR-B-G6WFDY LCD COB CHAR 8X2 GRAY TRANSF Orient Display Datasheet	187 Marketplace	1 : $5.98 25 : $132.50 50 : $230.50 100 : $426.00 150 : $595.50 200 : $736.00 Box		Box	Active	STN - Super-Twisted Nematic	Transflective	LED - Yellow/Green	Parallel, 8-Bit	-20°C ~ 70°C	4.5V ~ 5.5V	38.00mm L x 16.00mm W	5.56mm H x 2.96mm W	8 x 2	5 x 8 Dots	0.56mm W x 0.66mm H	S6A0069	58.00mm x 32.00mm x 14.00mm	Dark	Yellow/Green	16

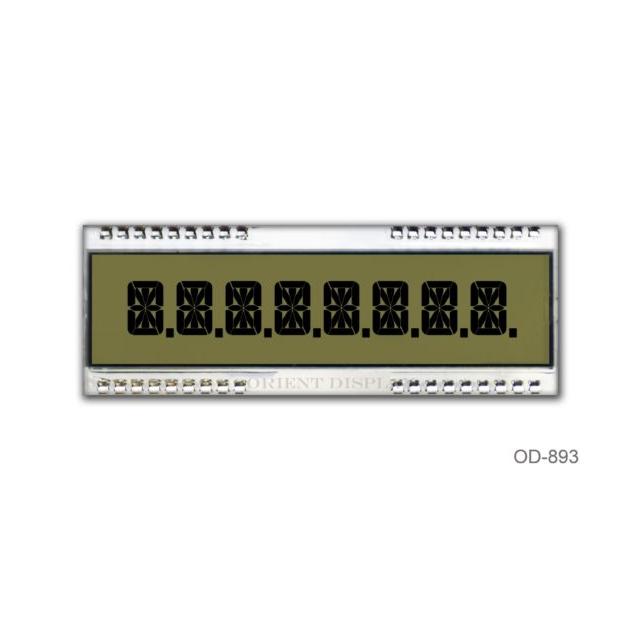

OD 893 LCD GLASS MOD 8DIG TN+ REFL Orient Display Datasheet	759 Marketplace	1 : $5.00 Box		Box	Active	TN - Twisted Nematic	Reflective	-	-	-30°C ~ 80°C	4.7V	64.00mm L x 12.50mm W	9.00mm H x 5.30mm W	8 x 1	14-Segment	-	-	70.00mm x 25.00mm x 2.80mm	Black	Gray	8
OD-372 LCD GLASS MOD 3 3/4DIG TN+ REFL Orient Display Datasheet	184 Marketplace	1 : $2.72 Box		Box	Active	TN - Twisted Nematic	Reflective	-	-	-20°C ~ 70°C	3V	21.70mm L x 8.20mm W	7.00mm H x 3.50mm W	4 x 1	7-Segment	-	-	23.70mm x 11.50mm x 1.85mm	Black	Gray	4
AMC2002DR-B-Y6WFDY LCD COB CHAR 20X2 Y/G TRANSF Orient Display Datasheet	35 Marketplace	1 : $17.04 25 : $419.75 50 : $813.00 100 : $1,599.00 Box		Box	Active	STN - Super-Twisted Nematic	Transflective	LED - Yellow/Green	Parallel, 8-Bit	-20°C ~ 70°C	4.5V ~ 5.5V	149.00mm L x 23.00mm W	9.52mm H x 5.92mm W	20 x 2	5 x 8 Dots	1.12mm W x 1.12mm H	S6A0069	180.00mm x 40.00mm x 14.00mm	Dark Blue	Yellow/Green	40.0

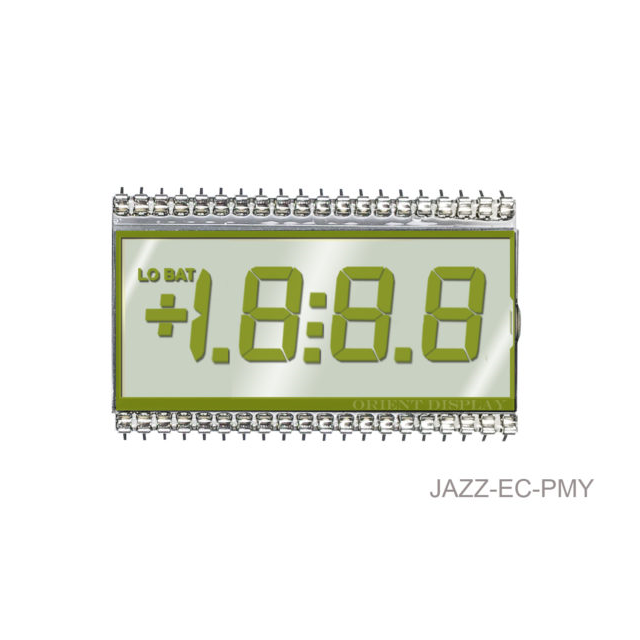

JAZZ-EC-PMY COLOR LCD GLASS 3.5DIG TN+ REFL Orient Display Datasheet	50 Marketplace	1 : $8.73 Box		Box	Active	TN - Twisted Nematic	Reflective	-	-	-20°C ~ 70°C	5V	45.80mm L x 17.86mm W	12.70mm H x 7.00mm W	3.5 x 1	7-Segment	-	-	50.80mm x 30.48mm x 3.00mm	Yellow/Green	Gray	3.5

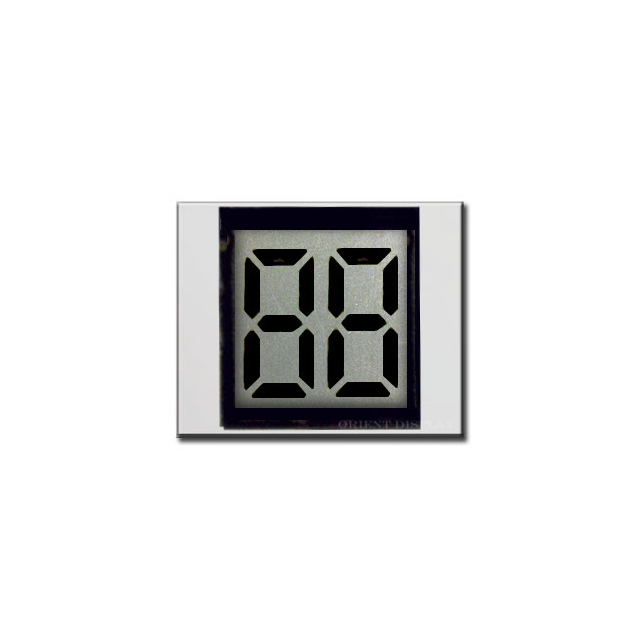

OD-204 LCD GLASS MOD 2DIG TN+ REFL Orient Display Datasheet	1,110 Marketplace	1 : $2.00 Box		Box	Active	TN - Twisted Nematic	Reflective	-	-	-20°C ~ 70°C	3V	6.00mm L x 5.50mm W	4.00mm H x 2.00mm W	2 x 1	7-Segment	-	-	8.00mm x 10.00mm x 1.80mm	Black	Gray	2.0
OD-103R LCD GLASS MOD 1DIG TN+ REFL Orient Display Datasheet	192 Marketplace	1 : $6.00 Box		Box	Active	TN - Twisted Nematic	Reflective	-	-	-20°C ~ 70°C	5V	76.20mm L x 109.22mm W	101.60mm H x 58.70mm W	1 x 1	7-Segment	-	-	122.56mm x 81.28mm x 2.80mm	Black	Gray	1.0
