High Frequency (RF) Relays

Mfr Part #	Quantity	Price	Series	Package	Product Status	Features	Mounting Type	Coil Voltage	Operating Temperature	Termination Style	Coil Current	Coil Type	Contact Material	Contact Form	Contact Rating (Current)	Switching Voltage	Must Release Voltage	Must Operate Voltage	Operate Time	Release Time	Coil Power	Coil Resistance
7-1415537-2 SR6B6K05 TE Connectivity Potter & Brumfield Relays Datasheet	0 In Stock	250 : $6,170.00 Tube	SR6, SCHRACK	Tube	Active	-	Through Hole	5VDC	-25°C ~ 70°C	PC Pin	161.3 mA	Non Latching	Silver Tin Oxide (AgSnO), Gold (Au)	6PST-4NO/2NC (4 Form A, 2 Form B)	8 A	400VAC - Max	0.5 VDC	3.75 VDC	-	-	-	-
PT380524 RELAY GEN PURPOSE 3PDT 10A 24V TE Connectivity Potter & Brumfield Relays Datasheet	0 In Stock	1,000 : $8,710.00 Tube	PT, SCHRACK	Tube	Active	Mechanical Indicator, Test Button	Socketable	24VAC	-40°C ~ 70°C	Plug In, Quick Connect - 0.110" (2.8mm)	125 mA	Non Latching	Silver Nickel (AgNi), Gold (Au)	3PDT (3 Form C)	10 A	400VAC - Max	7.2 VAC	19.2 VAC	15 ms	10 ms	-	-

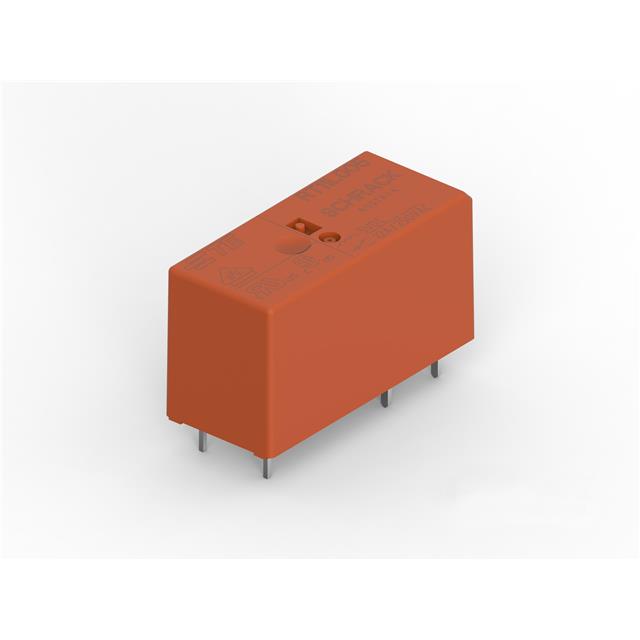

2-1415899-5 RELAY GEN PURPOSE SPDT 16A 12V TE Connectivity Potter & Brumfield Relays Datasheet	5,606 In Stock	1 : $2.71 20 : $51.00 40 : $86.00 100 : $204.00 260 : $470.60 500 : $850.00 1,000 : $1,580.00 5,000 : $7,650.00 Tube	RZH, SCHRACK	Tube	Active	-	Through Hole	12VDC	-40°C ~ 105°C	PC Pin	33.3 mA	Non Latching	Silver Nickel (AgNi)	SPDT (1 Form C)	16 A	400VAC - Max	1.2 VDC	8.4 VDC	8 ms	6 ms	-	-
T9AS1D17-12 RELAY GEN PURPOSE SPST 30A 12V TE Connectivity Potter & Brumfield Relays Datasheet	0 In Stock	1,000 : $4,020.00 Tray	T9A	Tray	Active	-	Through Hole	12VDC	-55°C ~ 85°C	PC Pin	83.3 mA	Non Latching	Silver Cadmium Oxide (AgCdO)	SPST-NO (1 Form A)	30 A	277VAC - Max	1.2 VDC	9 VDC	15 ms	15 ms	-	-

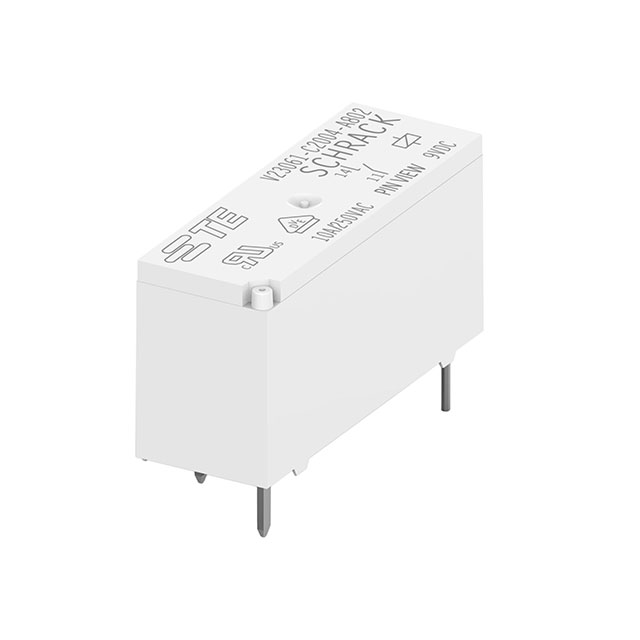

5-1416200-6 RELAY GEN PURPOSE SPST 10A 9V TE Connectivity Potter & Brumfield Relays Datasheet	0 In Stock	1,000 : $2,470.00 Bulk	V23061, SCHRACK	Bulk	Active	-	Through Hole	9VDC	-40°C ~ 85°C	PC Pin	24.7 mA	Non Latching	Silver Nickel (AgNi)	SPST-NO (1 Form A)	10 A	400VAC - Max	0.9 VDC	6.1 VDC	10 ms	5 ms	-	-
PCN-106D3MHZ,001B RELAY GEN PURPOSE SPST 3A 6V TE Connectivity Potter & Brumfield Relays Datasheet	0 In Stock	1,600 : $5,120.00 Tube	PCN, SCHRACK	Tube	Active	-	Through Hole	6VDC	-40°C ~ 85°C	PC Pin	20 mA	Non Latching	Silver Nickel (AgNi), Gold (Au)	SPST-NO (1 Form A)	3 A	277VAC, 125VDC - Max	0.6 VDC	4.2 VDC	-	-	-	-
1415504-1 RELAY GEN PURPOSE SPDT 10A 18V TE Connectivity Potter & Brumfield Relays Datasheet	0 In Stock	3,000 : $8,040.00 Tube	RT1, SCHRACK	Tube	Active	-	Through Hole	18VDC	-40°C ~ 85°C	PC Pin	-	Non Latching	Silver Nickel (AgNi)	SPDT (1 Form C)	10 A	400VAC - Max	1.8 VDC	12.6 VDC	10 ms	8 ms	-	-
8-1415523-1 RELAY GEN PURPOSE SPDT 16A 5V TE Connectivity Potter & Brumfield Relays Datasheet	0 In Stock	3,000 : $9,450.00 Bulk	RT1, SCHRACK	Bulk	Active	-	Through Hole	5VDC	-40°C ~ 85°C	PC Pin	80.7 mA	Non Latching	Silver Tin Oxide (AgSnO)	SPDT (1 Form C)	16 A	400VAC - Max	0.5 VDC	3.5 VDC	9 ms	6 ms	-	-
PCN-124D3MHZ,001 RELAY GEN PURPOSE SPST 5A 24V TE Connectivity Potter & Brumfield Relays Datasheet	8,138 In Stock	1 : $4.14 10 : $38.80 25 : $86.25 50 : $164.00 100 : $311.00 250 : $760.00 Tube	PCN, SCHRACK	Tube	Active	-	Through Hole	24VDC	-40°C ~ 85°C	PC Pin	5 mA	Non Latching	Silver Nickel (AgNi)	SPST-NO (1 Form A)	5 A	277VAC, 125VDC - Max	2.4 VDC	16.8 VDC	-	-	-	4.8 kOhms
1415539-4 RELAY GEN PURPOSE SPDT 12A 24V TE Connectivity Potter & Brumfield Relays Datasheet	0 In Stock	5,000 : $10,700.00 Tube	RT1, SCHRACK	Tube	Obsolete	-	Through Hole	24VDC	-40°C ~ 85°C	PC Pin	16.7 mA	Non Latching	Silver Nickel (AgNi)	SPDT (1 Form C)	12 A	400VAC - Max	2.4 VDC	16.8 VDC	8 ms	6 ms	-	-
