Fixed Inductors

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Mounting Type

Bolt Mount

Brackets

Chassis Mount

Free Hanging (In-Line)

Surface Mount

Through Hole

User Defined

Shielding

Shielded

Unshielded

Ratings

AEC-Q200

Mfr Part #	Quantity	Price	Series	Package	Product Status	Tolerance	Features	Package / Case	Size / Dimension	Mounting Type	Shielding	Type	Operating Temperature	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Current - Saturation (Isat)	Material - Core	Inductance Frequency - Test	Supplier Device Package	Height - Seated (Max)	Inductance	Current Rating (Amps)

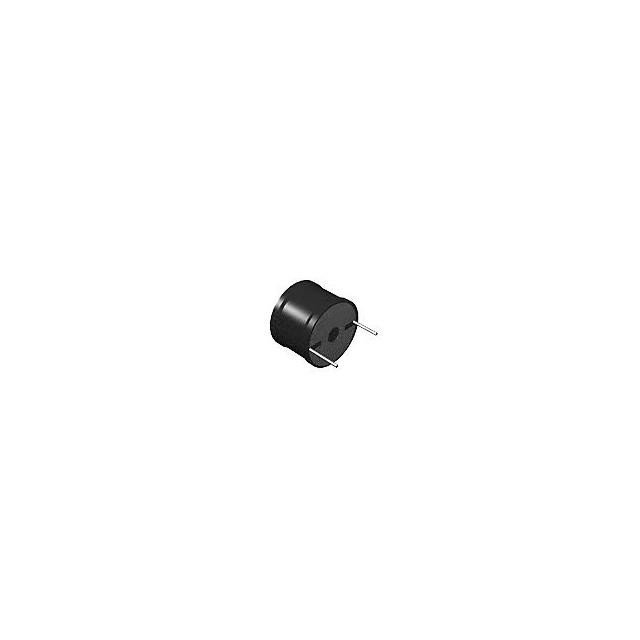

CTDR3F-121K 120UH RADIAL DRUM CORE INDUCTOR Central Technologies Datasheet	575 Marketplace	1 : $14.28 500 : $5,800.00 1,000 : $8,930.00 Bulk	CTDR3F	Bulk	Active	±10%	-	Radial, Vertical Cylinder	1.102" Dia (28.00mm)	Through Hole	Unshielded	Drum Core, Wirewound	-25°C ~ 85°C	46mOhm Max	-	-	-	7.2A	-	1 kHz	Radial	0.866" (22.00mm)	120 µH	-
CTDR3F-101K 100UH RADIAL DRUM CORE INDUCTOR Central Technologies Datasheet	3,000 Marketplace	1 : $14.28 500 : $5,800.00 1,000 : $8,930.00 Bulk	CTDR3F	Bulk	Active	±10%	-	Radial, Vertical Cylinder	1.102" Dia (28.00mm)	Through Hole	Unshielded	Drum Core, Wirewound	-25°C ~ 85°C	34mOhm Max	-	-	-	9A	-	1 kHz	Radial	0.866" (22.00mm)	100 µH	-

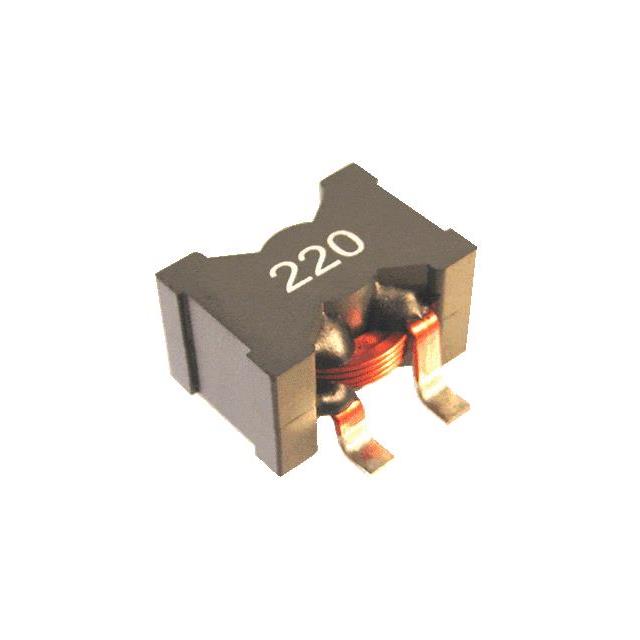

CTHFW2915F-2R2M SMD SHLDED POWER INDUCTOR Central Technologies Datasheet	11 Marketplace	1 : $9.85 500 : $4,000.00 1,000 : $6,160.00 Bulk	CTHFW2915F	Bulk	Active	±20%	-	2-SMD, Gull Wing	1.098" L x 1.098" W (27.90mm x 27.90mm)	Surface Mount	Shielded	Wirewound	-55°C ~ 125°C	1.76mOhm Max	-	-	-	100A	-	100 kHz	-	0.606" (15.40mm)	2.2 µH	30 A

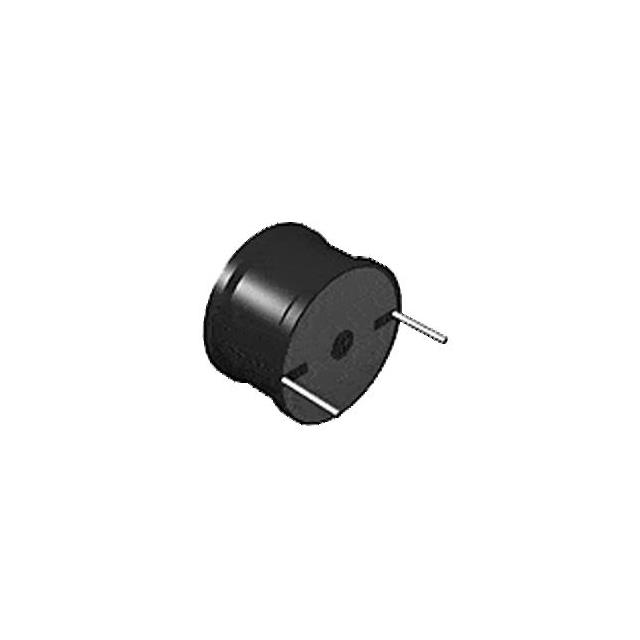

CTDR2F-680K 68UH RADIAL DRUM CORE INDUCTOR Central Technologies Datasheet	317 Marketplace	1 : $11.52 500 : $4,680.00 1,000 : $7,200.00 Bulk	CTDR2F	Bulk	Active	±10%	-	Radial, Vertical Cylinder	0.866" Dia (22.00mm)	Through Hole	Unshielded	Drum Core, Wirewound	-25°C ~ 85°C	53mOhm Max	-	-	-	-	-	1 kHz	Radial	0.866" (22.00mm)	68 µH	4.8 A

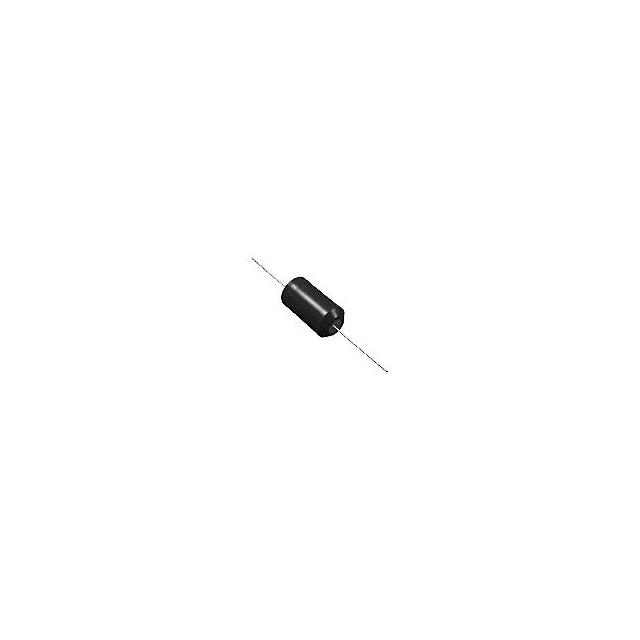

CTM2474F-220L 22UH AXIAL MOLDED INDUCTOR Central Technologies Datasheet	2,000 Marketplace	1 : $3.08 500 : $1,250.00 1,000 : $1,930.00 Bulk	CTM2474F	Bulk	Active	±15%	-	Axial	0.240" Dia x 0.740" L (6.10mm x 18.80mm)	Through Hole	Unshielded	Molded	-55°C ~ 125°C	50mOhm Max	-	-	-	1.4A	-	1 kHz	Axial	-	22 µH	2.66 A

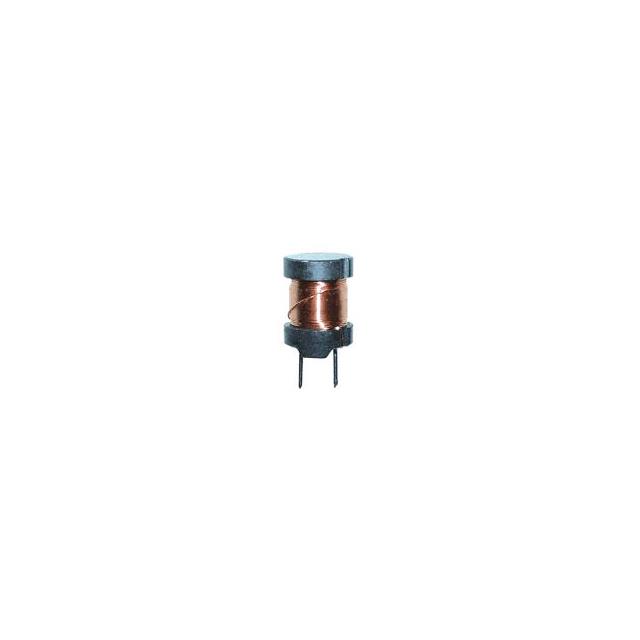

CTCH114F-103L 10000A RADIAL LEAD FIXD INDUCTOR Central Technologies Datasheet	3 Marketplace	1 : $1.39 500 : $565.00 1,000 : $870.00 Bulk	CTCH114F	Bulk	Active	±15%	-	Radial, Vertical Cylinder	0.394" Dia (10.00mm)	Through Hole	Unshielded	-	-	16Ohm Max	-	-	-	160mA	-	1 kHz	Radial	0.567" (14.40mm)	10 mH	-
CTDR3F-680K 68UH RADIAL DRUM CORE INDUCTOR Central Technologies Datasheet	1,000 Marketplace	1 : $14.28 500 : $5,800.00 1,000 : $8,930.00 Bulk	CTDR3F	Bulk	Active	±10%	-	Radial, Vertical Cylinder	1.102" Dia (28.00mm)	Through Hole	Unshielded	Drum Core, Wirewound	-25°C ~ 85°C	29mOhm Max	-	-	-	9A	-	1 kHz	Radial	0.866" (22.00mm)	68 µH	-
CT181LYF-472K RAD LEADED FIXED SHLDED INDUCTOR Central Technologies Datasheet	3 Marketplace	1 : $2.80 500 : $1,140.00 1,000 : $1,750.00 Bulk	ct181lyf	Bulk	Active	±10%	-	-	-	Through Hole	-	-	-20°C ~ 125°C	7.5Ohm	-	380kHz	-	-	-	-	-	-	4.7 mH	-
CTH8F-391K 390UH AXIAL PWR LINE INDUCTOR Central Technologies Datasheet	5 Marketplace	1 : $3.74 500 : $1,520.00 1,000 : $2,340.00 Bulk	CTH8F	Bulk	Active	±10%	-	Axial	0.469" Dia x 0.921" L (11.90mm x 23.40mm)	Through Hole	Unshielded	-	-55°C ~ 125°C	281mOhm Max	-	2MHz	-	1.39A	-	1 kHz	Axial	-	390 µH	1.6 A
CTH8F-4R7K 4.7UH AXIAL PWR LINE INDUCTOR Central Technologies Datasheet	37 Marketplace	1 : $3.74 500 : $1,520.00 1,000 : $2,340.00 Bulk	CTH8F	Bulk	Active	±10%	-	Axial	0.469" Dia x 0.921" L (11.90mm x 23.40mm)	Through Hole	Unshielded	-	-55°C ~ 125°C	8mOhm Max	-	31MHz	-	13.9A	-	1 kHz	Axial	-	4.7 µH	4 A
