Ferrite Cores

Packaging

Bag

Box

Bulk

Cut Tape (CT)

Strip

Tape & Box (TB)

Tape & Reel (TR)

Tray

Product Status

Active

Obsolete

Last Time Buy

Not For New Designs

Finish

Coated

Epoxy

Nylon

Parylene

Plastic

Polyester

Uncoated

Gap

Distributed Gapped

Gapped

Ungapped

Mfr Part #	Quantity	Price	Series	Package	Product Status	Tolerance	Material	Diameter	Length	Width	Height	Core Type	Supplier Device Package	Inductance Factor (Al)	Initial Permeability (µi)	Finish	Gap	Effective Permeability (µe)	Core Factor (ΣI/A) mm⁻¹	Effective Length (le) mm	Effective Area (Ae) mm²	Minimum Core Cross Section (Amin) mm²	Effective Magnetic Volume (Ve) mm³

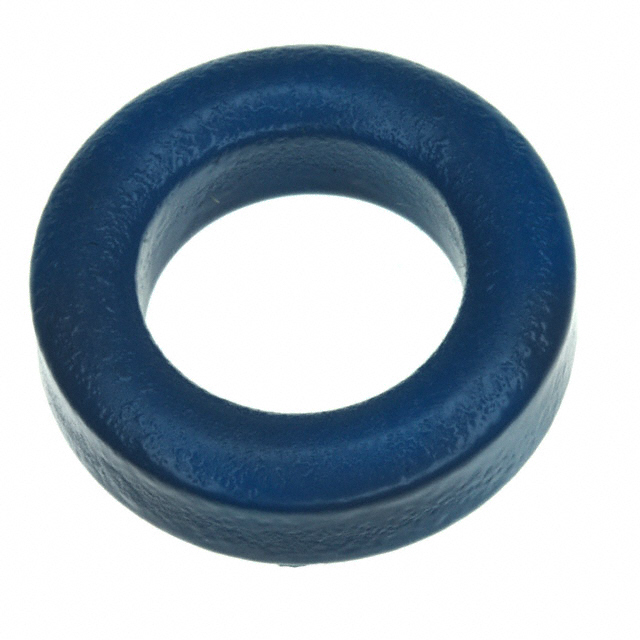

B64290L0045X038 FERRITE CORE TOROID 6.44UH T38 TDK EPCOS Datasheet	28,864 In Stock	1 : $0.96 10 : $8.70 25 : $16.00 50 : $30.50 100 : $55.00 250 : $127.50 500 : $240.00 2,000 : $900.00 Bulk	TX16/9.6/6.3	Bulk	Active	±30%	T38	0.677" (17.20mm)	-	-	0.287" (7.30mm)	Toroid	-	6.44 µH	10000	Epoxy	Ungapped	-	1.95	38.52	19.73	-	760.0

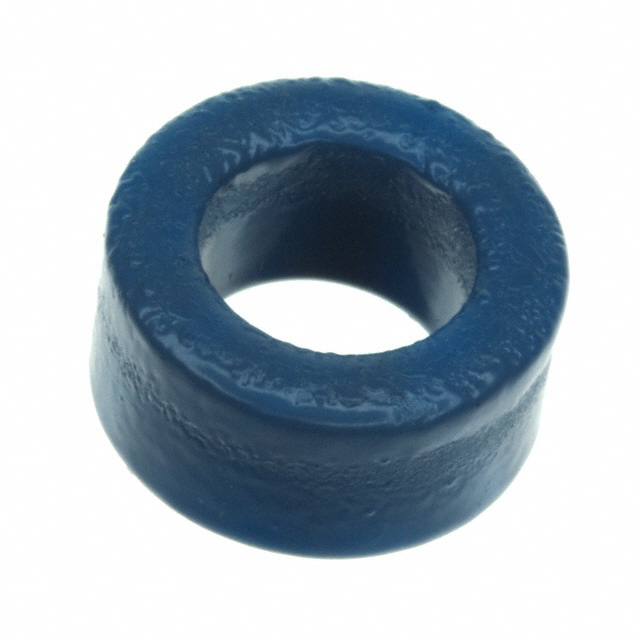

B64290L0742X087 FERRITE CORE TOROID 1.33UH N87 TDK EPCOS Datasheet	3,151 In Stock	1 : $0.50 10 : $4.00 25 : $8.50 50 : $15.00 100 : $26.00 250 : $57.50 500 : $105.00 1,500 : $270.00 6,000 : $1,020.00 Bulk	TX13/7.9/6.4	Bulk	Active	±25%	N87	0.535" (13.60mm)	-	-	0.281" (7.15mm)	Toroid	-	1.33 µH	2200	Epoxy	Ungapped	-	2.08	31.17	14.96	-	466

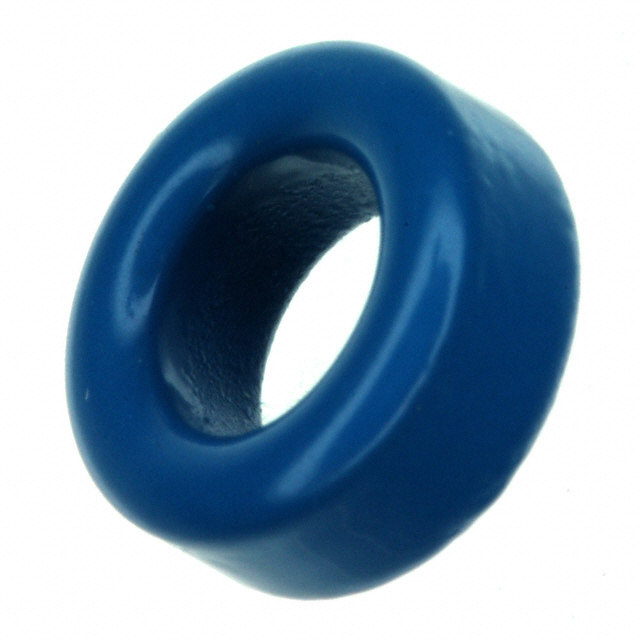

B64290L0638X087 FERRITE CORE TOROID 1.34UH N87 TDK EPCOS Datasheet	1,428 In Stock	1 : $0.96 10 : $8.70 25 : $16.00 50 : $30.50 100 : $55.00 300 : $153.00 600 : $288.00 1,200 : $540.00 Bulk	TX22/14/6.4	Bulk	Active	±25%	N87	0.917" (23.30mm)	-	-	0.291" (7.40mm)	Toroid	-	1.34 µH	2200	Epoxy	Ungapped	-	2.07	54.15	26.17	-	1417.0

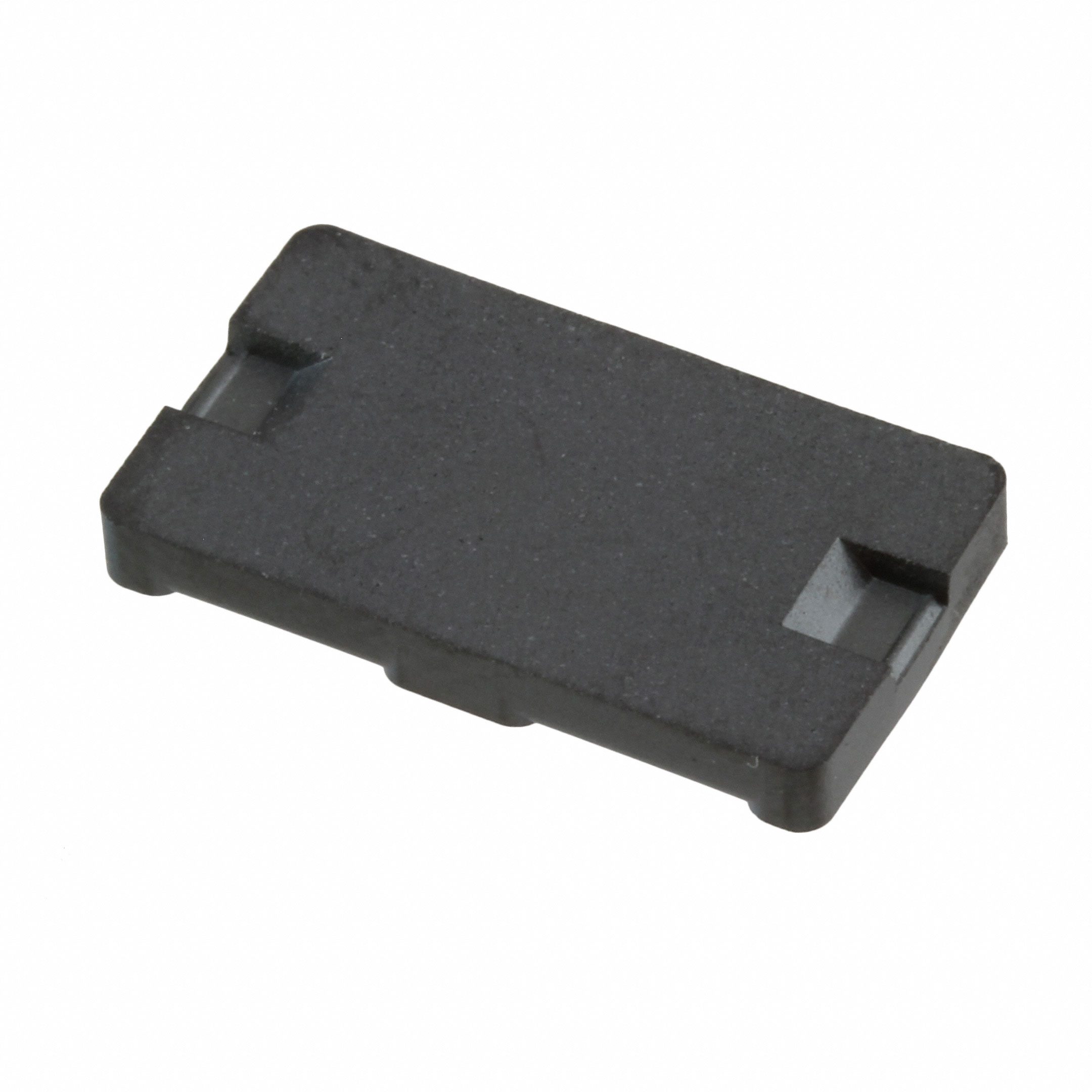

B66283K0000X187 FERRITE CORE I N87 TDK EPCOS Datasheet	1,968 In Stock	1 : $1.79 10 : $15.50 25 : $29.25 40 : $44.40 80 : $79.20 230 : $213.90 440 : $378.40 1,008 : $796.32 5,040 : $3,880.80 Tray	I18/2/10	Tray	Active	-	N87	-	0.709" (18.00mm)	0.394" (10.00mm)	0.079" (2.00mm)	I	I 18 x 2 x 10	-	-	Uncoated	Ungapped	-	-	-	-	-	-

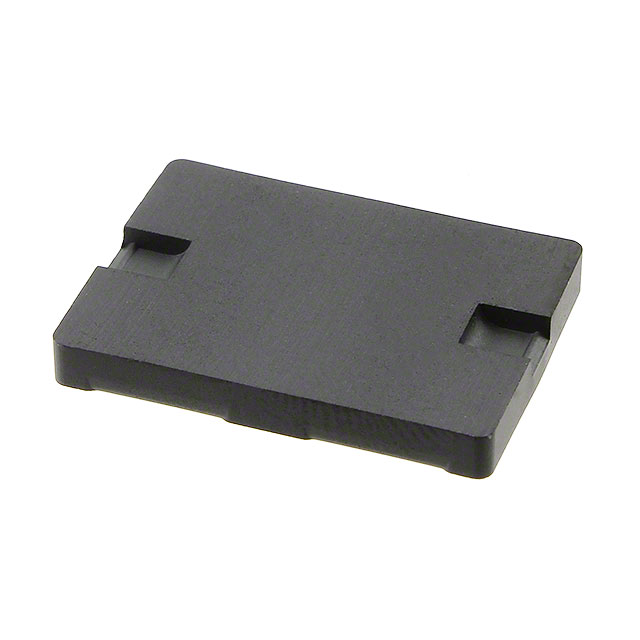

B66285K0000X187 FERRITE CORE I N87 TDK EPCOS Datasheet	2,743 In Stock	1 : $1.66 10 : $14.30 25 : $27.25 40 : $41.20 80 : $73.60 230 : $197.80 600 : $480.00 1,200 : $960.00 Tray	I22/2.5/16	Tray	Active	-	N87	-	0.858" (21.80mm)	0.622" (15.80mm)	0.098" (2.50mm)	I	I 22 x 2.5 x 16	-	-	Uncoated	Ungapped	-	-	-	-	-	-

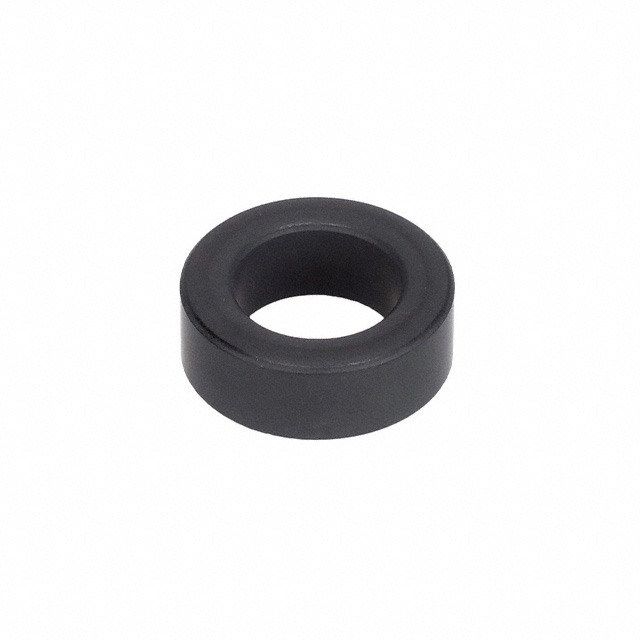

B64290L0038X027 FERRITE CORE TOROID N27 TDK EPCOS Datasheet	1,688 In Stock	1 : $0.26 10 : $2.10 25 : $4.25 50 : $7.50 100 : $14.00 250 : $30.00 500 : $55.00 3,000 : $270.00 Box	TX10/6/4	Box	Active	-	N27	-	0.394" (10.00mm)	0.236" (6.00mm)	0.157" (4.00mm)	Toroid	-	-	2000	Epoxy	Gapped	-	3.07	24.07	7.83	-	188

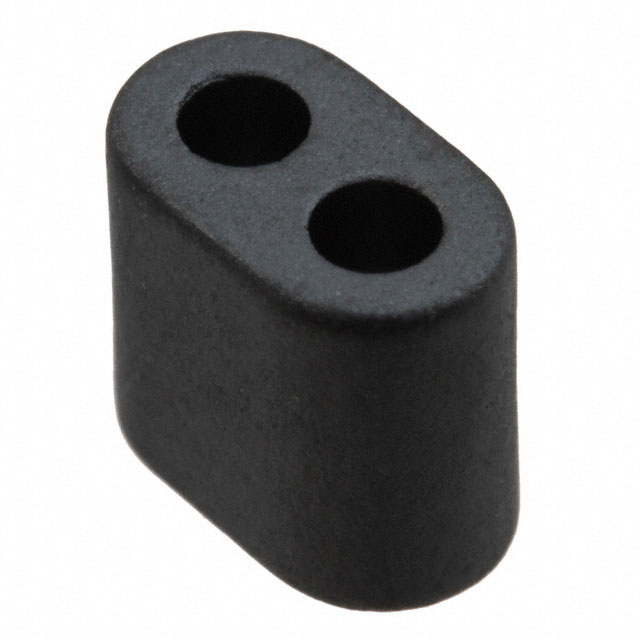

B62152A0007X030 FERRITE CORE 2 HOLE 7.3UH N30 TDK EPCOS Datasheet	2,930 In Stock	1 : $0.68 10 : $5.70 25 : $12.25 50 : $22.00 100 : $39.00 250 : $87.50 500 : $165.00 2,000 : $560.00 Box	MHB2-7.25/4.2/6.2	Box	Active	±30%	N30	-	0.285" (7.25mm)	0.165" (4.20mm)	0.244" (6.20mm)	Multi-Hole (2)	-	7.3 µH	4300	Uncoated	Ungapped	-	0.75	7.6	10.2	-	78.0
B64290A0048X001 FERRITE CORE TOROID TDK EPCOS Datasheet	0 In Stock	1 : $11.81 10 : $106.30 25 : $200.75 50 : $389.50 100 : $685.00 300 : $1,968.00 Box	T34/20.5/12.5	Box	Active	-	-	-	-	-	-	Toroid	-	-	-	Uncoated	Ungapped	-	-	-	-	-	-
B64290L0048X037 FERRITE CORE TOROID 7.6UH T37 TDK EPCOS Datasheet	0 In Stock	300 : $777.00 Box	TX34/20.5/12.5	Box	Active	±25%	T37	1.397" (35.50mm)	-	-	0.535" (13.60mm)	Toroid	-	7.6 µH	6000	Epoxy	Ungapped	-	0.99	82.06	82.6	-	6778.0
B64290L0043X830 FERRITE CORE TOROID 9.3UH N30 TDK EPCOS Datasheet	0 In Stock	150 : $1,864.50 Box	TX58.3/32/18	Box	Active	±25%	N30	2.366" (60.10mm)	-	-	0.760" (19.30mm)	Toroid	-	9.3 µH	4300	Epoxy	Ungapped	-	0.58	134	230	-	30710
