Ferrite Cores

Packaging

Bag

Box

Bulk

Cut Tape (CT)

Strip

Tape & Box (TB)

Tape & Reel (TR)

Tray

Product Status

Active

Obsolete

Last Time Buy

Not For New Designs

Finish

Coated

Epoxy

Nylon

Parylene

Plastic

Polyester

Uncoated

Gap

Distributed Gapped

Gapped

Ungapped

Mfr Part #	Quantity	Price	Series	Package	Product Status	Tolerance	Material	Diameter	Length	Width	Height	Core Type	Supplier Device Package	Inductance Factor (Al)	Initial Permeability (µi)	Finish	Gap	Effective Permeability (µe)	Core Factor (ΣI/A) mm⁻¹	Effective Length (le) mm	Effective Area (Ae) mm²	Minimum Core Cross Section (Amin) mm²	Effective Magnetic Volume (Ve) mm³

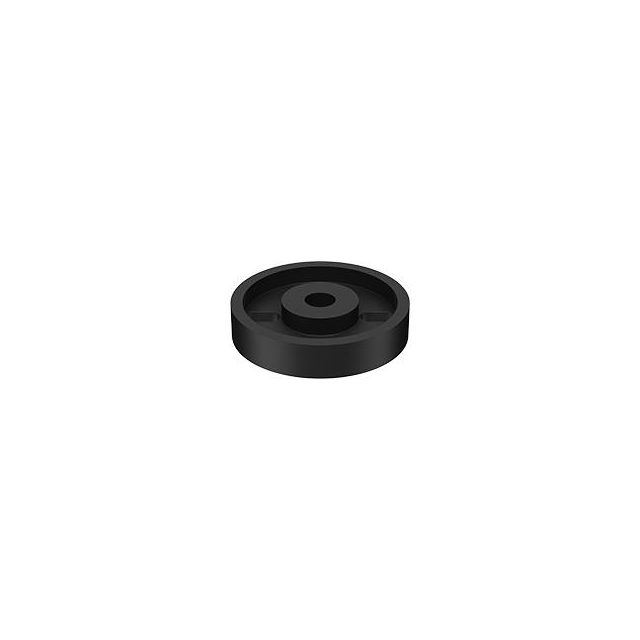

B65947A0000X022 FERRITE CORE PS N22 TDK EPCOS Datasheet	365 In Stock	1 : $4.29 10 : $36.50 25 : $69.50 50 : $135.00 100 : $238.00 300 : $666.00 500 : $1,105.00 Box	PS35/10.8	Box	Active	-	N22	1.378" (35.00mm)	-	-	0.425" (10.80mm)	PS	PS 35 x 10.8	-	-	Uncoated	Ungapped	-	-	-	-	-	-

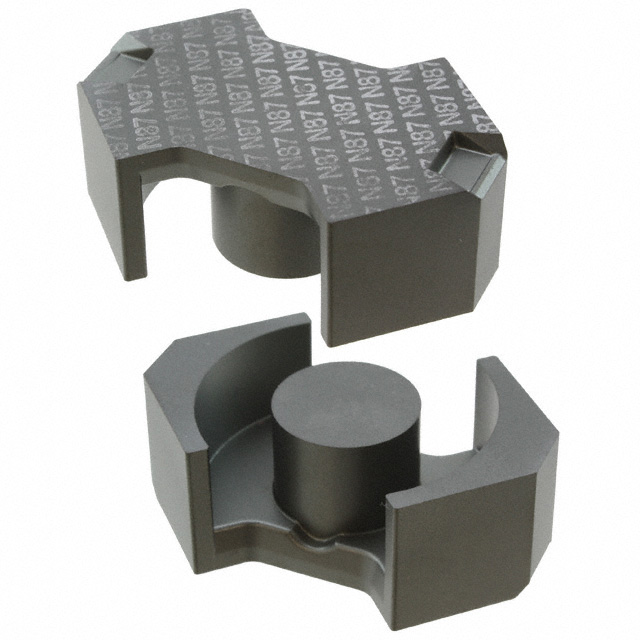

B65887E0000R087 FERRITE CORE RM 6UH N87 2PCS TDK EPCOS Datasheet	654 In Stock	1 : $9.92 10 : $84.50 25 : $160.75 60 : $375.00 120 : $661.20 300 : $1,545.00 540 : $2,754.00 Box	RM14	Box	Active	-20%, +30%	N87	-	1.661" (42.20mm)	0.748" (19.00mm)	0.594" (15.10mm)	RM	RM 14	6 µH	2200	Uncoated	Ungapped	1670	0.35	70	200	170	14000

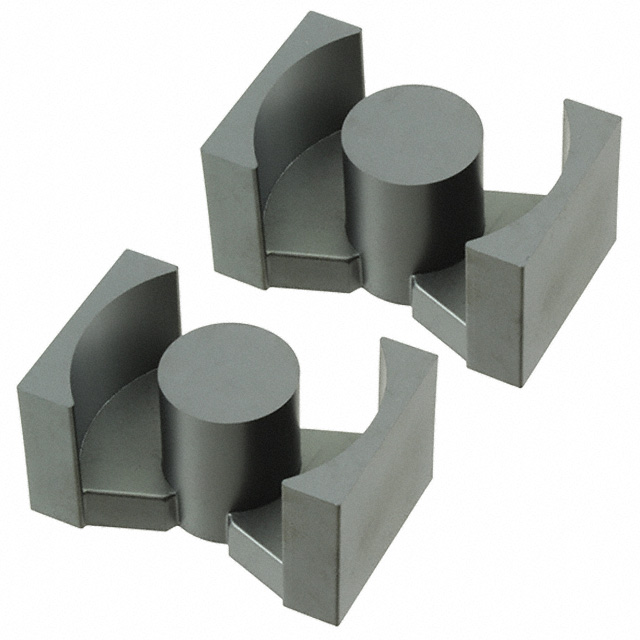

B65881A0000R097 FERRITE CORE PQ 4.7UH N97 2PCS TDK EPCOS Datasheet	481 In Stock	1 : $11.03 10 : $94.00 25 : $178.75 72 : $500.40 144 : $882.72 288 : $1,647.36 504 : $2,862.72 Box	PQ35/35	Box	Active	-20%, +30%	N97	-	1.382" (35.10mm)	1.024" (26.00mm)	0.685" (17.40mm)	PQ	PQ 35 x 35	4.7 µH	2300	Uncoated	Ungapped	1750	0.467	79.2	169.7	146.5	13440

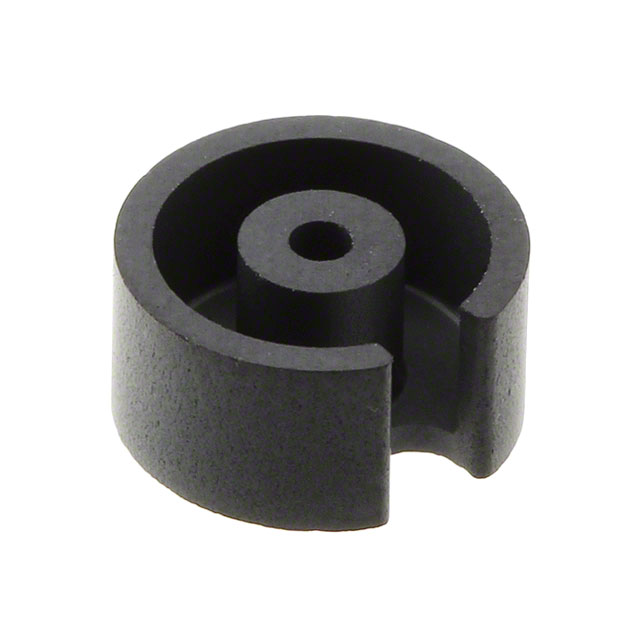

B65933A0000X033 FERRITE CORE PS M33 1PC TDK EPCOS Datasheet	3,607 In Stock	1 : $2.16 10 : $18.60 25 : $35.25 50 : $67.00 100 : $119.00 250 : $280.00 500 : $520.00 2,000 : $2,060.00 Box	PS7.3/3.6	Box	Active	-	M33	0.289" (7.35mm)	-	-	0.142" (3.60mm)	PS	PS 7.35 x 3.6	-	-	Uncoated	Ungapped	-	-	-	-	-	-

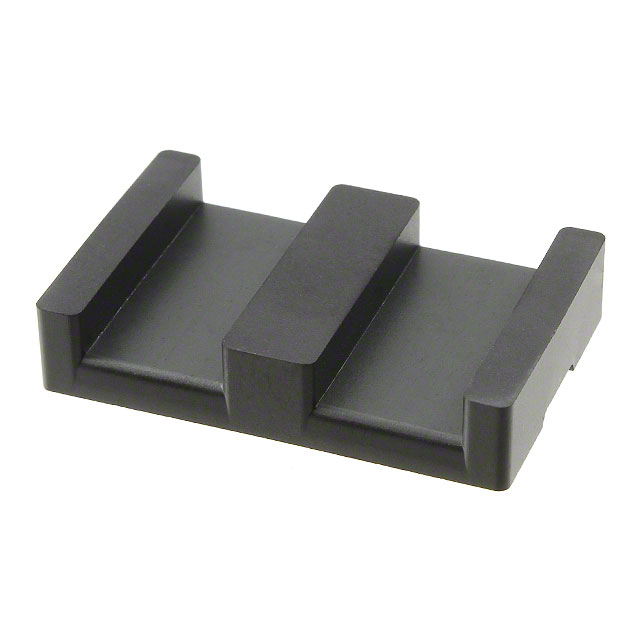

B66287G0000X149 FERRITE CORE ELP N49 1PC TDK EPCOS Datasheet	255 In Stock	1 : $2.94 10 : $25.20 25 : $47.25 50 : $92.00 100 : $163.00 304 : $462.08 608 : $887.68 Box	ELP32/6/20	Box	Active	-	N49	-	1.250" (31.75mm)	0.801" (20.35mm)	0.250" (6.35mm)	ELP	ELP 32 x 6 x 20	-	-	Uncoated	Ungapped	-	-	-	-	-	-

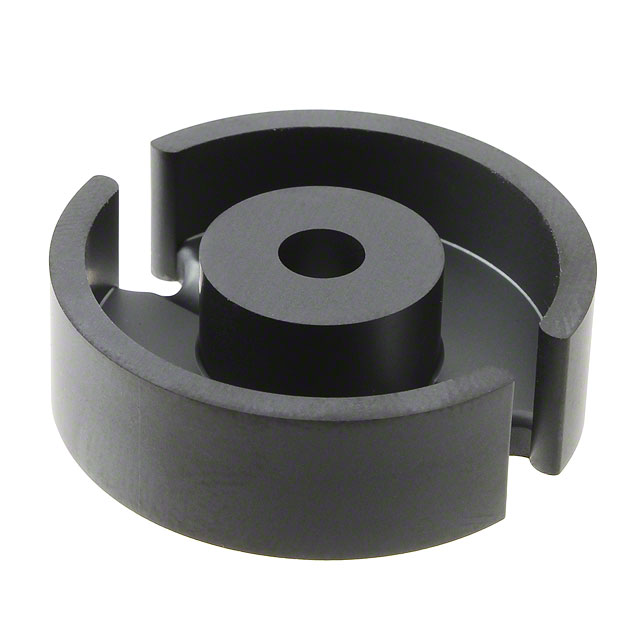

B65943A0000X022 FERRITE CORE PS N22 TDK EPCOS Datasheet	60 In Stock	1 : $12.84 10 : $115.50 25 : $218.25 50 : $423.50 100 : $744.00 250 : $1,782.50 Box	PS47/14.9	Box	Active	-	N22	1.850" (47.00mm)	-	-	0.587" (14.90mm)	PS	PS 47 x 14.9	-	-	Uncoated	Ungapped	-	-	-	-	-	-
B66287G0000X195 FERRITE CORE ELP N95 1PC TDK EPCOS Datasheet	247 In Stock	1 : $3.89 10 : $33.20 25 : $63.00 50 : $122.50 100 : $216.00 304 : $614.08 608 : $1,216.00 Box	ELP32/6/20	Box	Active	-	N95	-	1.250" (31.75mm)	0.801" (20.35mm)	0.250" (6.35mm)	ELP	ELP 32 x 6 x 20	-	-	Uncoated	Ungapped	-	-	-	-	-	-

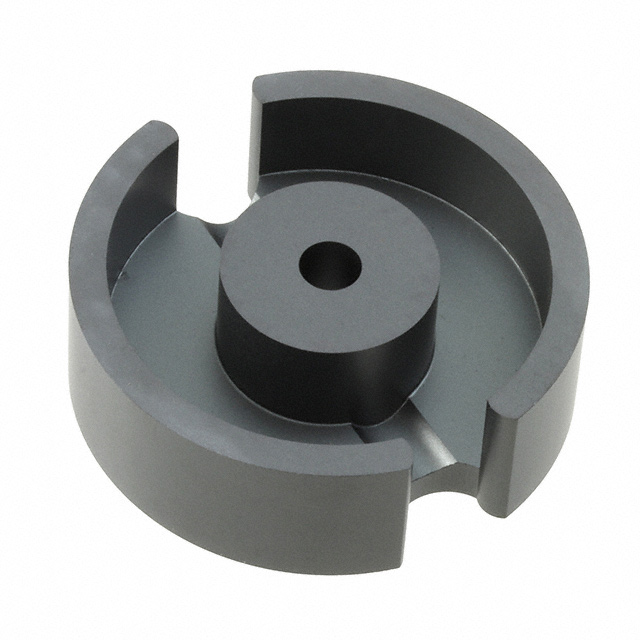

B65949A0000X027 FERRITE CORE P N27 TDK EPCOS Datasheet	5 In Stock	1 : $382.56 10 : $3,400.50 26 : $7,294.04 Box	PCH150/30	Box	Active	-	N27	5.906" (150.00mm)	-	-	1.181" (30.00mm)	P (Pot Core)	P Core Half 150 x 30	-	-	Uncoated	Ungapped	-	-	-	-	-	-

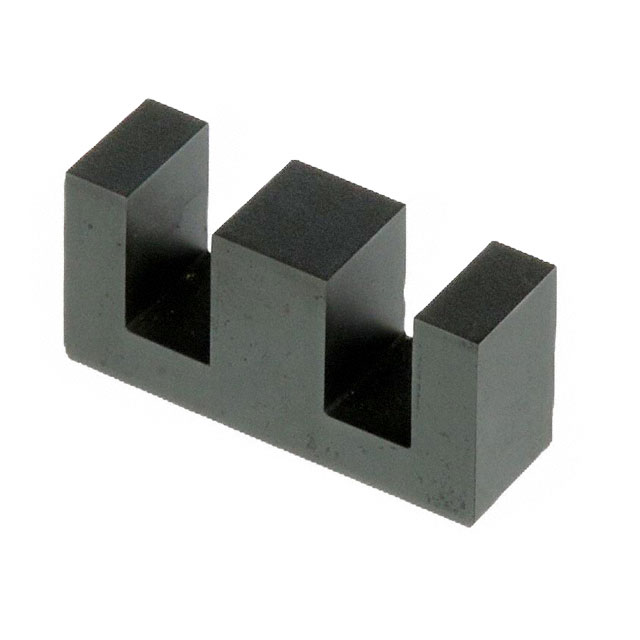

B66325G0000X187 FERRITE CORE E N87 1PC TDK EPCOS Datasheet	3,567 In Stock	1 : $2.65 10 : $22.70 25 : $42.50 50 : $83.00 208 : $305.76 416 : $569.92 624 : $817.44 Box	E42/21/15	Box	Active	-	N87	-	1.654" (42.00mm)	0.598" (15.20mm)	0.835" (21.20mm)	E	E 42 x 21 x 15	-	-	Uncoated	Ungapped	-	-	-	-	-	-
B66389G0000X127 FERRITE CORE E N27 1PC TDK EPCOS Datasheet	843 In Stock	1 : $1.99 10 : $17.10 25 : $32.00 50 : $62.50 Box	E36/18/11	Box	Active	-	N27	-	1.417" (36.00mm)	0.453" (11.50mm)	0.709" (18.00mm)	E	E 36 x 18 x 11	-	-	Uncoated	Ungapped	-	-	-	-	-	-
