PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
{{ p.name }}	{{ numberFormat(p.buyQty) }}	{{ priceFormat(p.unitPrice) }}	{{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Mounting Type	Operating Temperature	Current - Supply	Measurement Error	Input Impedance	Voltage - I/O High	Voltage - I/O Low	Meter Type	Supplier Device Package	Grade	Voltage - Supply	Qualification
71M6201-IL/F IC POWER METER 1-PHASE 8SOIC Maxim Integrated / Analog Devices Datasheet	185 In Stock	1 : $2.92 10 : $26.20 25 : $62.00 100 : $215.00 Tube		Tube	Discontinued	8-SOIC (0.154", 3.90mm Width)	Surface Mount	-40°C ~ 85°C	770µA	0.2%	-	-	-	Single Phase	8-SOIC	-	2.5 V ~ 3.6 V	-
71M6531F-IM/F IC ENERGY METER 256KB 68-QFN Maxim Integrated / Analog Devices Datasheet	250 In Stock	1 : $8.05 10 : $72.80 25 : $173.50 80 : $481.60 Tray	Single Converter Technology®	Tray	Discontinued	68-VFQFN Exposed Pad	Surface Mount	-40°C ~ 85°C	-	0.1%	40kOhm ~ 90kOhm	2V	0.8V	Single Phase, Dual Phase	68-SQFN (8x8)	-	3 V ~ 3.6 V	-

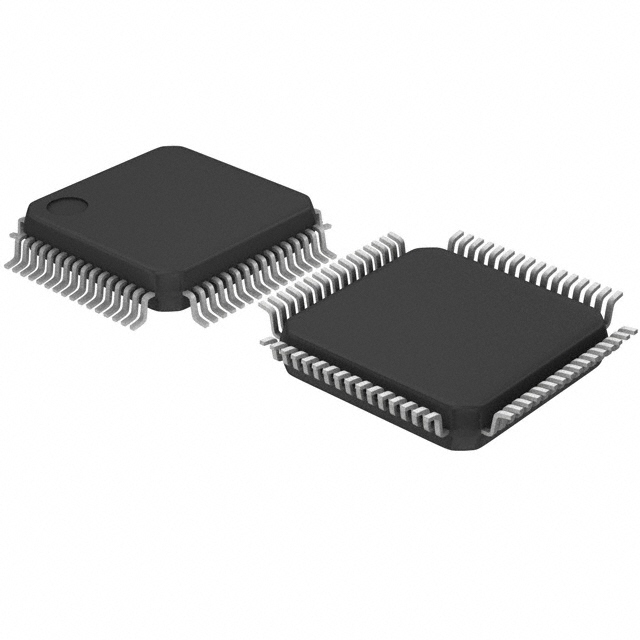

71M6541D-IGT/F IC ENERGY METERING Maxim Integrated / Analog Devices Datasheet	24 In Stock	1 : $4.68 10 : $42.10 Tray	Single Converter Technology®	Tray	Discontinued	64-LQFP	Surface Mount	-40°C ~ 85°C	-	0.1%	-	2V	0.8V	Single Phase	64-LQFP (10x10)	-	3 V ~ 3.6 V	-
71M6203-IL/F IC POWER METER 3-PHASE 8SOIC Maxim Integrated / Analog Devices Datasheet	4 In Stock	1 : $3.19 Tube		Tube	Discontinued	8-SOIC (0.154", 3.90mm Width)	Surface Mount	-40°C ~ 85°C	770µA	0.2%	-	-	-	3 Phase	8-SOIC	-	2.5 V ~ 3.6 V	-
71M6515H-IGT/F IC ENERGY METER AFE 3PH 64-LQFP Maxim Integrated / Analog Devices Datasheet	0 In Stock	160 : $918.40 Tray	Single Converter Technology®	Tray	Discontinued	64-LQFP	Surface Mount	-40°C ~ 85°C	-	0.1%	-	-	-	3 Phase	64-LQFP (10x10)	-	3 V ~ 3.6 V	-
MAX78615+PPM/C01 IC ENERGY MEAS PROC 3PH TQFN Maxim Integrated / Analog Devices Datasheet	0 In Stock	150 : $718.50 Tube		Tube	Discontinued	24-WFQFN Exposed Pad	Surface Mount	-40°C ~ 85°C	8.1mA	-	-	2V	0.8V	3 Phase	24-TQFN (4x4)	-	3 V ~ 3.6 V	-
78M6631-IM/F/P2 IC POWER MEAS/MON 3 PHASE 56TQFN Maxim Integrated / Analog Devices Datasheet	0 In Stock	260 : $2,012.40 Tube	Teridian™	Tube	Discontinued	68-VFQFN Exposed Pad	Surface Mount	-40°C ~ 85°C	9.1mA	0.5%	40kOhm ~ 90kOhm	2V	0.8V	3 Phase	68-SQFN (8x8)	-	3 V ~ 3.6 V	-
71M6545-IGT/F IC ENERGY METERING Maxim Integrated / Analog Devices Datasheet	0 In Stock	160 : $747.20 Tray	Single Converter Technology®	Tray	Discontinued	64-LQFP	Surface Mount	-40°C ~ 85°C	-	0.1%	-	2V	0.8V	3 Phase	64-LQFP (10x10)	-	3 V ~ 3.6 V	-
78M6610+LMU/B01 IC ENERGY MM PROCESSOR 24TQFN Maxim Integrated / Analog Devices Datasheet	0 In Stock	225 : $699.75 Tube		Tube	Discontinued	24-WFQFN Exposed Pad	Surface Mount	-40°C ~ 85°C	8.1mA	-	30kOhm ~ 90kOhm	2V	0.8V	Single Phase	24-TQFN (4x4)	-	3 V ~ 3.6 V	-
78M6610+PSU/B48 IC ENERGY MEASUREMENT TQFN Maxim Integrated / Analog Devices Datasheet	0 In Stock	225 : $699.75 Tube		Tube	Discontinued	24-WFQFN Exposed Pad	Surface Mount	-40°C ~ 85°C	8.1mA	-	30kOhm ~ 90kOhm	0.6V, 2V	0.5V, 0.8V	Single Phase	24-TQFN (4x4)	-	3 V ~ 3.6 V	-

Energy Metering
