Mfr Part #	Quantity	Price	Series	Package	Product Status	Features	Current Rating (Amps)	Mounting Type	Circuit	Switch Function	Operating Temperature	Termination Style	Illumination Voltage (Nominal)	Ingress Protection	Panel Cutout Dimensions	Voltage Rating - AC	Voltage Rating - DC	Reset Operation

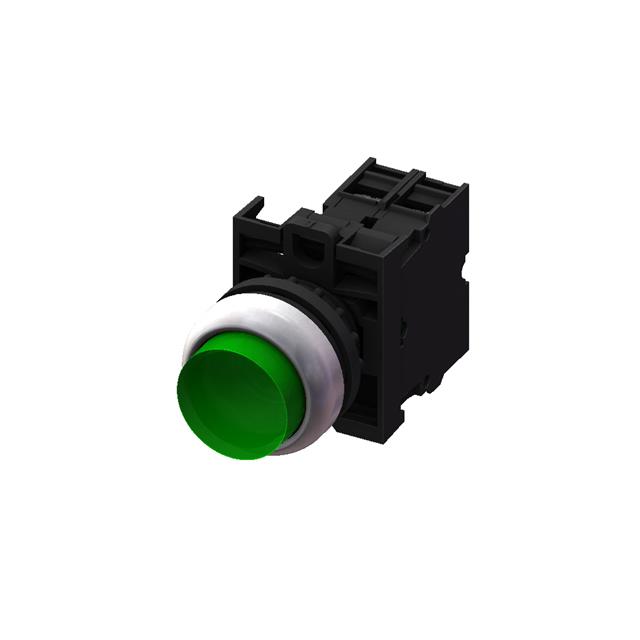

M22XP-MSF01-G EXT PB-MOM-1B-GREEN Moujen Datasheet	1,280 Marketplace	20 : $259.00 320 : $3,216.00 Bulk	M22	Bulk	Active	-	6A (AC), 3A (DC)	Panel Mount, Front	SPST	-	-25°C ~ 70°C	Screw Terminal	-	IP65 - Dust Tight, Water Resistant	Circular - 22.30mm Dia	230 V	24 V	-
M22FP-MSF01-E30-W FLAT PB-MOM-1B-LED-WHITE Moujen Datasheet	1,600 Marketplace	20 : $302.40 400 : $4,892.00 Bulk	M22	Bulk	Active	-	6A (AC), 3A (DC)	Panel Mount, Front	SPST	-	-25°C ~ 70°C	Screw Terminal	12 ~ 30 VAC/DC	IP65 - Dust Tight, Water Resistant	Circular - 22.30mm Dia	230 V	24 V	-

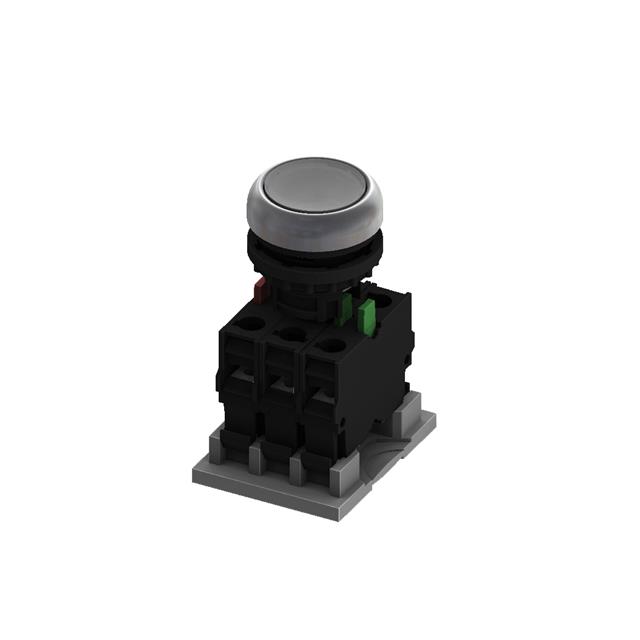

M22FP-ASB20-E30-W-<O> FLAT PB-ALT-2A-LED-WHITE-<O> Moujen Datasheet	1,600 Marketplace	20 : $334.40 400 : $5,532.00 Bulk	M22	Bulk	Active	-	6A (AC), 3A (DC)	Panel Mount, Front	DPST	-	-25°C ~ 70°C	Screw Terminal	12 ~ 30 VAC/DC	IP65 - Dust Tight, Water Resistant	Circular - 22.30mm Dia	230 V	24 V	-

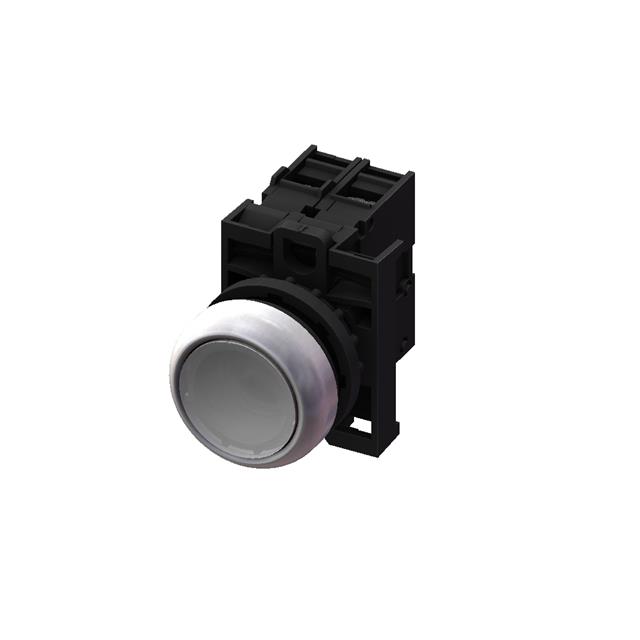

M22FP-MSB10-W-<O> FLAT PB-MOM-1A-WHITE-<O> Moujen Datasheet	1,600 Marketplace	20 : $259.00 400 : $4,020.00 Bulk	M22	Bulk	Active	-	6A (AC), 3A (DC)	Panel Mount, Front	SPST	-	-25°C ~ 70°C	Screw Terminal	-	IP65 - Dust Tight, Water Resistant	Circular - 22.30mm Dia	230 V	24 V	-
M22FP-MSB01-E230-BL FLAT PB-MOM-1B-LED-BLUE Moujen Datasheet	1,600 Marketplace	20 : $335.00 400 : $5,540.00 Bulk	M22	Bulk	Active	-	6A (AC), 3A (DC)	Panel Mount, Front	SPST	-	-25°C ~ 70°C	Screw Terminal	230 VAC	IP65 - Dust Tight, Water Resistant	Circular - 22.30mm Dia	230 V	24 V	-
M22S-T30SF20-Y SWITCH SELECT 3POS SPST 6A 230V Moujen Datasheet	1,280 Marketplace	20 : $303.20 320 : $3,945.60 Bulk	M22	Bulk	Active	-	6A (AC), 3A (DC)	Panel Mount	SPST	-	-25°C ~ 70°C	Screw Terminal	-	IP65 - Dust Tight, Water Resistant	Circular - 22.30mm Dia	230 V	24 V	-

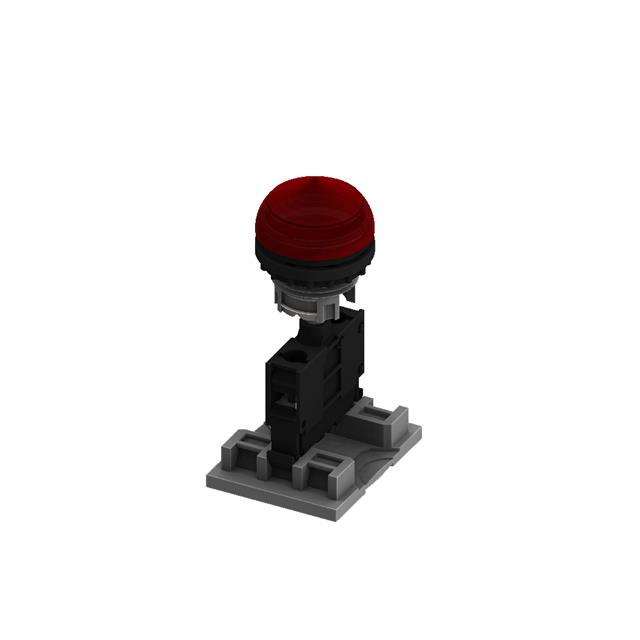

M22L-XSB-E230-R PILOT-EXT-LED-RED Moujen Datasheet	1,600 Marketplace	20 : $285.20 400 : $4,568.00 Bulk	M22	Bulk	Active	-	-	-	-	-	-	Screw Terminal	-	IP65 - Dust Tight, Water Resistant	0.88" (22.30mm)	-	-	-
M22S-T20SF11-E230-R SWITCH SELECT 2POS DPST 6A 230V Moujen Datasheet	1,280 Marketplace	20 : $381.20 320 : $5,193.60 Bulk	M22	Bulk	Active	-	6A (AC), 3A (DC)	Panel Mount	DPST	-	-25°C ~ 70°C	Screw Terminal	230 VAC	IP65 - Dust Tight, Water Resistant	Circular - 22.30mm Dia	230 V	24 V	-
M22FP-ASF02-E230-G-<O> FLAT PB-ALT-2B-LED-GREEN-<O> Moujen Datasheet	1,600 Marketplace	20 : $367.80 400 : $6,196.00 Bulk	M22	Bulk	Active	-	6A (AC), 3A (DC)	Panel Mount, Front	DPST	-	-25°C ~ 70°C	Screw Terminal	230 VAC	IP65 - Dust Tight, Water Resistant	Circular - 22.30mm Dia	230 V	24 V	-
M22XP-MSF02-R EXT PB-MOM-2B-RED Moujen Datasheet	1,280 Marketplace	20 : $289.40 320 : $3,702.40 Bulk	M22	Bulk	Active	-	6A (AC), 3A (DC)	Panel Mount, Front	DPST	-	-25°C ~ 70°C	Screw Terminal	-	IP65 - Dust Tight, Water Resistant	Circular - 22.30mm Dia	230 V	24 V	-
