Mfr Part #	Quantity	Price	Series	Package	Product Status	Features	Current Rating (Amps)	Mounting Type	Circuit	Switch Function	Operating Temperature	Termination Style	Illumination Voltage (Nominal)	Ingress Protection	Panel Cutout Dimensions	Voltage Rating - AC	Voltage Rating - DC	Reset Operation

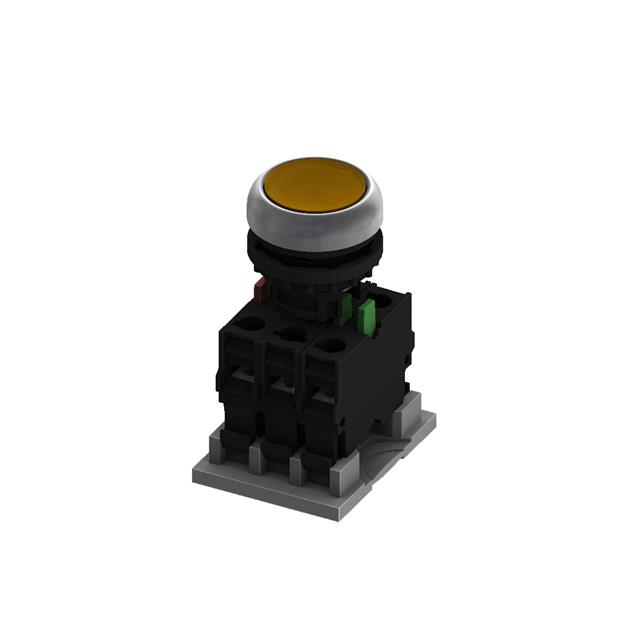

M22FP-ASB02-E230-Y FLAT PB-ALT-2B-LED-YELLOW Moujen Datasheet	1,600 Marketplace	20 : $367.80 400 : $6,196.00 Bulk	M22	Bulk	Active	-	6A (AC), 3A (DC)	Panel Mount, Front	DPST	-	-25°C ~ 70°C	Screw Terminal	230 VAC	IP65 - Dust Tight, Water Resistant	Circular - 22.30mm Dia	230 V	24 V	-

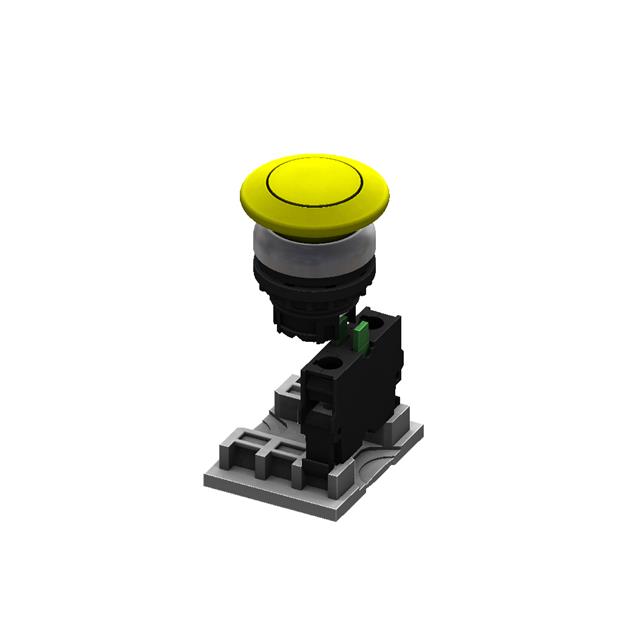

M22MP-ASB10-Y-<STOP> MUSHRM PB-ALT-1A-YELLOW-<STOP> Moujen Datasheet	1,280 Marketplace	20 : $266.00 320 : $3,334.40 Bulk	M22	Bulk	Active	-	6A (AC), 3A (DC)	Panel Mount, Front	SPST	-	-25°C ~ 70°C	Screw Terminal	-	IP65 - Dust Tight, Water Resistant	Circular - 22.30mm Dia	230 V	24 V	-
M22S-T22SF20-Y SWITCH SELECT 2POS DPST 6A 230V Moujen Datasheet	1,280 Marketplace	20 : $303.20 320 : $3,945.60 Bulk	M22	Bulk	Active	-	6A (AC), 3A (DC)	Panel Mount	DPST	-	-25°C ~ 70°C	Screw Terminal	-	IP65 - Dust Tight, Water Resistant	Circular - 22.30mm Dia	230 V	24 V	-
M22FP-MSF11-E230-G-<O> FLAT PB-MOM-1A1B-LED-GREEN-<O> Moujen Datasheet	1,600 Marketplace	20 : $365.60 400 : $6,156.00 Bulk	M22	Bulk	Active	-	6A (AC), 3A (DC)	Panel Mount, Front	DPST	-	-25°C ~ 70°C	Screw Terminal	230 VAC	IP65 - Dust Tight, Water Resistant	Circular - 22.30mm Dia	230 V	24 V	-
M22FP-MSB11-G-<O> FLAT PB-MOM-1A1B-GREEN-<O> Moujen Datasheet	1,600 Marketplace	20 : $289.40 400 : $4,628.00 Bulk	M22	Bulk	Active	-	6A (AC), 3A (DC)	Panel Mount, Front	DPST	-	-25°C ~ 70°C	Screw Terminal	-	IP65 - Dust Tight, Water Resistant	Circular - 22.30mm Dia	230 V	24 V	-
M22S-T20SF01-E30-Y SWITCH SELECT 2POS SPST 6A 230V Moujen Datasheet	1,280 Marketplace	20 : $317.20 320 : $4,169.60 Bulk	M22	Bulk	Active	-	6A (AC), 3A (DC)	Panel Mount	SPST	-	-25°C ~ 70°C	Screw Terminal	12 ~ 30 VAC/DC	IP65 - Dust Tight, Water Resistant	Circular - 22.30mm Dia	230 V	24 V	-
M22FP-MSB10-E30-R-<O> FLAT PB-MOM-1A-LED-RED-<O> Moujen Datasheet	1,600 Marketplace	20 : $302.40 400 : $4,892.00 Bulk	M22	Bulk	Active	-	6A (AC), 3A (DC)	Panel Mount, Front	SPST	-	-25°C ~ 70°C	Screw Terminal	12 ~ 30 VAC/DC	IP65 - Dust Tight, Water Resistant	Circular - 22.30mm Dia	230 V	24 V	-
M22FP-ASF10-W-<I> FLAT PB-ALT-1A-WHITE-<I> Moujen Datasheet	1,600 Marketplace	20 : $261.80 400 : $4,080.00 Bulk	M22	Bulk	Active	-	6A (AC), 3A (DC)	Panel Mount, Front	SPST	-	-25°C ~ 70°C	Screw Terminal	-	IP65 - Dust Tight, Water Resistant	Circular - 22.30mm Dia	230 V	24 V	-
M22FP-MSF01-E30-W-<O> FLAT PB-MOM-1B-LED-WHITE-<O> Moujen Datasheet	1,600 Marketplace	20 : $302.40 400 : $4,892.00 Bulk	M22	Bulk	Active	-	6A (AC), 3A (DC)	Panel Mount, Front	SPST	-	-25°C ~ 70°C	Screw Terminal	12 ~ 30 VAC/DC	IP65 - Dust Tight, Water Resistant	Circular - 22.30mm Dia	230 V	24 V	-

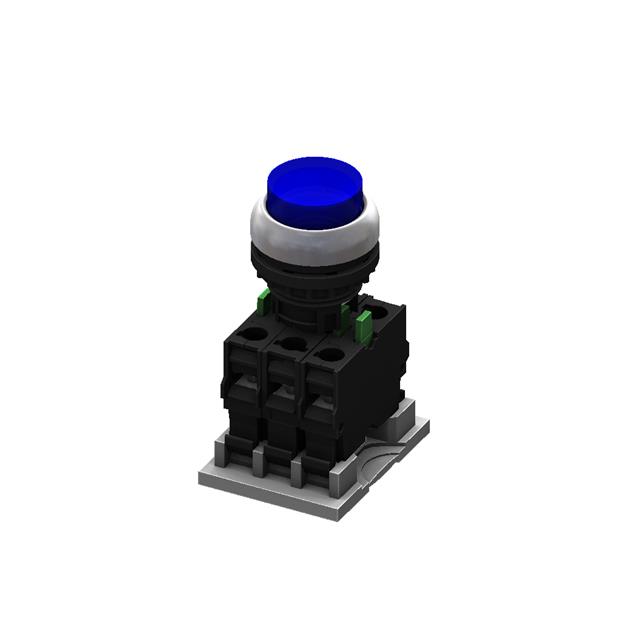

M22XP-MSB20-BL EXT PB-MOM-2A-BLUE Moujen Datasheet	1,280 Marketplace	20 : $289.40 320 : $3,702.40 Bulk	M22	Bulk	Active	-	6A (AC), 3A (DC)	Panel Mount, Front	DPST	-	-25°C ~ 70°C	Screw Terminal	-	IP65 - Dust Tight, Water Resistant	Circular - 22.30mm Dia	230 V	24 V	-
