PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
{{ p.name }}	{{ numberFormat(p.buyQty) }}	{{ priceFormat(p.unitPrice) }}	{{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

Mfr Part #	Quantity	Price	Series	Package	Product Status	Features	Current Rating (Amps)	Mounting Type	Circuit	Switch Function	Operating Temperature	Termination Style	Illumination Voltage (Nominal)	Ingress Protection	Panel Cutout Dimensions	Voltage Rating - AC	Voltage Rating - DC	Reset Operation
TG-20S.F120.36 SW E-STOP TWIST RESET 100MA 42V Davies Molding, LLC. Datasheet	2 In Stock	1 : $382.65 Tray	TG	Tray	Active	Control Box Enclosure	100mA (AC/DC)	Chassis Mount	DPST-NC	On-Off	-	Connector	-	IP65 - Dust Tight, Water Resistant	-	42 V	42 V	Twist

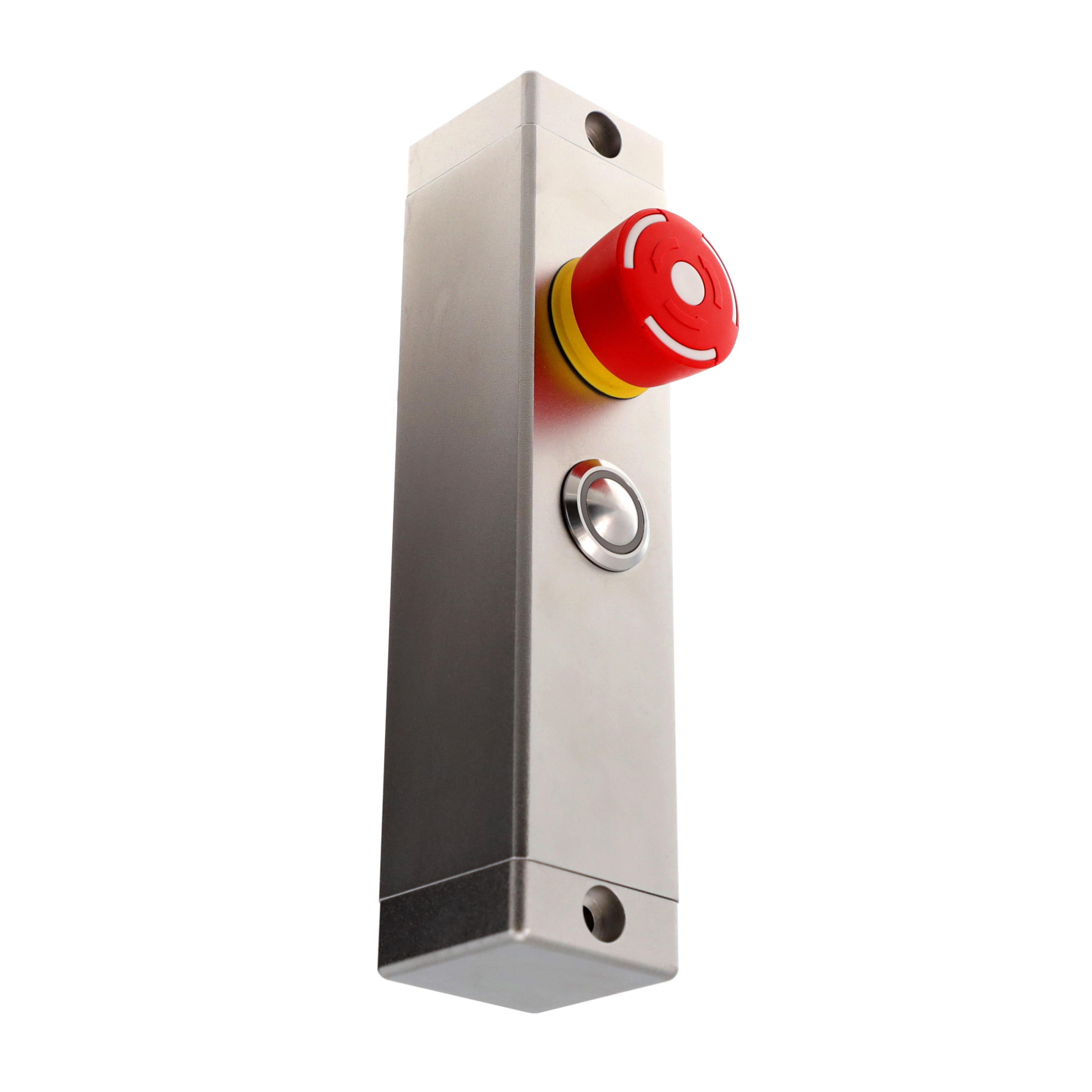

TG-04S.F160.36 SW E-STOP TWIST RESET 100MA 42V Davies Molding, LLC. Datasheet	2 In Stock	1 : $413.65 Tray	TG	Tray	Active	Control Box Enclosure, With Pushbutton Switch	100mA (AC/DC)	Chassis Mount	DPST-NC + SPDT	On-Off, On-Mom	-	Connector	24 VDC	IP65 - Dust Tight, Water Resistant	-	42 V	42 V	Twist

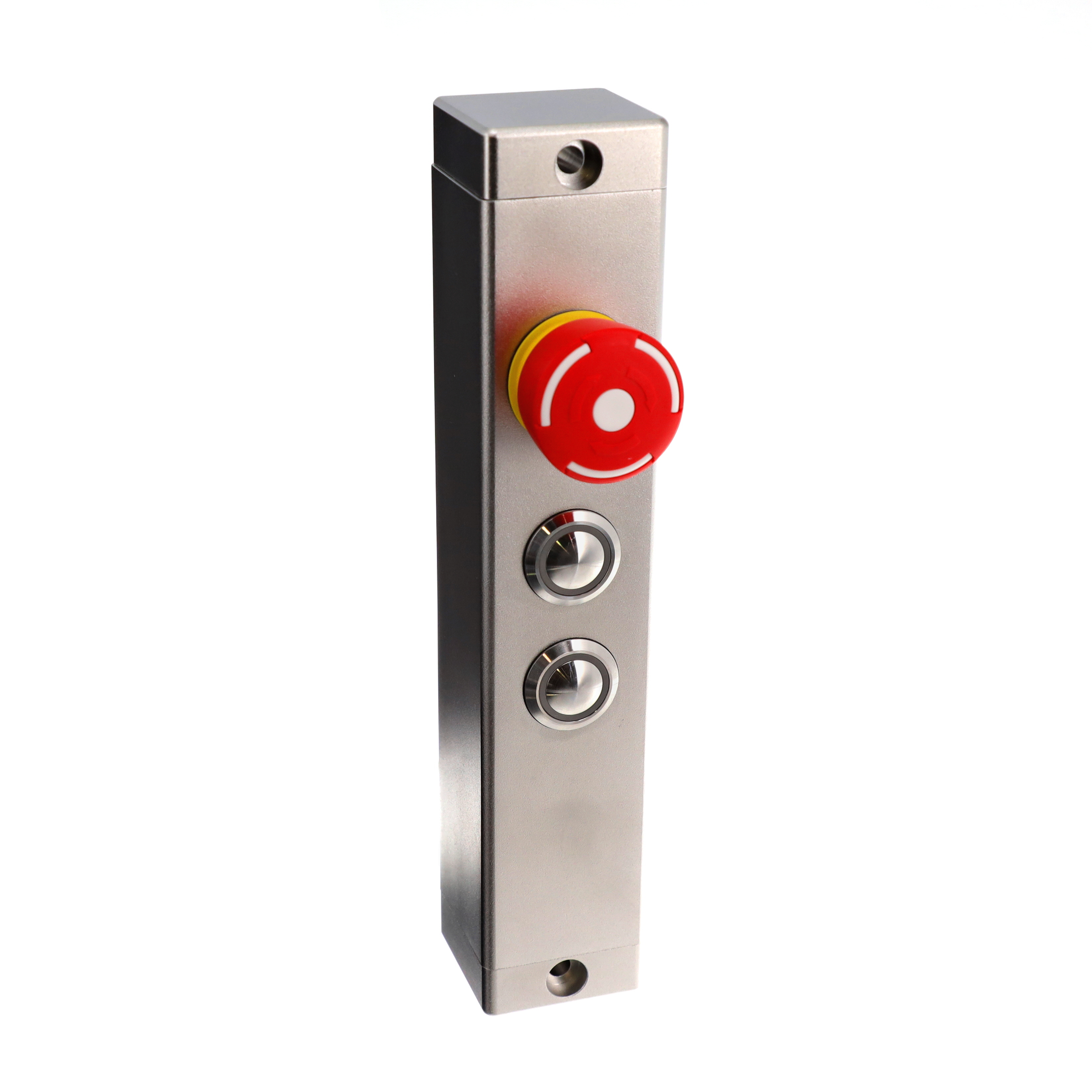

TG-05S.F190.36 SW E-STOP TWIST RESET 100MA 42V Davies Molding, LLC. Datasheet	0 In Stock	1 : $500.62 Tray	TG	Tray	Active	Control Box Enclosure, With Pushbutton Switch	100mA (AC/DC)	Chassis Mount	DPST-NC + SPDT + SPST-NO	On-Off, On-Mom, Off-Mom	-	Connector	24 VDC	IP65 - Dust Tight, Water Resistant	-	42 V	42 V	Twist
TG-05K.F190.36 SW E-STOP TWIST RESET 100MA 42V Davies Molding, LLC. Datasheet	0 In Stock	1 : $490.04 Tray	TG	Tray	Active	Control Box Enclosure, With Pushbutton Switch	100mA (AC/DC)	Chassis Mount	DPST-NC + SPDT + SPST-NO	On-Off, On-Mom, Off-Mom	-	Cable Leads	24 VDC	IP65 - Dust Tight, Water Resistant	-	42 V	42 V	Twist
TG-04S.R160.36 SW E-STOP TWIST RESET 100MA 42V Davies Molding, LLC. Datasheet	0 In Stock	1 : $460.89 Tray	TG	Tray	Active	Control Box Enclosure, With Pushbutton Switch	100mA (AC/DC)	Chassis Mount	DPST-NC + SPDT	On-Off, On-Mom	-	Connector	24 VDC	IP65 - Dust Tight, Water Resistant	-	42 V	42 V	Twist
TG-04K.F160.36 SW E-STOP TWIST RESET 100MA 42V Davies Molding, LLC. Datasheet	0 In Stock	1 : $485.36 Tray	TG	Tray	Active	Control Box Enclosure, With Pushbutton Switch	100mA (AC/DC)	Chassis Mount	DPST-NC + SPDT	On-Off, On-Mom	-	Cable Leads	24 VDC	IP65 - Dust Tight, Water Resistant	-	42 V	42 V	Twist
TG-20K.F120.36 SW E-STOP TWIST RESET 100MA 42V Davies Molding, LLC. Datasheet	0 In Stock	1 : $424.24 Tray	TG	Tray	Active	Control Box Enclosure	100mA (AC/DC)	Chassis Mount	DPST-NC	On-Off	-	Cable Leads	-	IP65 - Dust Tight, Water Resistant	-	42 V	42 V	Twist
TG-20K.R120.36 SW E-STOP TWIST RESET 100MA 42V Davies Molding, LLC. Datasheet	0 In Stock	1 : $417.21 Tray	TG	Tray	Active	Control Box Enclosure	100mA (AC/DC)	Chassis Mount	DPST-NC	On-Off	-	Cable Leads	-	IP65 - Dust Tight, Water Resistant	-	42 V	42 V	Twist
TG-05K.R190.36 SW E-STOP TWIST RESET 100MA 42V Davies Molding, LLC. Datasheet	0 In Stock	1 : $537.48 Tray	TG	Tray	Active	Control Box Enclosure, With Pushbutton Switch	100mA (AC/DC)	Chassis Mount	DPST-NC + SPDT + SPST-NO	On-Off, On-Mom, Off-Mom	-	Cable Leads	24 VDC	IP65 - Dust Tight, Water Resistant	-	42 V	42 V	Twist
TG-05S.R190.36 SW E-STOP TWIST RESET 100MA 42V Davies Molding, LLC. Datasheet	0 In Stock	1 : $519.98 Tray	TG	Tray	Active	Control Box Enclosure, With Pushbutton Switch	100mA (AC/DC)	Chassis Mount	DPST-NC + SPDT + SPST-NO	On-Off, On-Mom, Off-Mom	-	Connector	24 VDC	IP65 - Dust Tight, Water Resistant	-	42 V	42 V	Twist
