Mfr Part #	Quantity	Price	Series	Package	Product Status	Resistance (Ohms)	Tolerance	Features	Package / Case	Mounting Type	Memory Type	Interface	Configuration	Operating Temperature	Number of Taps	Voltage - Supply	Taper	Supplier Device Package	Resistance - Wiper (Ohms) (Typ)	Temperature Coefficient (Typ)	Grade	Number of Circuits	DigiKey Programmable	Qualification
DS1803Z-100+ IC DGTL POT 100KOHM 256TAP 16SO Maxim Integrated / Analog Devices Datasheet	212 In Stock	1 : $9.88 10 : $89.30 50 : $425.50 100 : $739.00 250 : $1,765.00 500 : $3,215.00 1,000 : $5,600.00 Tube		Tube	Active	100k	±20%	Selectable Address	16-SOIC (0.154", 3.90mm Width)	Surface Mount	Volatile	I2C	Potentiometer	-40°C ~ 85°C	256	2.7V ~ 5.5V	Linear	16-SOIC	400	750ppm/°C	-	2	Not Verified	-
DS1803E-100+ IC DGT POT 100KOHM 256TP 14TSSOP Maxim Integrated / Analog Devices Datasheet	45 In Stock	1 : $9.71 10 : $87.70 96 : $696.96 288 : $1,998.72 576 : $3,640.32 1,056 : $5,818.56 Tube		Tube	Active	100k	±20%	Selectable Address	14-TSSOP (0.173", 4.40mm Width)	Surface Mount	Volatile	I2C	Potentiometer	-40°C ~ 85°C	256	2.7V ~ 5.5V	Linear	14-TSSOP	400	750ppm/°C	-	2	Not Verified	-
DS1804-100+ IC DGTL POT 100KOHM 100TAP 8DIP Maxim Integrated / Analog Devices Datasheet	3,715 In Stock	1 : $5.59 10 : $50.20 50 : $237.50 100 : $412.00 250 : $977.50 500 : $1,750.00 1,000 : $2,960.00 2,500 : $7,025.00 Tube		Tube	Active	100k	±20%	-	8-DIP (0.300", 7.62mm)	Through Hole	Non-Volatile	Up/Down (U/D, INC, CS)	Potentiometer	-40°C ~ 85°C	100	2.7V ~ 5.5V	Linear	8-PDIP	400	750ppm/°C	-	1	Not Verified	-

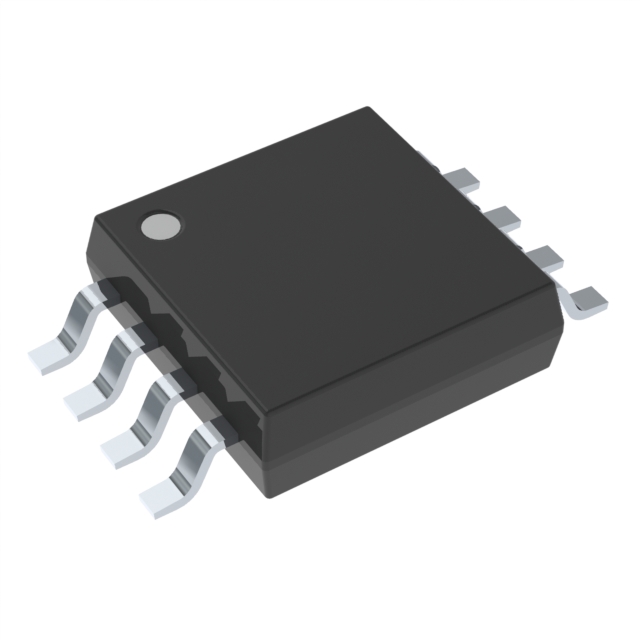

DS1809U-100+ IC DGTL POT 100KOHM 64TAP 8UMAX Maxim Integrated / Analog Devices Datasheet	3,766 In Stock	1 : $4.18 10 : $37.50 50 : $177.50 100 : $307.00 250 : $730.00 500 : $1,390.00 Tube	Dallastat™	Tube	Active	100k	±20%	-	8-TSSOP, 8-MSOP (0.118", 3.00mm Width)	Surface Mount	Non-Volatile	Pushbutton	Potentiometer	-40°C ~ 85°C	64	5V	Linear	8-uMAX/uSOP	400 (Max)	750ppm/°C	-	1	Not Verified	-

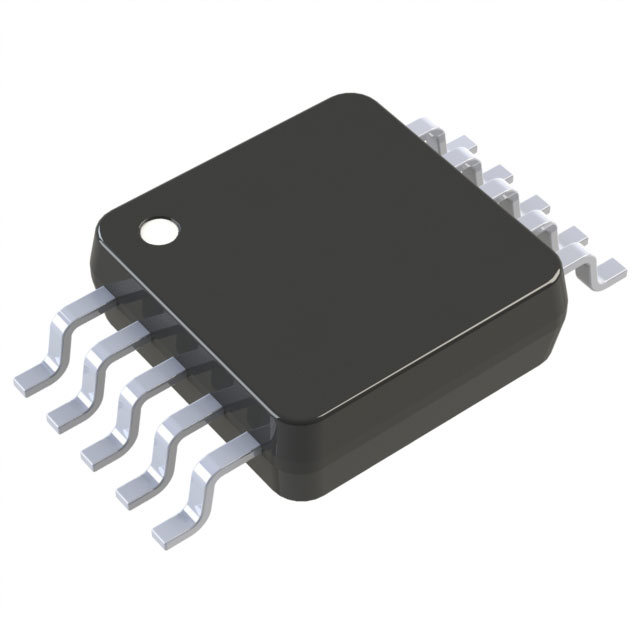

MAX5450EUB+ IC DGTL POT 10KOHM 256TAP 10UMAX Maxim Integrated / Analog Devices Datasheet	138 In Stock	1 : $6.78 10 : $61.20 50 : $292.00 100 : $507.00 250 : $1,210.00 500 : $2,205.00 1,000 : $3,850.00 2,500 : $9,250.00 Tube		Tube	Active	10k	-	-	10-TFSOP, 10-MSOP (0.118", 3.00mm Width)	Surface Mount	Volatile	Up/Down (U/D, INC, CS)	Rheostat	-40°C ~ 85°C	256	2.7V ~ 5.5V	Linear	10-uMAX/uSOP	225	35ppm/°C	-	2	Not Verified	-
MAX5408ETE+ IC DGTL POT 10KOHM 32TAP 16TQFN Maxim Integrated / Analog Devices Datasheet	150 In Stock	1 : $4.50 10 : $40.40 75 : $286.50 150 : $496.50 300 : $942.00 525 : $1,569.75 Tube		Tube	Active	10k	±30%	Mute, Zero-Cross Sense	16-WQFN Exposed Pad	Surface Mount	Volatile	SPI	Potentiometer	-40°C ~ 85°C	32	2.7V ~ 3.6V	Logarithmic	16-TQFN (4x4)	1000	35ppm/°C	-	2	Not Verified	-
MAX5414EUD+ IC DGT POT 50KOHM 256TAP 14TSSOP Maxim Integrated / Analog Devices Datasheet	95 In Stock	1 : $7.04 10 : $63.60 96 : $505.92 288 : $1,448.64 576 : $2,643.84 1,056 : $4,224.00 2,592 : $9,979.20 Tube		Tube	Active	50k	±25%	-	14-TSSOP (0.173", 4.40mm Width)	Surface Mount	Volatile	SPI	Potentiometer	-40°C ~ 85°C	256	2.7V ~ 5.5V	Linear	14-TSSOP	275	35ppm/°C	-	2	Not Verified	-
MAX5478ETE+ IC DGT POT 50KOHM 256TAP 16TQFN Maxim Integrated / Analog Devices Datasheet	683 In Stock	1 : $6.08 10 : $54.90 25 : $131.00 100 : $455.00 300 : $1,302.00 500 : $1,980.00 1,000 : $3,450.00 2,500 : $8,300.00 Tube		Tube	Active	50k	±25%	Selectable Address	16-WFQFN Exposed Pad	Surface Mount	Non-Volatile	I2C	Potentiometer	-40°C ~ 85°C	256	2.7V ~ 5.25V	Linear	16-TQFN (3x3)	325	70ppm/°C	-	2	Not Verified	-
MAX5405EUB+ IC DGT POT 100KOHM 256TAP 10UMAX Maxim Integrated / Analog Devices Datasheet	233 In Stock	1 : $6.95 10 : $62.80 50 : $299.00 100 : $520.00 250 : $1,240.00 500 : $2,260.00 1,000 : $3,940.00 2,500 : $9,475.00 Tube		Tube	Active	100k	±25%	-	10-TFSOP, 10-MSOP (0.118", 3.00mm Width)	Surface Mount	Volatile	SPI	Potentiometer	-40°C ~ 85°C	256	2.7V ~ 5.5V	Linear	10-uMAX/uSOP	275	35ppm/°C	-	2	Not Verified	-
MAX5408EEE+ IC DGTL POT 10KOHM 32TAP 16QSOP Maxim Integrated / Analog Devices Datasheet	19 In Stock	1 : $6.24 10 : $56.00 25 : $132.25 100 : $459.00 300 : $1,305.00 500 : $1,955.00 1,000 : $3,290.00 2,500 : $7,825.00 Tube		Tube	Active	10k	±30%	Mute, Zero-Cross Sense	16-SSOP (0.154", 3.90mm Width)	Surface Mount	Volatile	SPI	Potentiometer	-40°C ~ 85°C	32	2.7V ~ 3.6V	Logarithmic	16-QSOP	1000	35ppm/°C	-	2	Not Verified	-
