Mfr Part #	Quantity	Price	Series	Package	Product Status	Features	Package / Case	Filter Type	Size / Dimension	Mounting Type	Number of Lines	Operating Temperature	Approval Agency	Ratings	Height (Max)	Voltage Rating - AC	Voltage Rating - DC	Current Rating (Max)	DC Resistance (DCR) (Max)	Grade	Inductance @ Frequency	Impedance @ Frequency	Qualification

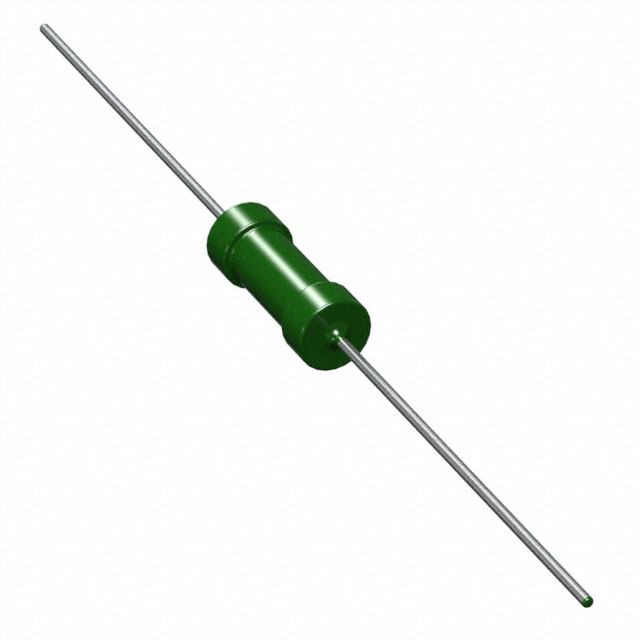

ER58R22JT RES 0.22 OHM 5% 7W AXIAL TE Connectivity Passive Product Datasheet	1,818 In Stock	250 : $250.00 500 : $415.00 750 : $585.00 1,250 : $900.00 2,500 : $1,775.00 6,250 : $4,375.00 12,500 : $8,625.00 Tape & Box (TB)	ER, CGS	Cut Tape (CT) Tape & Box (TB)	Active	-	Axial	-	0.315" Dia x 0.874" L (8.00mm x 22.20mm)	-	-	-55°C ~ 200°C	-	-	-	-	-	-	-	-	-	-	-
ER58120RJT RES 120 OHM 5% 7W AXIAL TE Connectivity Passive Product Datasheet	0 In Stock	2,000 : $980.00 Tape & Box (TB)	ER, CGS	Tape & Box (TB)	Active	-	Axial	-	0.315" Dia x 0.874" L (8.00mm x 22.20mm)	-	-	-55°C ~ 200°C	-	-	-	-	-	-	-	-	-	-	-
ER5815RJT RES 15 OHM 5% 7W AXIAL TE Connectivity Passive Product Datasheet	0 In Stock	2,000 : $980.00 Tape & Box (TB)	ER, CGS	Tape & Box (TB)	Active	-	Axial	-	0.315" Dia x 0.874" L (8.00mm x 22.20mm)	-	-	-55°C ~ 200°C	-	-	-	-	-	-	-	-	-	-	-

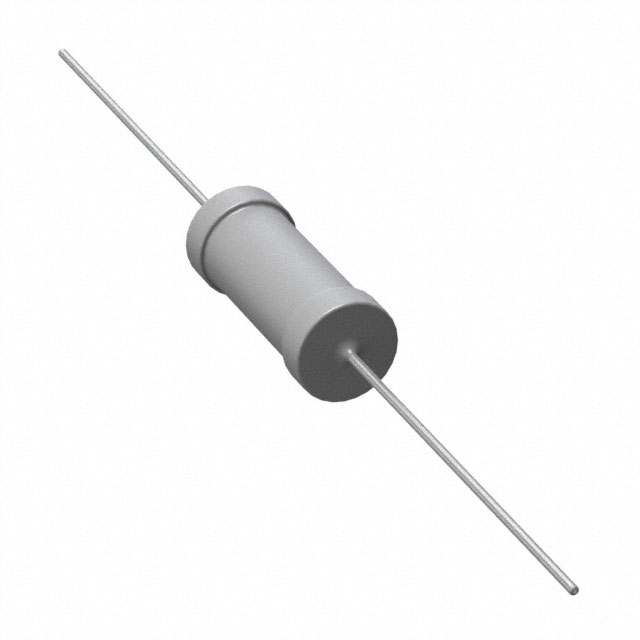

C3A8K2JT RES 8.2K OHM 5% 3W AXIAL TE Connectivity Passive Product Datasheet	0 In Stock	5,000 : $5,100.00 Tape & Box (TB)	C, CGS	Tape & Box (TB)	Active	-	Axial	-	0.224" Dia x 0.512" L (5.70mm x 13.00mm)	-	-	-55°C ~ 200°C	-	-	-	-	-	-	-	-	-	-	-
C3AR22JT RES 0.22 OHM 5% 3W AXIAL TE Connectivity Passive Product Datasheet	0 In Stock	5,000 : $3,050.00 Tape & Box (TB)	C, CGS	Tape & Box (TB)	Active	-	Axial	-	0.224" Dia x 0.512" L (5.70mm x 13.00mm)	-	-	-55°C ~ 200°C	-	-	-	-	-	-	-	-	-	-	-
C3A3K3JT RES 3.3K OHM 5% 3W AXIAL TE Connectivity Passive Product Datasheet	0 In Stock	5,000 : $4,900.00 Tape & Box (TB)	C, CGS	Tape & Box (TB)	Active	-	Axial	-	0.224" Dia x 0.512" L (5.70mm x 13.00mm)	-	-	-55°C ~ 200°C	-	-	-	-	-	-	-	-	-	-	-
C3A5K6JT RES 5.6K OHM 5% 3W AXIAL TE Connectivity Passive Product Datasheet	0 In Stock	5,000 : $4,900.00 Tape & Box (TB)	C, CGS	Tape & Box (TB)	Active	-	Axial	-	0.224" Dia x 0.512" L (5.70mm x 13.00mm)	-	-	-55°C ~ 200°C	-	-	-	-	-	-	-	-	-	-	-

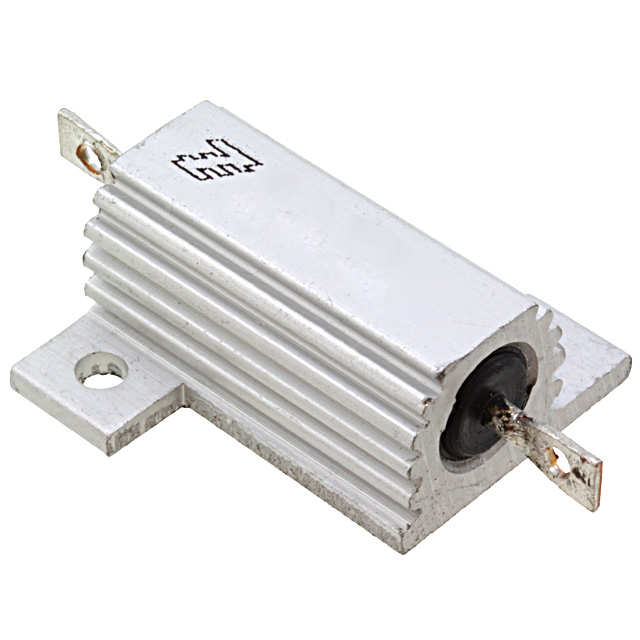

THS156K8J RES CHAS MNT 6.8K OHM 5% 15W TE Connectivity Passive Product Datasheet	27 In Stock	1 : $3.44 10 : $29.10 25 : $72.00 40 : $105.60 100 : $215.00 300 : $588.00 500 : $890.00 1,000 : $1,560.00 4,900 : $7,448.00 Tray	THS, CGS	Tray	Active	-	Axial, Box	-	0.827" L x 0.827" W (21.00mm x 21.00mm)	-	-	-55°C ~ 200°C	-	-	-	-	-	-	-	-	-	-	-
THS251R0J RES CHAS MNT 1 OHM 5% 25W TE Connectivity Passive Product Datasheet	377 In Stock	1 : $2.89 10 : $24.80 25 : $59.75 40 : $88.80 100 : $196.00 Tray	THS, CGS	Tray	Active	-	Axial, Box	-	1.142" L x 1.102" W (29.00mm x 28.00mm)	-	-	-55°C ~ 200°C	-	-	-	-	-	-	-	-	-	-	-
THS2547RJ RES CHAS MNT 47 OHM 5% 25W TE Connectivity Passive Product Datasheet	71 In Stock	1 : $2.89 10 : $24.80 25 : $59.75 40 : $88.80 100 : $196.00 Tray	THS, CGS	Tray	Active	-	Axial, Box	-	1.142" L x 1.102" W (29.00mm x 28.00mm)	-	-	-55°C ~ 200°C	-	-	-	-	-	-	-	-	-	-	-
