Mfr Part #	Quantity	Price	Series	Package	Product Status	Features	Connector Type	Mounting Type	Shielding	Number of Positions	Type	Orientation	Shell Size - Insert	Operating Temperature	Contact Type	Fastening Type	Includes	Ingress Protection	Contact Size	Material Flammability Rating	Mounting Feature	Shell Size, MIL	Note	Housing Color	Grade	Contact Shape	Shell Material	Shell Finish	Insert Material	Primary Material	Qualification

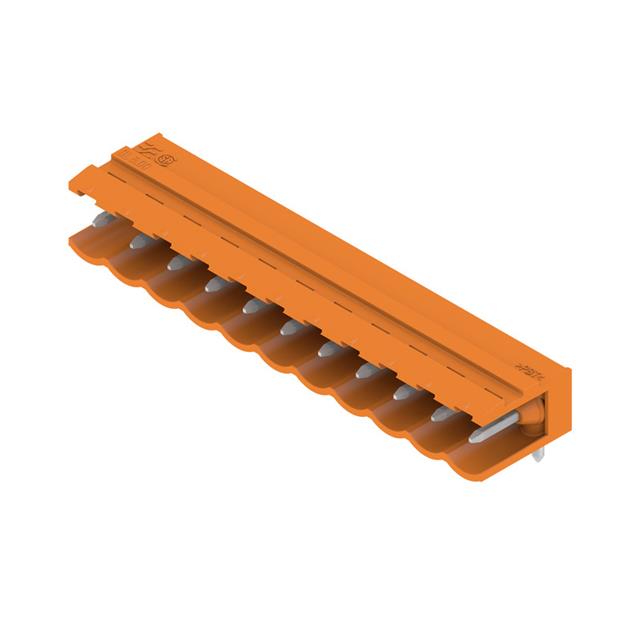

1571220000 TERM BLOCK HDR 11POS 90DEG 5MM Weidmuller Datasheet	0 In Stock	50 : $141.50 Bulk	Omnimate SL	Bulk	Active	-	-	Through Hole	-	11	Header, Male Pins, Shrouded (2 Side)	-	-	-50°C ~ 100°C	-	-	-	IP20	-	UL94 V-0	-	-	-	-	-	-	-	-	-	-	-
1580920000 TERM BLOCK HDR 8POS 90DEG 5MM Weidmuller Datasheet	0 In Stock	50 : $103.00 Bulk	Omnimate SL	Bulk	Active	-	-	Through Hole	-	8	Header, Male Pins, Shrouded (4 Side)	-	-	-50°C ~ 100°C	-	-	-	IP20	-	UL94 V-0	-	-	-	-	-	-	-	-	-	-	-

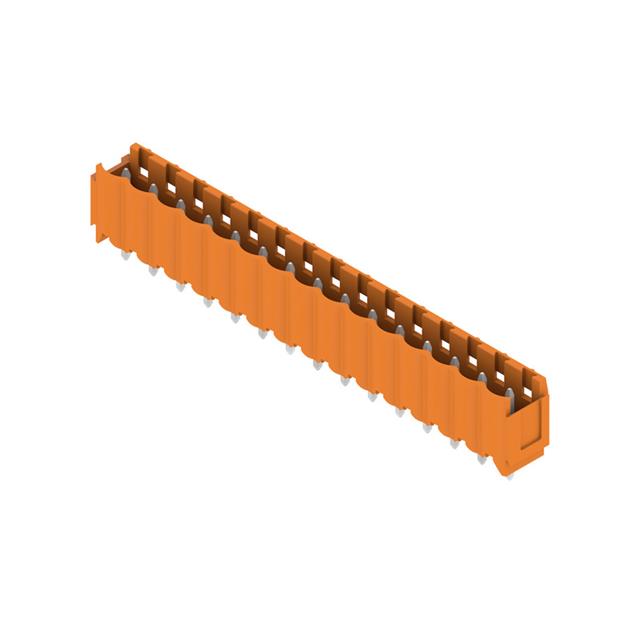

1581910000 TERM BLOCK HDR 15POS VERT 5MM Weidmuller Datasheet	0 In Stock	50 : $193.00 Bulk	Omnimate SL	Bulk	Active	-	-	Through Hole	-	15	Header, Male Pins, Shrouded (4 Side)	-	-	-50°C ~ 100°C	-	-	-	IP20	-	UL94 V-0	-	-	-	-	-	-	-	-	-	-	-
1630550000 TERM BLOCK HDR 9POS 135DEG 5MM Weidmuller Datasheet	0 In Stock	50 : $127.00 Bulk	Omnimate SL	Bulk	Active	-	-	Through Hole	-	9	Header, Male Pins, Shrouded (4 Side)	-	-	-50°C ~ 100°C	-	-	-	-	-	UL94 V-0	-	-	-	-	-	-	-	-	-	-	-
1605830000 CONN HDR 5.08MM 9POS 135 ORG Weidmuller Datasheet	0 In Stock	Obsolete	Omnimate SL	Bulk	Obsolete	-	-	Through Hole	-	9	Header, Male Pins, Shrouded (2 Side)	-	-	-20°C ~ 100°C	-	-	-	-	-	UL94 V-0	-	-	-	-	-	-	-	-	-	-	-

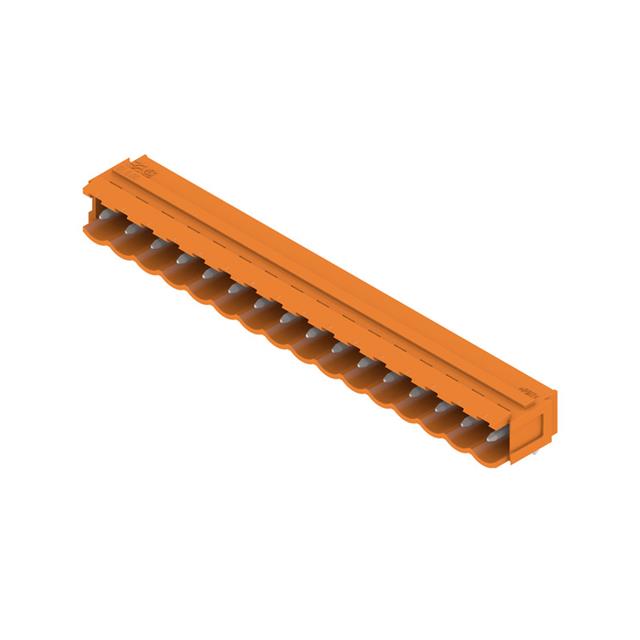

1581000000 TERM BLOCK HDR 16POS 90DEG 5MM Weidmuller Datasheet	0 In Stock	50 : $205.50 Bulk	Omnimate SL	Bulk	Active	-	-	Through Hole	-	16	Header, Male Pins, Shrouded (4 Side)	-	-	-50°C ~ 100°C	-	-	-	IP20	-	UL94 V-0	-	-	-	-	-	-	-	-	-	-	-
1571340000 TERM BLOCK HDR 24POS 90DEG 5MM Weidmuller Datasheet	14 In Stock	20 : $137.40 Bulk	Omnimate SL	Bulk	Active	-	-	Through Hole	-	24	Header, Male Pins, Shrouded (2 Side)	-	-	-50°C ~ 100°C	-	-	-	IP20	-	UL94 V-0	-	-	-	-	-	-	-	-	-	-	-
1581070000 TERM BLOCK HDR 23POS 90DEG 5MM Weidmuller Datasheet	0 In Stock	20 : $131.80 Bulk	Omnimate SL	Bulk	Active	-	-	Through Hole	-	23	Header, Male Pins, Shrouded (4 Side)	-	-	-50°C ~ 100°C	-	-	-	IP20	-	UL94 V-0	-	-	-	-	-	-	-	-	-	-	-
1630690000 TERM BLOCK HDR 23POS 135DEG 5MM Weidmuller Datasheet	0 In Stock	20 : $145.00 Bulk	Omnimate SL	Bulk	Active	-	-	Through Hole	-	23	Header, Male Pins, Shrouded (4 Side)	-	-	-50°C ~ 100°C	-	-	-	-	-	UL94 V-0	-	-	-	-	-	-	-	-	-	-	-
1581360000 TERM BLOCK HDR 6POS VERT 5MM Weidmuller Datasheet	27 In Stock	1 : $2.72 10 : $20.60 25 : $47.75 50 : $86.00 100 : $168.00 250 : $367.50 500 : $670.00 1,000 : $1,220.00 5,000 : $5,350.00 Bulk	Omnimate SL	Bulk	Active	-	-	Through Hole	-	6	Header, Male Pins, Shrouded (2 Side)	-	-	-50°C ~ 100°C	-	-	-	IP20	-	UL94 V-0	-	-	-	-	-	-	-	-	-	-	-
